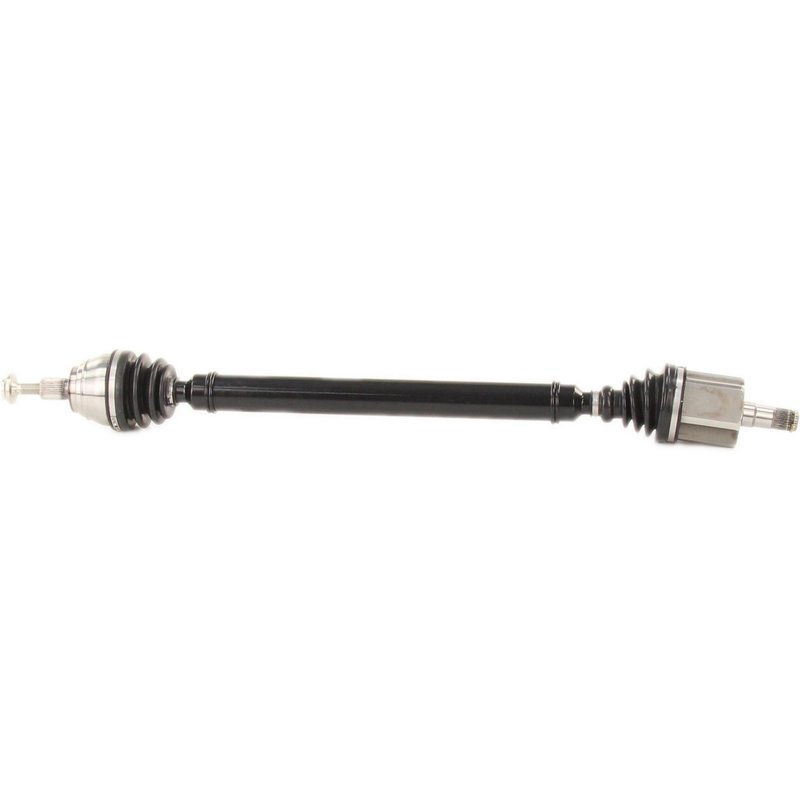

TrakMotive VW-8169 CV Axle Shaft - Front Right

Overview of TrakMotive VW-8169 CV Axle Shaft

The TrakMotive AAR CV Axle Shaft VW-8169 is designed specifically for Volkswagen Beetle and Passat models. This new CV axle shaft offers reliable driveline performance with precise fitment and durable construction.

• Compatible with Volkswagen Beetle and Passat
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Axle bolt hex size: 17 mm, length: 85 mm, thread size: M16*1.5
• Inboard joint type: Male with 26 splines
• Outboard joint type: Audi style spline bolt with 36 splines
• Overall compressed length: 896 mm (35.28 in)
• Single bolt hole design for both inboard and outboard joints

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering precise driveline components engineered for specific vehicle applications. This product line emphasizes exact spline counts and connection styles to ensure proper fit and function. The VW-8169 model exemplifies this approach by matching Volkswagen Beetle and Passat specifications, including spline counts and bolt sizes, to maintain OEM standards.

Detailed Product Description

The VW-8169 CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint uses a male type with 26 splines, while the outboard joint employs an Audi style spline bolt with 36 splines, ensuring secure and precise engagement. The axle bolts have a hex size of 17 mm, a length of 85 mm, and a thread size of M16*1.5, designed to match factory specifications. This CV axle shaft does not include an ABS tone ring or axle nut, so those components must be sourced separately if required. The overall compressed length of 896 mm (35.28 inches) fits the designated Volkswagen models accurately.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV axle shafts on Volkswagen Beetle and Passat
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks from torn or degraded boots
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

• Verify compatibility with your specific Volkswagen Beetle or Passat model year before installation
• Ensure axle bolt specifications (17 mm hex, 85 mm length, M16*1.5 thread) match factory hardware
• Use proper torque settings for axle bolts to avoid damage or loosening
• Inspect surrounding components such as wheel bearings and seals during installation
• Replace axle nuts and any missing hardware as this product does not include them

Quality Assurance and Warranty

The TrakMotive VW-8169 CV axle shaft is a new component manufactured to meet or exceed OEM standards for Volkswagen Beetle and Passat vehicles. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy. It is recommended to consult the product documentation or supplier for warranty information.
