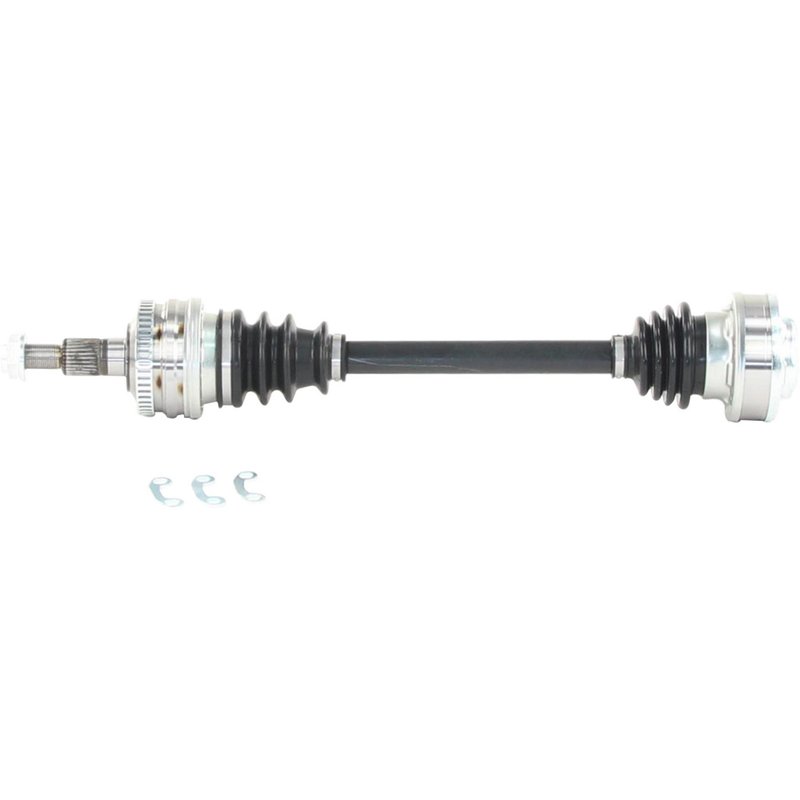

TrakMotive VW-86001 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche Boxster

TrakMotive VW-86001 is a rear CV axle shaft for 1997-2002 Porsche Boxster applications. It is built as a premium-grade replacement with a bolt-on inboard joint, 28 outboard splines, and ABS tone ring details that support the correct driveline and wheel speed sensor setup.

This CV axle shaft is engineered for rear Porsche Boxster service and references OE part number 98633202414. TrakMotive VW-86001 is part of the CV Axle Shaft line and is backed by the brand’s limited lifetime warranty.

Key Features

• Fits 1997-2002 Porsche Boxster, rear
• Premium-grade CV axle shaft for driveline replacement
• Bolt-on inboard joint with 6-bolt pattern
• 28 outboard splines for proper hub engagement
• ABS ring tooth count: 48 with window-style ring
• ABS tone ring included
• Neoprene boot material on inboard and outboard joints
• Axle nut included with M22x1.5 thread, 32 mm hex/socket size
• Overall compressed length: 564 mm; extended length: 630 mm

Product Details

TrakMotive VW-86001 is a rear CV axle shaft for Porsche Boxster models from 1997 through 2002. It uses a conventional outboard joint, a spline-style shaft connection, and a bolt-on inboard connection to match the original driveline layout. The axle includes a 48-tooth ABS window ring and tone ring, helping maintain the correct wheel speed signal setup on equipped vehicles. For buyers searching for a rear Porsche Boxster CV axle shaft, this part number provides a direct replacement option with the dimensions and connection styles needed for service work.

This part cross-references OE number 98633202414 for the same application.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration under acceleration caused by axle wear or imbalance
• Grease leakage from damaged CV boots
• ABS warning concerns related to a damaged tone ring or sensor signal path
• Excessive driveline play from a fatigued rear axle assembly

Installation Notes

Confirm rear position, spline count, axle nut thread size, and ABS ring configuration before installation. The axle nut uses a 32 mm socket size and M22x1.5 thread. Inspect hub, flange, and mounting surfaces for wear, and replace any damaged fasteners or hardware that do not meet service specifications. Torque fasteners to the vehicle manufacturer’s published values.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a premium replacement part and states ISO 9001:2008 and TS 16949:2009 certification. The part is covered by a limited lifetime warranty.
