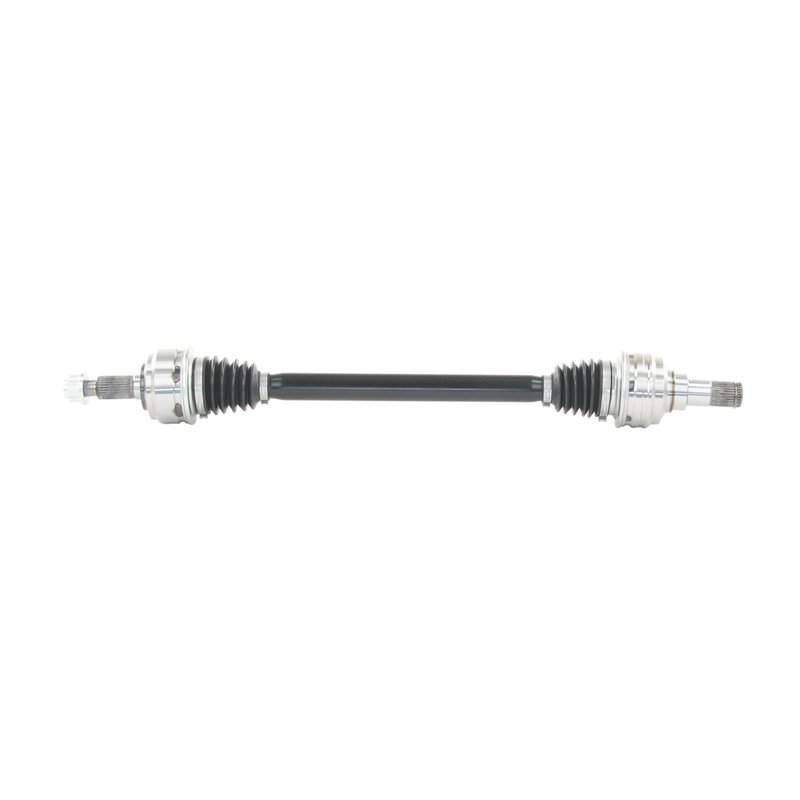

TrakMotive VW-86005 CV Axle Shaft - Rear Right

Rear Right CV Axle Shaft for Porsche Cayenne

TrakMotive VW-86005 is a premium CV axle shaft for the rear right position on select 2011-2018 Porsche Cayenne models. It is built as an OEM-style axle to help maintain original ride quality while restoring driveline performance.

Compatible with 2011-2018 Porsche Cayenne, rear right, this TrakMotive CV axle shaft is engineered for direct-fit replacement service. The VW-86005 part number is a practical match for drivers searching for a Porsche Cayenne rear right CV axle shaft that follows OE-style dimensions and joint design.

Key Features

• Premium-grade CV axle shaft for driveline and axle service
• Fits 2011-2018 Porsche Cayenne, rear right
• OEM-style axle design to retain original ride quality
• Overall compressed length: 843 mm (33.19 in)
• Inboard joint type: male with 32 splines
• Outboard joint type: conventional with 30 splines
• Thermoplastic boot material on inboard and outboard joints
• No ABS tone ring included; ABS ring tooth count: 0
• Axle nut thread size: M24x1.5; hex/socket size: 32 mm

Product Details

TrakMotive VW-86005 is part of the CV Axle Shaft line and is built for rear right driveline replacement on the Porsche Cayenne. The axle uses a male inboard joint, a conventional outboard joint, and OE-style spline counts to support proper fitment and drivetrain engagement. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Applications

• Clicking or popping from the rear axle area during turns
• Vibration or shudder under acceleration
• Boot damage that has led to grease loss
• Worn CV joints causing driveline noise
• Restoring rear axle function on a Porsche Cayenne

Installation Notes

Verify rear right fitment before ordering and confirm axle nut thread size, spline count, and overall length against the original part. This axle does not include an axle nut, so reuse or replacement should be planned separately based on the vehicle service procedure. ABS axles fit non-ABS applications unless otherwise noted, and this unit is listed without an ABS tone ring.

Quality Assurance

TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and consistent product quality for the VW-86005 CV axle shaft.
