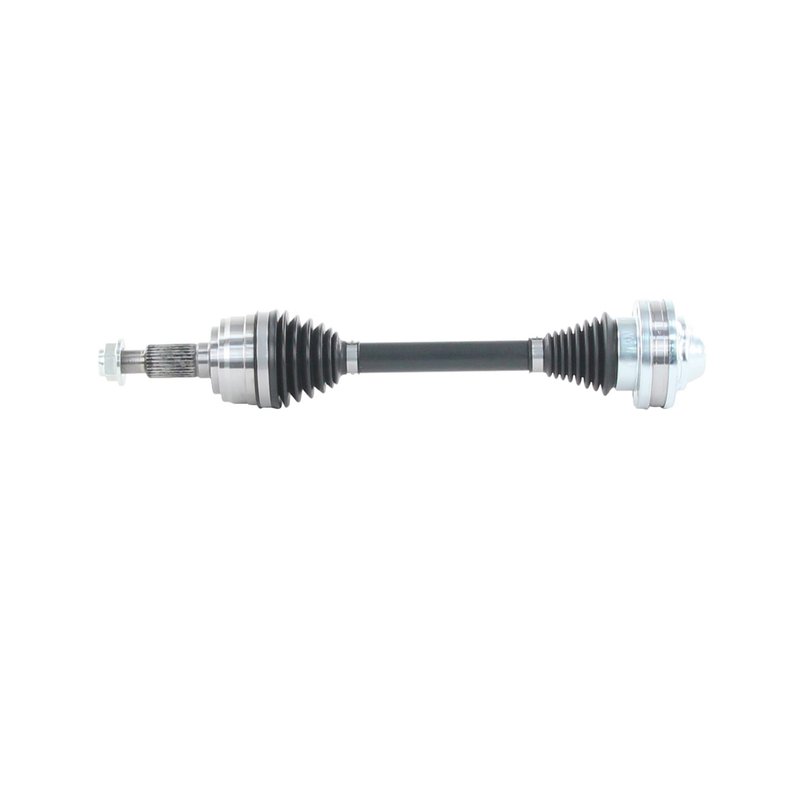

TrakMotive VW-86006 CV Axle Shaft - Front

Front CV Axle Shaft for Porsche Cayenne

TrakMotive VW-86006 is a front CV axle shaft for 2015-2018 Porsche Cayenne models with standard duty replacement needs. It is built as a premium driveline component with thermoplastic boots, a 30-spline outboard joint, and a bolt-on inboard joint for a direct-fit service application.

For shoppers searching for a Porsche Cayenne front CV axle shaft, TrakMotive VW-86006 provides a fitment-specific replacement for the 2015-2018 Porsche Cayenne, front. The part number VW-86006 is also useful when cross-checking driveline listings and catalog references.

Key Features

• Fits 2015-2018 Porsche Cayenne, front
• Premium-grade CV axle shaft for driveline service
• Outboard joint uses a conventional design with 30 splines
• Inboard joint uses a 6-bolt bolt-on design
• Thermoplastic boot material on both joints
• Axle nut hex size: 32 mm
• Overall compressed length: 535 mm (21.06 in)
• Overall extended length: 580 mm (22.81 in)
• No ABS tone ring included; ABS ring tooth count: 0

Product Details

TrakMotive VW-86006 is part of the CV Axle Shaft line and is engineered for front axle replacement on the Porsche Cayenne. The axle measures 535 mm compressed and 580 mm extended, with a 28 mm axle nut height and a 32 mm hex/socket size. It is listed as a standard duty replacement for the 2015-2018 Porsche Cayenne, front, and is backed by TrakMotive’s limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Clicking or popping during turns
• Vibration from the front driveline
• Boot wear or grease leakage at the CV joint
• Excessive play in the axle assembly
• Noise under acceleration or load transfer

Installation Notes

Verify front fitment by year and model before ordering. Confirm the axle nut hex size is 32 mm and check the vehicle’s ABS configuration, since this axle does not include an ABS tone ring. Inspect mating surfaces, seals, and hub components during installation, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

TrakMotive VW-86006 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and includes a limited lifetime warranty.
