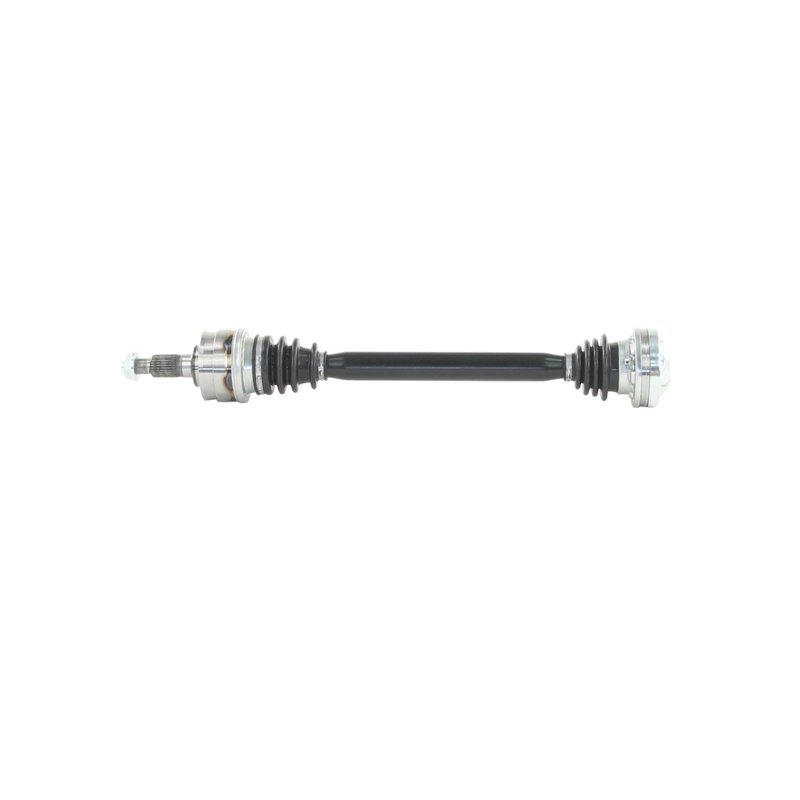

TrakMotive VW-86008 CV Axle Shaft - Rear Left
| Brand | TrakMotive VW-86008 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.88 |
| Overall Compressed Length (mm) | 657 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 7 vehicles |
Bolt-on design. Simplifies installation with a secure inboard joint connection.
Neoprene boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO and TS certified company.
Cross-references TrakMotive VW-86008 for the same application. See all 1.
CV Axle Shaft for Porsche Rear Left
TrakMotive VW-86008 is a premium CV axle shaft for rear left applications on select Porsche Boxster and Cayman models. It is built as an OEM-style axle to help maintain original ride quality while matching the fitment and joint design needed for the application.
Key Features
- Premium-grade CV axle shaft for driveline service
- Rear left position
- Overall compressed length: 657 mm (25.88 in.)
- Outboard joint: conventional design with 28 splines
- Inboard joint: bolt-on design with 6 bolt holes
- Neoprene boot material on both inboard and outboard joints
- Axle nut thread size: M22x1.5
- Axle nut hex/socket size: 32 mm
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft is engineered for 2013-2016 Porsche Boxster, rear left, and 2014-2016 Porsche Cayman, rear left. The VW-86008 part number is a direct-reference driveline component for owners replacing a worn or noisy axle while keeping the original axle geometry and ride characteristics in mind. TrakMotive identifies this as an OEM-style axle to retain original ride quality, and the design uses neoprene boots plus a bolt-on inboard joint for application-specific fitment.
TrakMotive VW-86008 is part of the CV Axle Shaft line and is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Can Help Resolve
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged axle boots
- Excessive driveline play at the rear left corner
- Noise caused by a fatigued axle shaft assembly
Installation Notes
Verify axle nut thread size, hex size, and overall compressed length before installation. Confirm rear left placement and match the outboard spline count and inboard bolt-hole configuration to the original axle. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. Manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification for process control and product consistency.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Porsche | Boxster | Black Edition | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | Porsche | Cayman | Black Edition | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | Porsche | Boxster | Base | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | Porsche | Cayman | Base | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | Porsche | Boxster | Base | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | Porsche | Cayman | Base | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | Porsche | Boxster | Base | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
