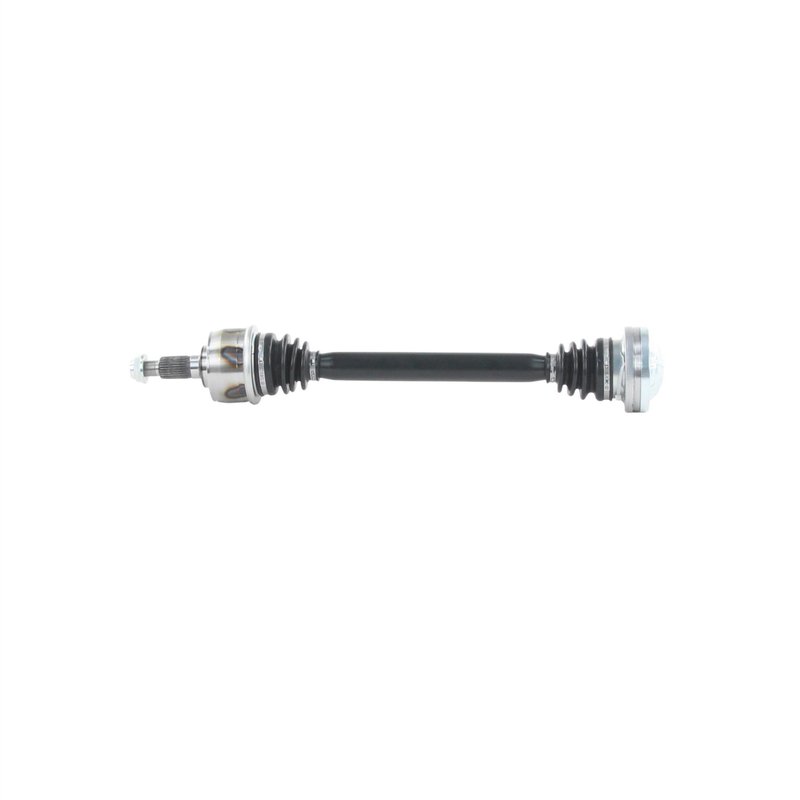

TrakMotive VW-86009 CV Axle Shaft - Rear Left

TrakMotive CV Axle Shaft VW-86009

TrakMotive VW-86009 is a rear left CV axle shaft for select Porsche applications, built for OEM-style driveline performance and original ride quality. It is engineered for the 2013-2016 Porsche Boxster, 2014-2016 Porsche Cayman, and 2017-2019 Porsche 718 Boxster and 718 Cayman rear left positions.

Key Features

• Premium-grade CV axle shaft for driveline service and replacement
• Rear left fitment for select Porsche Boxster, Cayman, 718 Boxster, and 718 Cayman models
• Overall compressed length: 658 mm (25.88 in)
• Inboard joint type: bolt-on with 6 inboard joint bolt holes
• Outboard joint type: conventional with 28 outboard splines
• Neoprene boot material on both inboard and outboard joints
• Axle nut thread size: M22x1.5; hex/socket size: 32 mm
• No ABS tone ring included; ABS ring tooth count: 0

Detailed Description

This TrakMotive CV axle shaft is built as an OEM-style replacement for rear left driveline service on Porsche mid-engine platforms. The VW-86009 part number is listed for 2013-2016 Porsche Boxster, 2014-2016 Porsche Cayman, and 2017-2019 Porsche 718 Boxster and 718 Cayman applications, making it a direct-match option for owners searching for a Porsche Boxster rear left CV axle shaft or Porsche Cayman rear left axle replacement. TrakMotive positions this CV axle shaft as a premium driveline component, with neoprene boot construction and a bolt-on inboard joint to support proper fit and function.

TrakMotive’s CV axle shaft line is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices, and the brand states a limited lifetime warranty for this part. VW-86009 cross-references TrakMotive VW-86009 for the same application.

Common Problems This Part Addresses

• Clicking or popping from a worn CV joint during acceleration or turning
• Vibration or shudder from a damaged axle shaft
• Torn or deteriorated axle boots that expose the joint to contamination
• Excessive driveline play from a worn rear left axle assembly
• Noise or roughness from a failing OEM-style CV axle on Porsche Boxster or Cayman models

Installation Notes and Tips

Verify rear left position, axle length, spline count, and axle nut specifications before installation. This axle uses a 32 mm axle nut socket size and M22x1.5 thread size, and the axle nut is not included. ABS axles fit non-ABS applications unless otherwise noted; this listing shows no ABS tone ring included. Confirm the vehicle’s original configuration against the fitment data for 2013-2016 Porsche Boxster, 2014-2016 Porsche Cayman, and 2017-2019 Porsche 718 Boxster and 718 Cayman rear left applications.

Quality Assurance

TrakMotive states that this CV axle shaft is manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems. The part is covered by a limited lifetime warranty.
