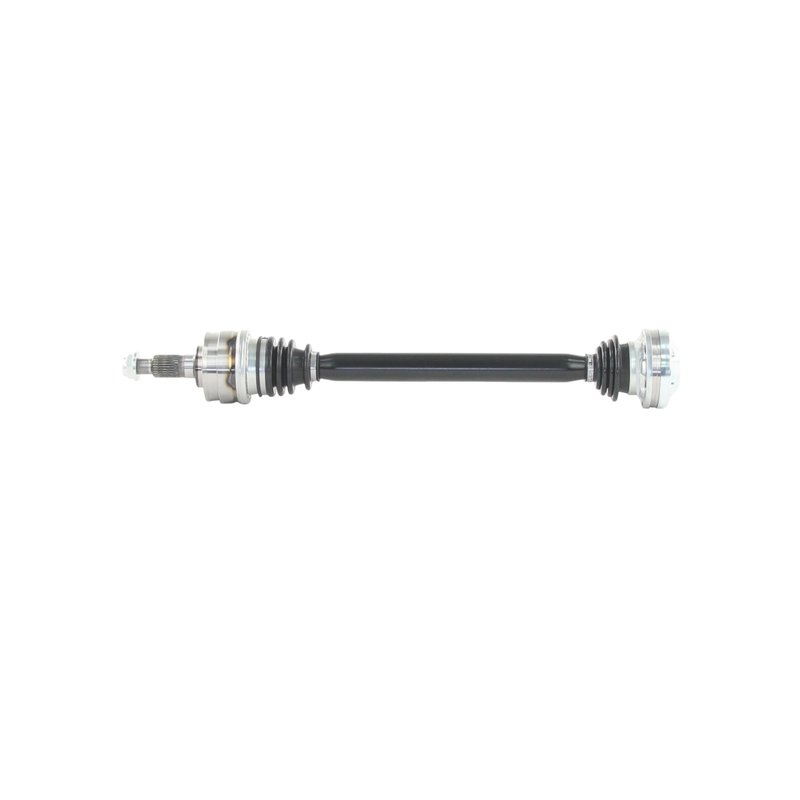

TrakMotive VW-86010 CV Axle Shaft - Rear Right

CV Axle Shaft for Porsche Rear Right

TrakMotive VW-86010 is a premium CV axle shaft for the rear right position on select Porsche Boxster and Cayman models. It is built to match OEM-style ride quality and driveline response for 2013-2016 Porsche Boxster and 2014-2016 Porsche Cayman applications.

Key Features

• Premium-grade CV axle shaft for driveline repair
• Rear right application
• OEM-style axle to help retain original ride quality
• Inboard joint with 6-bolt bolt-on design
• Conventional outboard joint with 28 outboard splines
• Neoprene boot material at both joints
• ABS tone ring not included; ABS ring tooth count is 0
• Overall compressed length: 699 mm (27.5 in)
• Axle nut thread size: M22x1.5; hex size: 32 mm

Product Details

TrakMotive VW-86010 is a CV axle shaft for Porsche Boxster and Porsche Cayman rear right driveline service. The axle uses a bolt-on inboard joint with six bolt holes, a conventional outboard joint, and neoprene boot construction to support consistent articulation at the suspension and transaxle connection points. This part number, VW-86010, is intended for 2013-2016 Porsche Boxster and 2014-2016 Porsche Cayman rear right applications where an OEM-style axle is required to maintain original ride quality.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. For buyers searching for a Porsche Boxster rear right CV axle shaft or Porsche Cayman rear right axle replacement, VW-86010 provides the fitment and construction details needed for a targeted repair.

This part cross-references no additional part numbers beyond TrakMotive VW-86010 for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn CV joint during turns
• Vibration or shudder from a damaged axle shaft
• Torn axle boots that allow grease loss and contamination
• Excessive driveline play at the rear right axle location
• Noise caused by worn splines or joint wear in the axle assembly

Installation Notes and Tips

Verify rear right fitment by year, model, and axle configuration before installation. Confirm axle nut thread size M22x1.5 and 32 mm hex requirements during service. Inspect mating surfaces, seals, and hub components for wear before installing the new axle shaft. Because this application does not include an ABS tone ring, confirm the vehicle’s original axle setup matches the listed non-ABS style details.

Quality Assurance

TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing and quality control.
