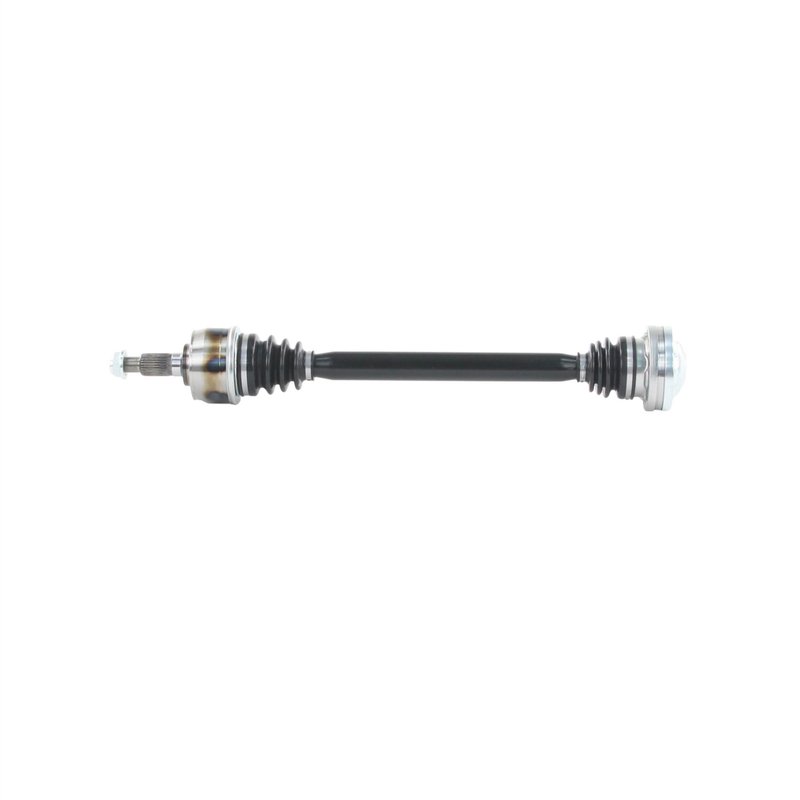

TrakMotive VW-86011 CV Axle Shaft - Rear Right

OEM-Style Rear Right CV Axle Shaft

TrakMotive VW-86011 is a premium CV axle shaft for the rear right position on select Porsche applications. It is built for 2013-2016 Porsche Boxster, 2014-2016 Porsche Cayman, and 2017-2019 Porsche 718 Cayman models, with an OEM-style design to help retain original ride quality.

Key Features

• Premium-grade CV axle shaft for driveline service
• Rear right fitment for select Porsche Boxster, Cayman, and 718 Cayman models
• Overall compressed length: 700 mm (27.56 in.)
• Outboard joint: conventional design with 28 splines
• Inboard joint: bolt-on design with 6 inboard joint bolt holes
• Neoprene boot material at both inboard and outboard joints
• ABS tone ring not included; ABS ring tooth count: 0
• Axle nut thread size: M22x1.5; hex size: 32 mm

Product Details

TrakMotive VW-86011 is a CV axle shaft engineered for rear right driveline service on Porsche Boxster, Cayman, and 718 Cayman platforms. The axle uses a bolt-on inboard joint and a conventional outboard joint, with neoprene boots selected for joint protection in everyday road use. This part number, VW-86011, is a direct reference for shoppers searching for a rear right Porsche Boxster CV axle shaft, Porsche Cayman rear axle replacement, or a Porsche 718 Cayman CV axle shaft that matches OEM-style ride characteristics.

TrakMotive positions this CV axle shaft within its CV Axle Shaft line and backs the product with ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. VW-86011 is also listed as a non-ABS axle configuration, with no ABS tone ring included.

This part cross-references TrakMotive VW-86011 for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn CV joint during turns
• Vibration or shudder from a damaged axle shaft
• Torn axle boots that expose the joints to contamination
• Excessive driveline play at the rear right axle position
• Noise caused by wear in the inboard or outboard joint

Installation Notes

Verify rear right fitment by year, model, and axle configuration before installation. Confirm axle nut thread size, hex size, and overall compressed length against the original part. Because this axle is specified without an ABS tone ring, it should be matched to the vehicle’s non-ABS application details where required. Inspect related suspension and hub components during replacement to help avoid repeat driveline noise.

Quality Assurance

TrakMotive VW-86011 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and is covered by a limited lifetime warranty.
