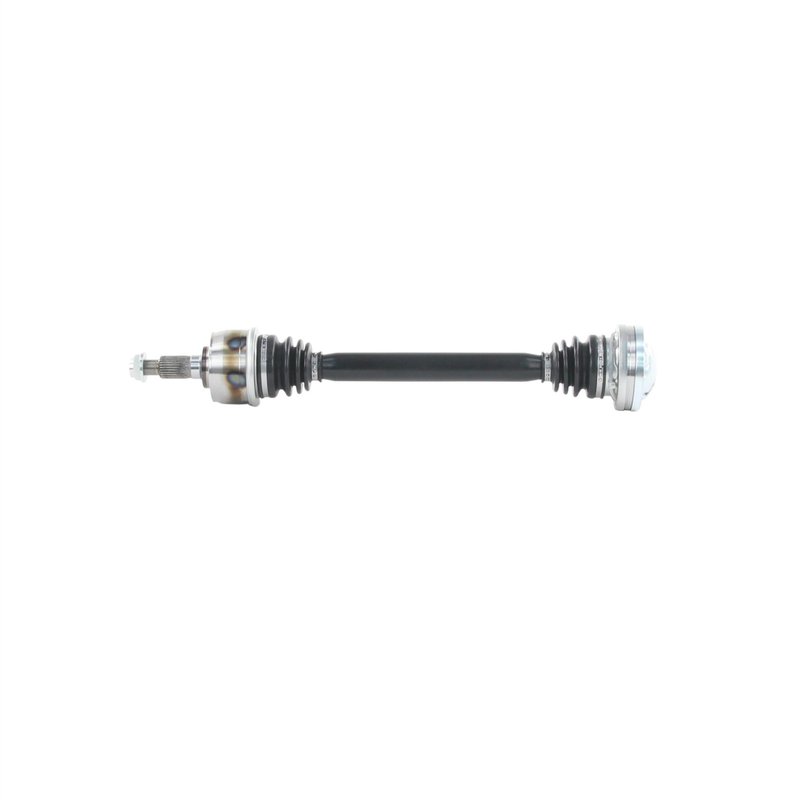

TrakMotive VW-86014 CV Axle Shaft - Rear Left

CV Axle Shaft for Porsche Rear Left

TrakMotive VW-86014 is a premium CV axle shaft for rear left applications on select Porsche Boxster and Cayman models. It is built for OEM-style fitment to help maintain original ride quality while matching the driveline geometry required for these vehicles.

Key Features

• Premium-grade CV axle shaft for driveline and axle service
• Fits 2011-2012 Porsche Boxster, rear left
• Fits 2009-2012 Porsche Cayman, rear left
• Overall compressed length: 651 mm (25.63 in)
• Inboard joint type: bolt-on with 6 inboard joint bolt holes
• Outboard joint type: conventional with 28 outboard splines
• Neoprene boot material on both inboard and outboard joints
• Axle nut thread size: M22x1.5; hex/socket size: 32 mm
• ABS tone ring not included; ABS ring tooth count: 0

Detailed Description

TrakMotive VW-86014 is a rear left CV axle shaft engineered for Porsche Boxster and Porsche Cayman applications that require an OEM-style axle replacement. The axle uses a bolt-on inboard joint, a conventional outboard joint, and a 651 mm compressed length to match the original driveline layout. TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline service parts, and this unit is built to support the original ride quality expected in these Porsche models. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Part Can Address

• Clicking or popping from a worn CV joint during turns
• Vibration from a damaged or out-of-balance axle shaft
• Grease leakage from torn or deteriorated axle boots
• Clunking or driveline noise from excessive axle wear
• Loss of smooth power transfer to the rear wheels

Installation Notes and Tips

Confirm rear left placement, axle length, spline count, and axle nut thread size before installation. This axle does not include an axle nut, so reuse or source the correct M22x1.5 hardware as needed. ABS axles fit non-ABS applications unless otherwise noted, and this unit does not include an ABS tone ring.

Quality Assurance

TrakMotive identifies this as a premium-grade CV axle shaft and states that the brand operates as an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
