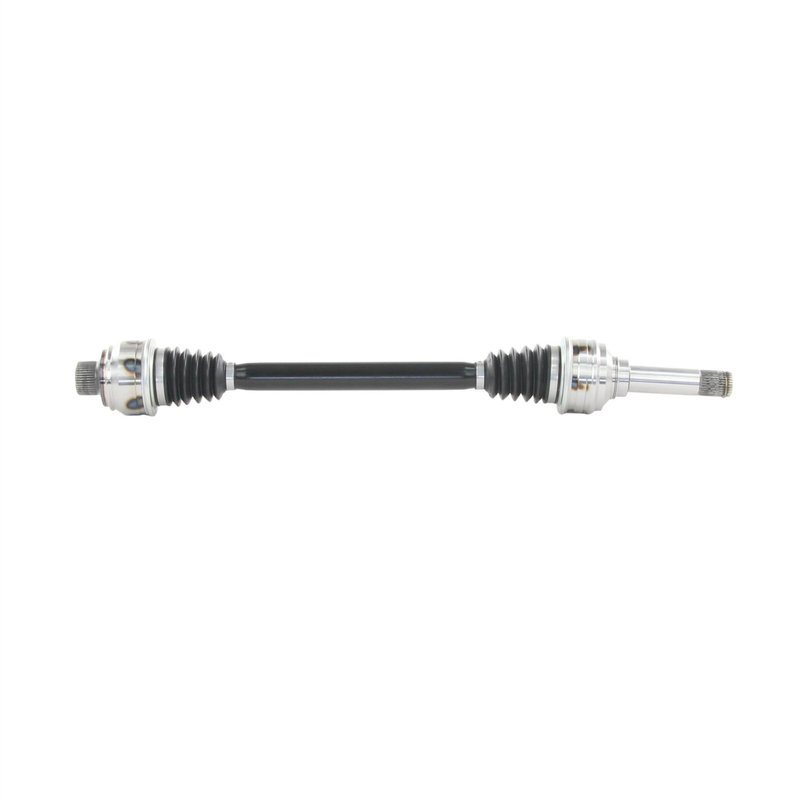

TrakMotive VW-86021 CV Axle Shaft - Rear Right
| Brand | TrakMotive VW-86021 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 42 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Overall Compressed Length (in) | 30.88 |
| Overall Compressed Length (mm) | 785 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 4 vehicles |
Premium grade. Built with thermoplastic boots for durable joint protection.
OE-style fit. CV axle shaft engineered for straightforward replacement.
Certified company. Made by an ISO 9001 and TS 16949 certified manufacturer.
Cross-references TrakMotive VW-86021 for the same application. See all 1.
Rear Right CV Axle Shaft for Porsche Macan
TrakMotive VW-86021 is a premium CV axle shaft for the rear right position on select Porsche Macan applications. It is built with thermoplastic boots, a male inboard joint, and an Audi-style spline bolt outboard joint to match the original driveline layout on covered vehicles.
Key Features
- Premium-grade CV axle shaft for driveline repair
- Fits 2017-2018 Porsche Macan, rear right, OEM-style axle to retain original ride quality
- Fits 2015-2016 Porsche Macan, rear right, with torque vectoring (locking)
- 32 inboard splines and 42 outboard splines
- Thermoplastic inboard and outboard joint boots
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 30.88 in. (785 mm)
Product Details
TrakMotive VW-86021 is part of the CV Axle Shaft line, focused on direct driveline replacement for specific Porsche Macan rear right applications. The axle uses a male inboard joint and an Audi-style spline bolt outboard joint, with spline counts and compressed length specified to match the listed fitments. TrakMotive VW-86021 is a practical replacement choice when restoring axle function, driveline smoothness, and factory-style operation on the Porsche Macan.
This part cross-references TrakMotive VW-86021 for the same application.
Common Issues This Part May Address
- Clicking or popping noises during acceleration or turning
- Vibration felt through the driveline at speed
- Worn or damaged CV joints and axle boots
- Axle play or loss of smooth power transfer to the rear wheel
- Noise or binding from a failing rear right axle assembly
Installation Notes and Tips
Verify rear right fitment by year, model, and drivetrain configuration before installation. Confirm spline counts, compressed length, and joint style against the original axle, especially on 2015-2016 Porsche Macan models with torque vectoring (locking). The axle nut is not included, and no ABS tone ring is included.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Porsche | Macan | — | — | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2017 | Porsche | Macan | — | — | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | Porsche | Macan | Turbo | 3.6L | V6 | Rear Right | With Torque Vectoring (Locking); CV Axle Shaft |
| 2015 | Porsche | Macan | Turbo | 3.6L | V6 | Rear Right | With Torque Vectoring (Locking); CV Axle Shaft |
