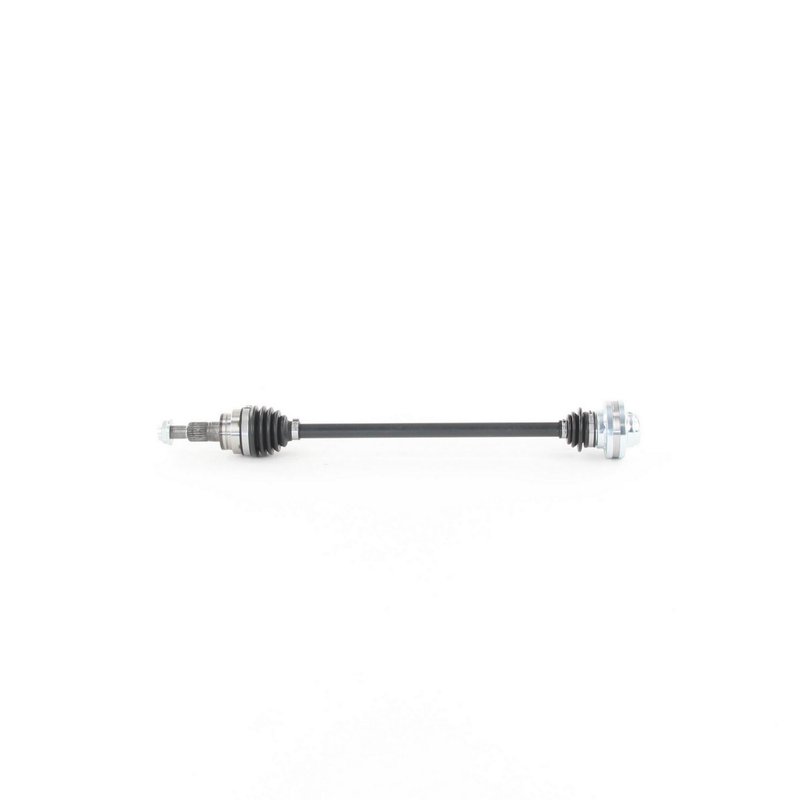

TrakMotive VW-86022 CV Axle Shaft - Front
| Brand | TrakMotive VW-86022 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 28.19 |
| Overall Compressed Length (mm) | 717 |
| Overall Extended Length (in) | 29.625 |
| Overall Extended Length (mm) | 753 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 3 vehicles |
Premium-grade build. Engineered as a CV axle shaft for replacement driveline service.
Conventional joint design. Uses a standard outboard joint with application-specific axle dimensions.
Certified manufacturing. Produced under ISO 9001:2008 and TS 16949:2009 quality systems.
Cross-references TrakMotive VW-86022 for the same application. See all 1.
Overview
This TrakMotive CV axle shaft is built for direct replacement service on select Porsche 911 applications. It is a front-position axle for standard duty replacement needs, with premium-grade construction and application-specific dimensions for proper driveline service.
Part number VW-86022 is identified for 2014-2016 Porsche 911 front applications. The design uses a conventional outboard joint, neoprene inboard boot material, and thermoplastic outboard boot material to support dependable operation in the driveline.
Key Features
- Premium-grade CV axle shaft for driveline repair
- Conventional outboard joint design
- Neoprene inboard boot material for flexible sealing
- Thermoplastic outboard boot material for added durability
- 32 mm axle nut hex size with 19 mm nut height
- Built for non-ABS applications unless otherwise noted
Detailed Description
TrakMotive VW-86022 is a CV axle shaft for the front of 2014-2016 Porsche 911 models. It is engineered with 28 outboard splines, six inboard joint bolt holes, and compressed and extended lengths of 717 mm and 753 mm to match the specified application. This part cross-references TrakMotive VW-86022 for the same application.
TrakMotive positions this axle shaft within its CV Axle Shaft product line for replacement service where a standard-duty front axle is required. The part is manufactured by a company certified to ISO 9001:2008 and TS 16949:2009, and it carries a limited lifetime warranty.
Common Replacement Issues
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Torn or deteriorated axle boots
- Excessive driveline play or noise
- Loss of smooth power transfer through the axle
Installation Notes and Tips
Verify axle nut size, spline count, and compressed length before installation. This axle is listed for front-position use on 2014-2016 Porsche 911 applications and is intended for non-ABS setups unless otherwise noted. Confirm all fitment details against the vehicle before service.
Quality Assurance
TrakMotive manufactures this axle shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. VW-86022 includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Porsche | 911 | Front | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Porsche | 911 | Front | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Porsche | 911 | Front | Standard Duty Replacement; CV Axle Shaft |
