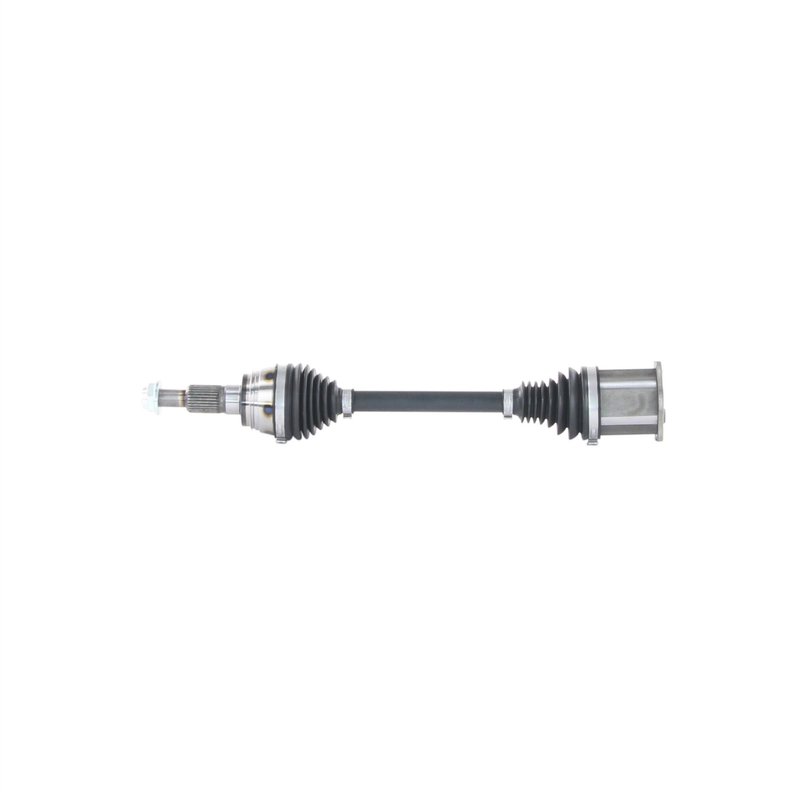

TrakMotive VW-86026 CV Axle Shaft - Front

Front CV Axle Shaft for Porsche Panamera

TrakMotive VW-86026 is a front CV axle shaft for the 2011-2016 Porsche Panamera. It is built as an AAR CV Axle Shaft with a premium-grade construction for OE-style driveline service on front applications.

Key Features

• Fits 2011-2016 Porsche Panamera, front
• TrakMotive AAR CV Axle Shaft line
• Premium grade replacement axle shaft
• Male inboard joint with conventional outboard joint
• 30 outboard splines and 6 inboard joint bolt holes
• Overall compressed length: 545 mm (21.44 in)
• Overall extended length: 596 mm (23.44 in)
• Axle nut thread size: M22x1.5 with 32 mm hex size
• ABS ring tooth count: 0; ABS tone ring not included

Product Details

TrakMotive VW-86026 is engineered for the front axle position on the Porsche Panamera and follows the OE AAR design noted for this application. The shaft uses a male inboard joint and a conventional outboard joint, with dimensions and spline count matched to the listed fitment. TrakMotive VW-86026 is a direct driveline replacement choice for 2011-2016 Porsche Panamera front axle service.

This part cross-references Monroe Shocks & Struts (e.g., NCV70034) for the same application.

Common Issues This Part Can Address

• Clicking or popping during turns from a worn CV joint
• Vibration or shudder under acceleration
• Grease leakage from a damaged axle boot
• Excessive play in the front driveline assembly
• Noise from a worn or failing front axle shaft

Installation Notes

Verify axle nut thread size, hex size, and overall shaft length before installation. This axle uses a 32 mm axle nut socket size and does not include the axle nut. ABS axles fit non-ABS applications unless otherwise noted, and this listing shows no ABS tone ring included. Confirm the front position and OE AAR design match the vehicle before service.

Quality Assurance

TrakMotive states this AAR CV axle shaft is backed by a limited lifetime warranty. The manufacturer is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent production and quality control for driveline components.
