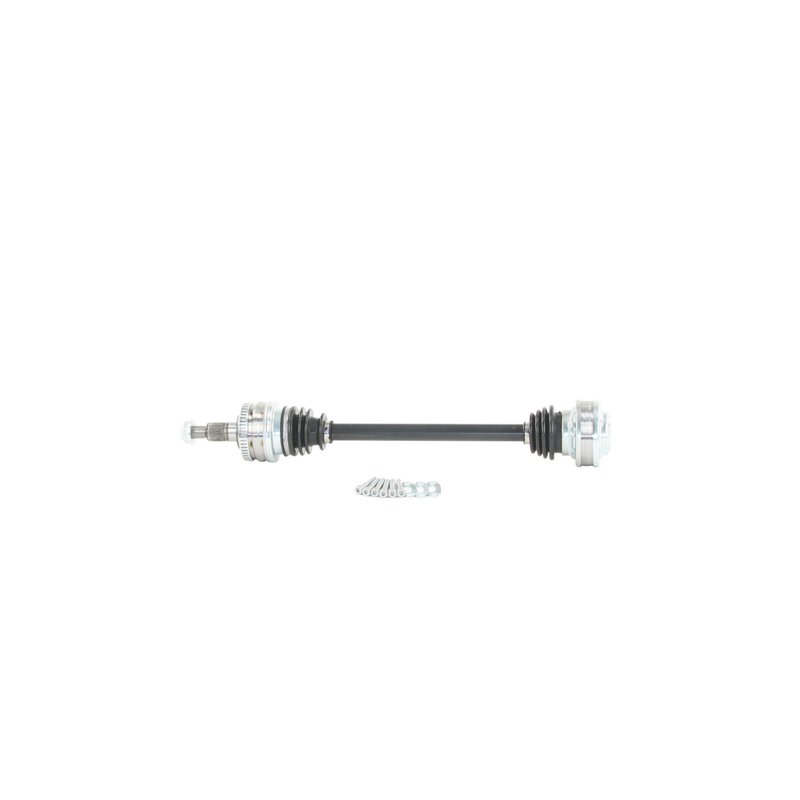

TrakMotive VW-86031 CV Axle Shaft - Rear Left

CV Axle Shaft for Porsche Boxster

TrakMotive VW-86031 is a premium CV axle shaft for the rear left position on 1997-2002 Porsche Boxster models. It is built with a bolt-on inboard joint, spline-style outboard connection, and included axle nut for a direct replacement on standard-duty applications.

Key Features

• Fits 1997-2002 Porsche Boxster, rear left
• Premium-grade CV axle shaft for driveline service
• Inboard joint type: bolt-on with 6 inboard joint bolt holes
• Outboard joint type: conventional with 28 outboard splines
• Neoprene boot material on both inboard and outboard joints
• ABS tone ring included; 48-tooth window-style ABS ring
• Axle nut included: M22x1.5, 32 mm socket size, self-locking
• Overall compressed length: 25.69 in; extended length: 28.31 in

Detailed Description

TrakMotive CV axle shaft VW-86031 is engineered for the rear left side of the Porsche Boxster from 1997 through 2002. This axle uses a bolt-on inboard connection and a spline-style outboard shaft connection, with neoprene boots at both joints to support driveline service in a standard replacement application. The included ABS tone ring and 48-tooth window-style ring help maintain proper wheel speed signal function where equipped. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Clicking or popping noises during turns
• Vibration from the driveline during acceleration
• Grease leakage from a damaged CV boot
• Excessive play or wear in the axle assembly
• ABS signal issues related to a worn tone ring

Installation Notes and Tips

Confirm rear left fitment before installation on your Porsche Boxster. Verify axle nut thread size, socket size, and overall axle length against the original part before assembly. Inspect the hub, seals, and mating surfaces for wear, and follow factory torque specifications during installation.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is supported by ISO 9001:2008 and TS 16949:2009 certification.
