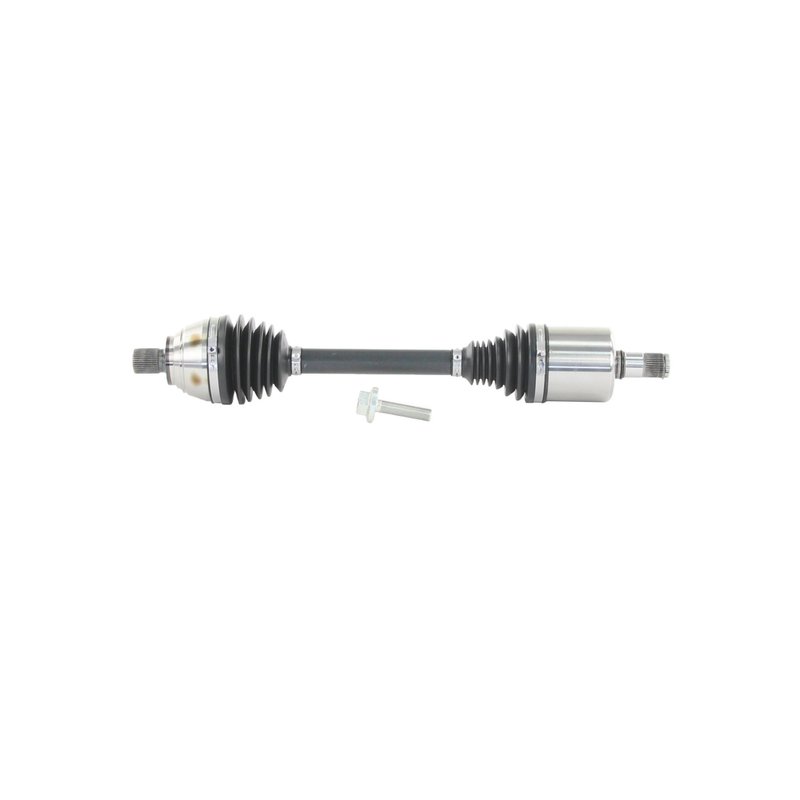

TrakMotive VW-86035 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-86035 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.56 |
| Overall Compressed Length (mm) | 598 |
| Overall Extended Length (in) | 25.94 |
| Overall Extended Length (mm) | 659 |
| Product line | AAR CV Axle Shaft |
| Fits | Volkswagen · 8 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Spline connection. Helps deliver a secure, precise axle shaft fit.
AAR CV axle shaft for driveline and axle applications.
Cross-references TrakMotive VW-86035 and NCV72190 for the same application. See all 2.
TrakMotive AAR CV Axle Shaft for Atlas
TrakMotive VW-86035 is a premium CV axle shaft built for front-left applications on select Volkswagen Atlas and Atlas Cross Sport models. It follows an OE AAR design and uses an Audi-style spline bolt outboard joint for a direct-fit driveline replacement.
Key Features
- Premium-grade CV axle shaft for driveline repair
- OE AAR design for the front left position
- Outboard joint uses an Audi style spline bolt connection
- Inboard joint type: male with spline shaft connection
- Thermoplastic boots on both inboard and outboard joints
- 37 inboard splines and 38 outboard splines
- Axle bolt specs: 27 mm hex, M16x1.5 thread, 86 mm length
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive VW-86035 is a front-left CV axle shaft for 2018-2022 Volkswagen Atlas and 2020-2022 Volkswagen Atlas Cross Sport. This AAR CV Axle Shaft is engineered around the OE AAR layout, with a male inboard joint, spline shaft connections, and an Audi style spline bolt outboard joint for the specified application. The axle measures 598 mm compressed and 659 mm extended, helping match the original driveline geometry on the vehicle.
This part cross-references NCV72190 for the same application. Use VW-86035 when servicing a Volkswagen Atlas front left CV axle or a Volkswagen Atlas Cross Sport front left CV axle within the listed model years.
Common Repair Uses
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder under acceleration from axle wear
- Torn or deteriorated CV boots with grease loss
- Excessive driveline play from damaged axle splines or joints
- Front-left axle replacement after road impact or joint failure
Installation Notes and Tips
Verify front-left fitment by year, model, and OE AAR design before installation. Confirm axle bolt requirements match the vehicle: 27 mm hex, M16x1.5 thread, and 86 mm length. The axle nut is not included, and no ABS tone ring is included, so reuse or source related components as needed based on the vehicle setup. Inspect hub, seals, and mating splines during installation to help prevent repeat noise or leakage concerns.
Quality Assurance
TrakMotive positions this AAR CV axle shaft as a premium replacement part for the specified Volkswagen applications. VW-86035 is built to match the listed OE-style dimensions and joint configuration for consistent service fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Volkswagen | Atlas | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Volkswagen | Atlas Cross Sport | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Volkswagen | Atlas | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Volkswagen | Atlas Cross Sport | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Volkswagen | Atlas | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Volkswagen | Atlas Cross Sport | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Volkswagen | Atlas | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Volkswagen | Atlas | Front Left | OE AAR design; AAR CV Axle Shaft |
