TrakMotivePart #: VW-86040

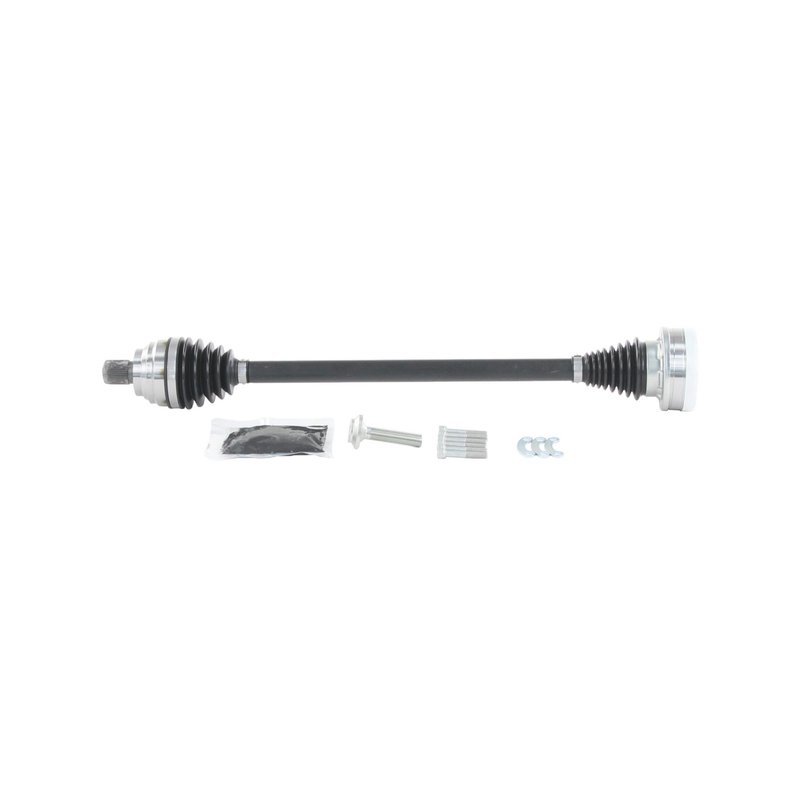

TrakMotive VW-86040 CV Axle Shaft - Rear Right
4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$157.29Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Right
Fitment: Volkswagen, Atlas
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive VW-86040 CV Axle Shaft - Rear Right
| Brand | TrakMotive |
|---|---|
| Part Number | VW-86040 |
| Position | CV Axle Shaft, Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 85 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | .25 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.25 |
| Inboard Bolt Length (mm) | 57 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.875 |
| Overall Compressed Length (mm) | 708 |
| Overall Extended Length (in) | 28.44 |
| Overall Extended Length (mm) | 723 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Volkswagen | Atlas | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Volkswagen | Atlas | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Volkswagen | Atlas | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Volkswagen | Atlas | Rear Right | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
VW-86040
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
