TrakMotivePart #: VW-86046

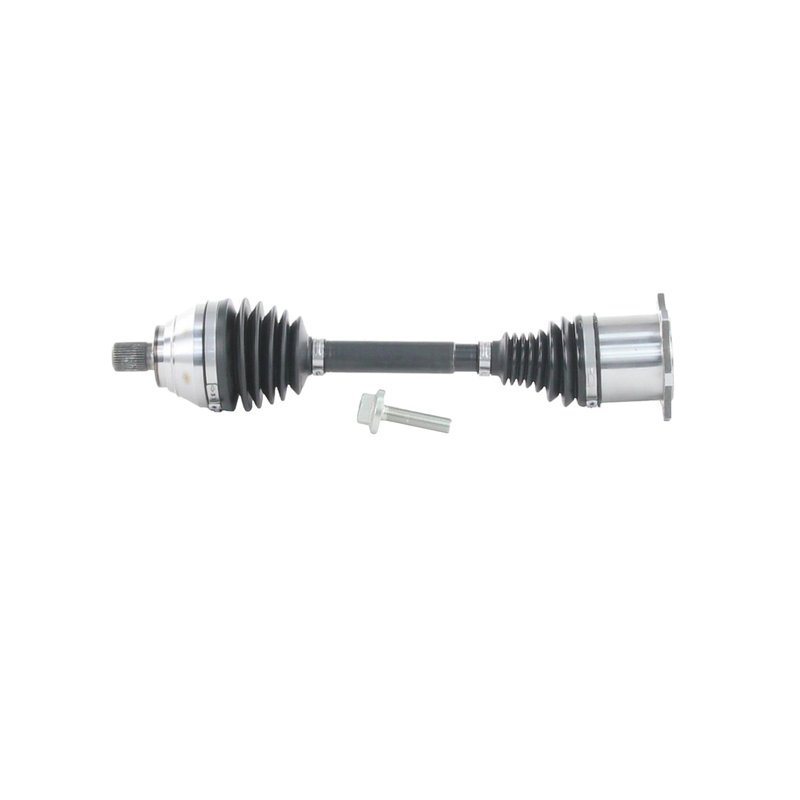

TrakMotive VW-86046 CV Axle Shaft - Front Left
3 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$166.43Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front Left
Fitment: Volkswagen, Beetle
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive VW-86046 CV Axle Shaft - Front Left
| Brand | TrakMotive |
|---|---|
| Part Number | VW-86046 |
| Position | AAR CV Axle Shaft, Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Flange |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Overall Compressed Length (in) | 19.06 |
| Overall Compressed Length (mm) | 485 |
| Overall Extended Length (in) | 21.25 |
| Overall Extended Length (mm) | 540 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Volkswagen | Beetle | Automatic Dual Clutch | 2.0L | L4 | DIESEL | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2014 | Volkswagen | Beetle | Automatic Dual Clutch | 2.0L | L4 | DIESEL | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2013 | Volkswagen | Beetle | Automatic Dual Clutch | 2.0L | L4 | DIESEL | Front Left | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
VW-86046
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
