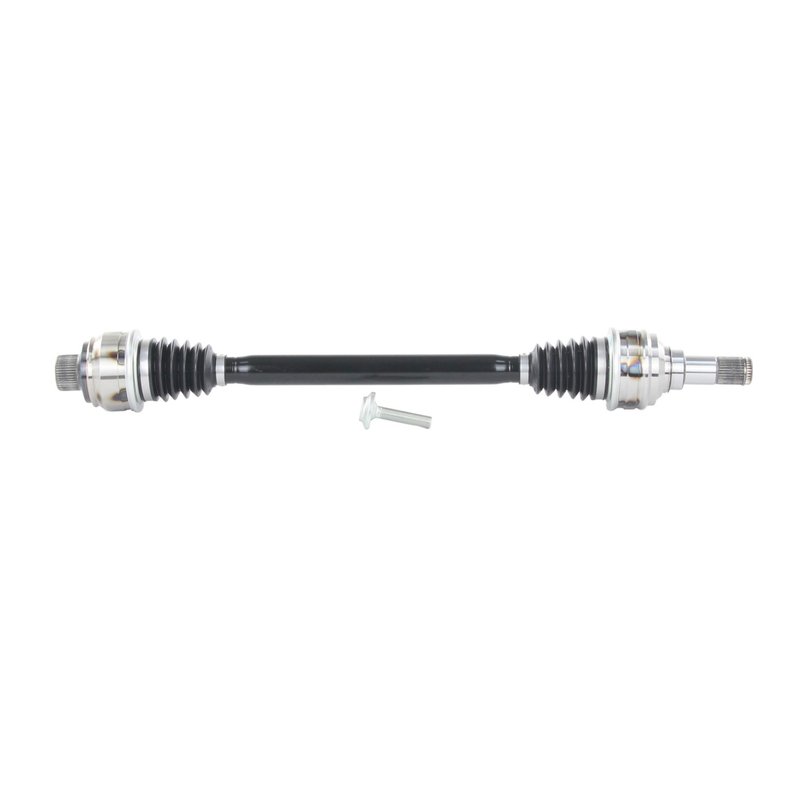

TrakMotive VW-86047 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche Macan

TrakMotive VW-86047 is a rear CV axle shaft for select Porsche Macan applications. It is built as a premium driveline replacement with thermoplastic boots, a male inboard joint, and a conventional outboard joint to support OE-style driveline operation and original ride quality.

Key Features

• Rear CV axle shaft for 2015-2016 Porsche Macan without torque vectoring
• Rear CV axle shaft for 2017-2018 Porsche Macan with OEM-style axle fitment to retain original ride quality
• Premium grade construction for driveline service replacement
• Thermoplastic inboard and outboard joint boots
• 32 inboard splines and 42 outboard splines
• No ABS tone ring included; ABS ring tooth count is 0
• Overall compressed length: 788 mm (34.13 in)
• Overall extended length: 722 mm (28.44 in)

Product Details

TrakMotive VW-86047 is a rear CV axle shaft engineered for Porsche Macan driveline service where the original axle has worn, clicked, or developed vibration under load. The axle uses a male inboard joint and a conventional outboard joint, with thermoplastic boot materials selected for consistent joint protection in everyday road use. This part number is also referenced as VW-86047 and cross-references NCV70035 for the same application.

Compatible With 2015-2016 Porsche Macan, rear, without torque vectoring, and 2017-2018 Porsche Macan, rear, OEM style axle to retain original ride quality. Use VW-86047 when replacing a rear axle on the Porsche Macan and you need a direct-fit driveline component matched to the listed spline counts and dimensions.

Common Issues This Part Can Address

• Clicking or popping from a worn CV joint during turns
• Vibration or shudder from a damaged rear axle shaft
• Boot failure that leads to grease loss and joint wear
• Driveline noise from excessive axle play
• Loss of smooth power transfer at the rear wheels

Installation Notes and Tips

Verify rear fitment by model year and configuration before installation. This axle uses an M16x1.5 axle bolt thread size, a 19 mm axle bolt hex size, and an 86 mm axle bolt length. The axle nut is not included. Confirm spline counts, compressed length, and extended length against the original part before assembly.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for driveline components.
