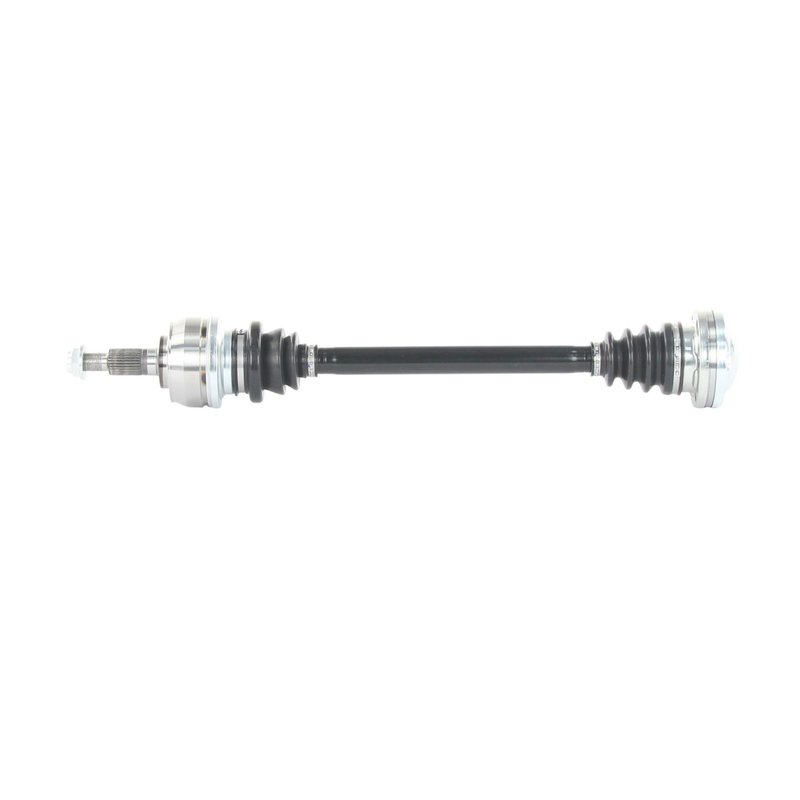

TrakMotive VW-86049 CV Axle Shaft - Rear
| Brand | TrakMotive VW-86049 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 6 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 27.19 |
| Overall Compressed Length (mm) | 690 |
| Overall Extended Length (in) | 30.06 |
| Overall Extended Length (mm) | 764 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 4 vehicles |
Bolt-on design. Simplifies installation with a direct-fit inboard joint.
Premium grade. Built to deliver dependable driveline performance.
ABS-ready fit. Works in non-ABS applications when no tone ring is needed.
Cross-references TrakMotive VW-86049 for the same application. See all 1.
Rear CV Axle Shaft for Porsche 911
TrakMotive VW-86049 is a premium rear CV axle shaft for the 2009-2012 Porsche 911. It is built for OEM-style fitment to help maintain original ride quality on rear driveline applications, with fitment confirmed for non-ABS use unless otherwise noted.
Key Features
- Fits 2009-2012 Porsche 911, rear
- Premium-grade CV axle shaft for driveline service
- Conventional outboard joint design with 28 outboard splines
- Bolt-on inboard joint configuration
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- Overall compressed length: 690 mm; overall extended length: 764 mm
Product Details
This TrakMotive CV axle shaft, part number VW-86049, is engineered for the rear position on the Porsche 911 from 2009 through 2012. The axle follows an OEM-style layout to support factory driveline geometry and ride characteristics, while the bolt-on inboard joint and conventional outboard joint match the application-specific design requirements. TrakMotive VW-86049 is also backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references TrakMotive VW-86049 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage around the axle area
- Clunking or looseness in the rear driveline
- Loss of smooth power transfer to the rear wheels
Installation Notes
Verify rear-position fitment before installation on the 2009-2012 Porsche 911. Confirm axle nut thread size, hex size, spline count, and overall length against the original axle shaft before assembly. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. Manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification standards.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Porsche | 911 | Targa 4 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2011 | Porsche | 911 | Targa 4 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2010 | Porsche | 911 | Targa 4 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2009 | Porsche | 911 | Targa 4 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
