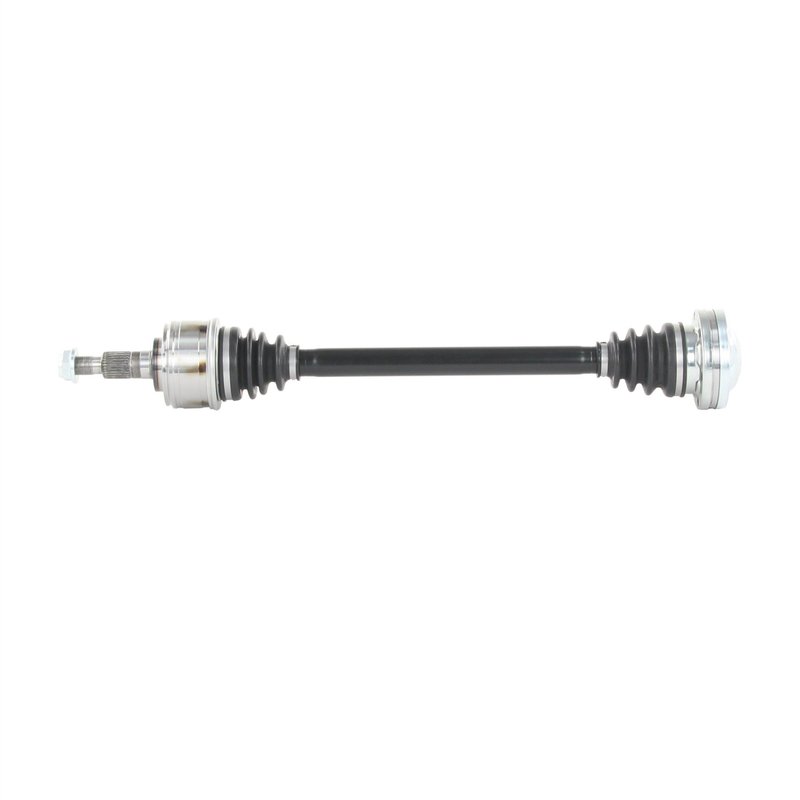

TrakMotive VW-86050 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche 911

TrakMotive VW-86050 is a premium rear CV axle shaft for select 2010-2013 Porsche 911 applications. It is built as an OEM-style axle to help preserve original ride quality while restoring driveline function on the rear axle.

Compatible with 2010-2013 Porsche 911, rear, this CV axle shaft is engineered with a bolt-on inboard joint, conventional outboard joint, and 28 splines at both ends. The axle measures 27.5 inches compressed and 30.19 inches extended, with a 32 mm axle nut hex size and M22x1.5 thread size.

Key Features

• TrakMotive CV Axle Shaft, part number VW-86050
• Rear axle application for 2010-2013 Porsche 911
• OEM-style design to retain original ride quality
• Premium grade construction
• Bolt-on inboard joint with 6 bolt holes
• Conventional outboard joint with 28 splines
• No ABS tone ring included; ABS ring tooth count is 0
• Axle nut hex size: 32 mm; thread size: M22x1.5

Product Details

This TrakMotive CV axle shaft is a direct driveline replacement for rear Porsche 911 service work where a worn or damaged axle needs to be restored to proper operation. The VW-86050 part number identifies the correct axle configuration for the listed 2010-2013 Porsche 911 rear application, and the OEM-style construction is intended to maintain the vehicle’s original ride characteristics. TrakMotive VW-86050 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.

This part cross-references TrakMotive VW-86050 for the same application.

Common Repair Symptoms

• Clicking or popping from the rear driveline during turns
• Vibration felt through the chassis under acceleration
• Grease leakage around the axle area
• Excessive play or looseness in the CV joint
• Noise from a worn rear axle shaft assembly

Installation Notes

Verify rear fitment by year, model, and axle configuration before installation. Confirm the axle nut hex size, thread size, spline count, and joint style match the original part on the vehicle. Because this axle is listed without an ABS tone ring, it is intended for non-ABS applications unless otherwise noted in the vehicle-specific catalog data.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for driveline replacement parts.
