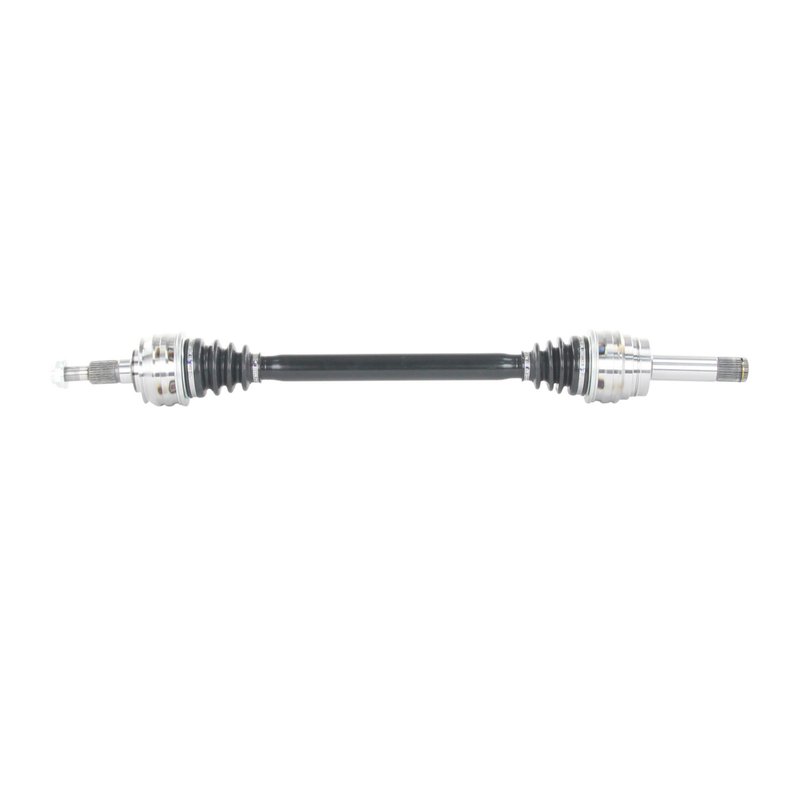

TrakMotive VW-86052 CV Axle Shaft - Rear Left
| Brand | TrakMotive VW-86052 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 34.81 |
| Overall Compressed Length (mm) | 884 |
| Overall Extended Length (in) | 37.94 |
| Overall Extended Length (mm) | 964 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 7 vehicles |
Premium grade. A CV axle shaft built for dependable driveline replacement.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive VW-86052 for the same application. See all 1.
Rear Left CV Axle Shaft for Panamera
TrakMotive VW-86052 is a premium CV axle shaft for the rear left position on 2010-2016 Porsche Panamera models. It is built for OEM-style fitment to help retain original ride quality while restoring driveline function.
- Fits 2010-2016 Porsche Panamera, rear left
- Premium-grade CV axle shaft for driveline and axle service
- OEM-style axle to retain original ride quality
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 32
- Outboard splines: 30
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- Overall compressed length: 884 mm; overall extended length: 964 mm
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Porsche Panamera and matches the listed spline counts, joint styles, and shaft lengths for the application. Part number VW-86052 is a direct driveline replacement choice for owners searching for a Porsche Panamera rear left CV axle shaft that follows OE-style dimensions and fitment.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this application built around precise axle geometry and a conventional outboard joint design. The axle is listed for non-ABS use unless otherwise noted, and the product information identifies no ABS tone ring included.
This part cross-references TrakMotive VW-86052 for the same application.
Common Repair Uses
- Restores a worn or noisy rear left CV axle on a Porsche Panamera
- Addresses clicking or vibration during acceleration and turning
- Replaces a shaft with damaged splines or joint wear
- Helps correct driveline shake caused by axle imbalance or wear
- Supports repair of grease loss from a failing CV joint boot or joint assembly
Installation Notes
Verify rear left fitment by matching the vehicle year, axle nut thread size, spline counts, and overall axle length before installation. Confirm whether the vehicle uses ABS-related components, since this axle is listed with no ABS tone ring included. Use the specified 32 mm axle nut socket size and M22x1.5 thread specification during service.
Quality Assurance
TrakMotive identifies this axle as a premium-grade replacement and states that its CV axle products are backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Porsche | Panamera | 4.8L | V8 | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | Porsche | Panamera | 4.8L | V8 | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | Porsche | Panamera | 4.8L | V8 | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | Porsche | Panamera | 4.8L | V8 | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | Porsche | Panamera | 4.8L | V8 | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2011 | Porsche | Panamera | — | — | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2010 | Porsche | Panamera | — | — | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
