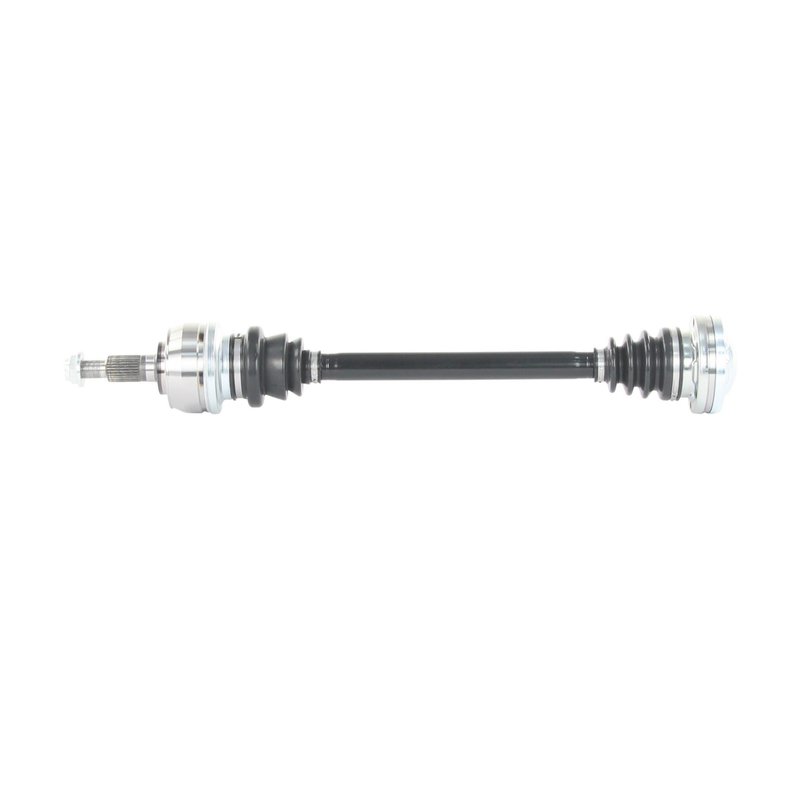

TrakMotive VW-86055 CV Axle Shaft - Rear
| Brand | TrakMotive VW-86055 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 6 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 27.19 |
| Overall Compressed Length (mm) | 691 |
| Overall Extended Length (in) | 30.13 |
| Overall Extended Length (mm) | 765 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 4 vehicles |
Bolt-on design. Simplifies installation with a direct-fit inboard joint.
Premium grade. Built to deliver dependable driveline performance.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive VW-86055 for the same application. See all 1.
Rear CV Axle Shaft for Porsche 911
TrakMotive VW-86055 is a rear CV axle shaft for 2005-2008 Porsche 911 applications. It is built as an OEM-style axle to help maintain original ride quality while matching the fitment and driveline requirements of the vehicle.
Key Features
- Fits 2005-2008 Porsche 911, rear
- CV axle shaft for driveline and axle service
- Premium grade construction
- Conventional outboard joint type
- Bolt-on inboard joint design
- 28 outboard splines
- No ABS tone ring included
- ABS axle configuration for non-ABS applications unless otherwise noted
- Overall compressed length: 27.19 in. (691 mm)
- Overall extended length: 30.13 in. (765 mm)
Product Details
TrakMotive VW-86055 is a rear CV axle shaft engineered for the Porsche 911 platform from 2005 through 2008. The axle uses a conventional outboard joint and a bolt-on inboard joint, with 28 outboard splines and no ABS tone ring included. The axle nut specification is M22x1.5 with a 32 mm hex size, and the shaft dimensions measure 27.19 inches compressed and 30.13 inches extended. This part number, VW-86055, is a direct-fit driveline service option for Porsche 911 rear axle replacement needs.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to match OE-style fit and function. This part is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, and the product line is backed by a limited lifetime warranty.
Common Repair Uses
- Restoring rear driveline operation after CV joint wear
- Replacing a noisy or clicking axle on a Porsche 911
- Addressing vibration from a worn rear axle shaft
- Correcting axle play or damaged splines
- Servicing a leaking or failing rear CV axle assembly
Installation Notes
Verify rear fitment by year and application before installation. Confirm axle nut thread size, hex size, and overall shaft length against the original part. Because ABS axles fit non-ABS applications unless otherwise noted, confirm the vehicle’s brake and sensor configuration before ordering. Professional installation and proper torque procedures are recommended for driveline service.
Quality Assurance
TrakMotive VW-86055 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and includes a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Porsche | 911 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | Porsche | 911 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2006 | Porsche | 911 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2005 | Porsche | 911 | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
