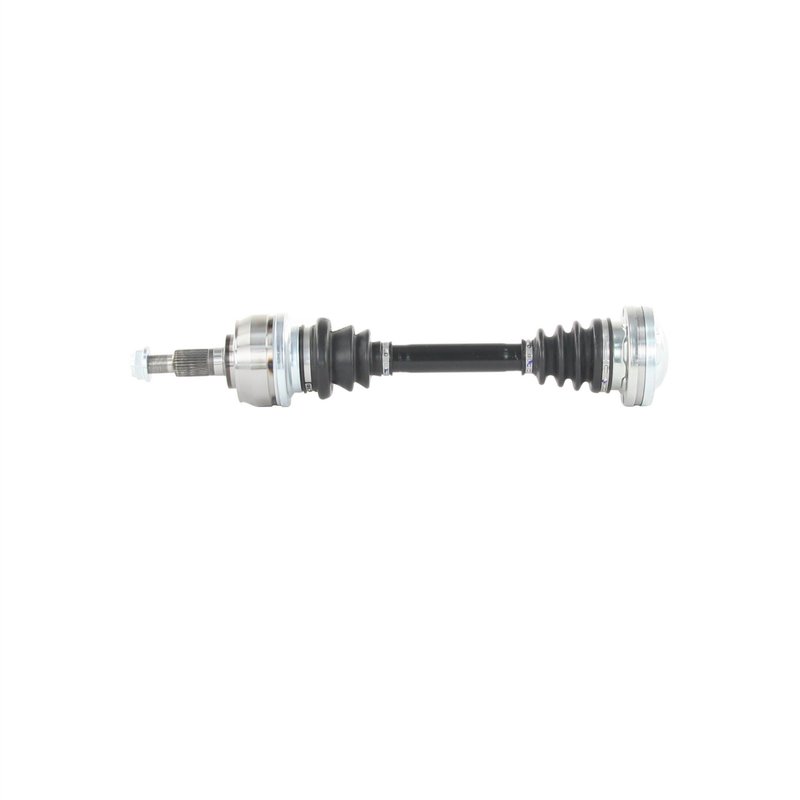

TrakMotive VW-86056 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche 911

TrakMotive VW-86056 is a premium rear CV axle shaft for the 2005-2008 Porsche 911. It is built for OEM-style fitment to help retain the original ride quality expected in this application, with dimensions and joint specifications matched to the vehicle platform.

Key Features

• Fits 2005-2008 Porsche 911, rear
• TrakMotive CV axle shaft, part number VW-86056
• Premium grade construction for driveline service
• Conventional outboard joint design with 28 outboard splines
• Bolt-on inboard joint configuration
• Overall compressed length: 20.88 in. (530 mm)
• Overall extended length: 23.75 in. (604 mm)
• 32 mm axle nut hex size with M22x1.5 thread
• No ABS tone ring included; 0 ABS ring tooth count

Product Details

This TrakMotive CV axle shaft, VW-86056, is engineered for rear driveline service on the Porsche 911 from 2005 through 2008. The axle uses a conventional outboard joint and a bolt-on inboard joint layout, with 28 outboard splines and the listed compressed and extended lengths to support proper axle geometry in the rear suspension. TrakMotive identifies this application as an OEM-style axle intended to preserve original ride quality in the Porsche 911 platform. This part number, VW-86056, is also the reference to verify the correct rear axle for the 2005-2008 Porsche 911.

Common Issues This Part Can Address

• Clicking or popping from a worn CV joint during acceleration or turning
• Vibration from a damaged or out-of-balance axle shaft
• Grease leakage from a failed axle boot or joint seal
• Excessive driveline play in the rear axle assembly
• Noise from a worn rear CV axle on a Porsche 911

Installation Notes and Tips

Verify rear fitment by matching the vehicle year, model, and axle dimensions before installation. Confirm axle nut thread size, hex size, and spline count against the original part, and inspect the mating hub and transmission-side components for wear. Because this application does not include an ABS tone ring, confirm the vehicle does not require an ABS-specific axle configuration. Professional installation and proper torque procedures are recommended for Porsche 911 rear axle service.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company. This part cross-references TrakMotive VW-86056 for the same application.
