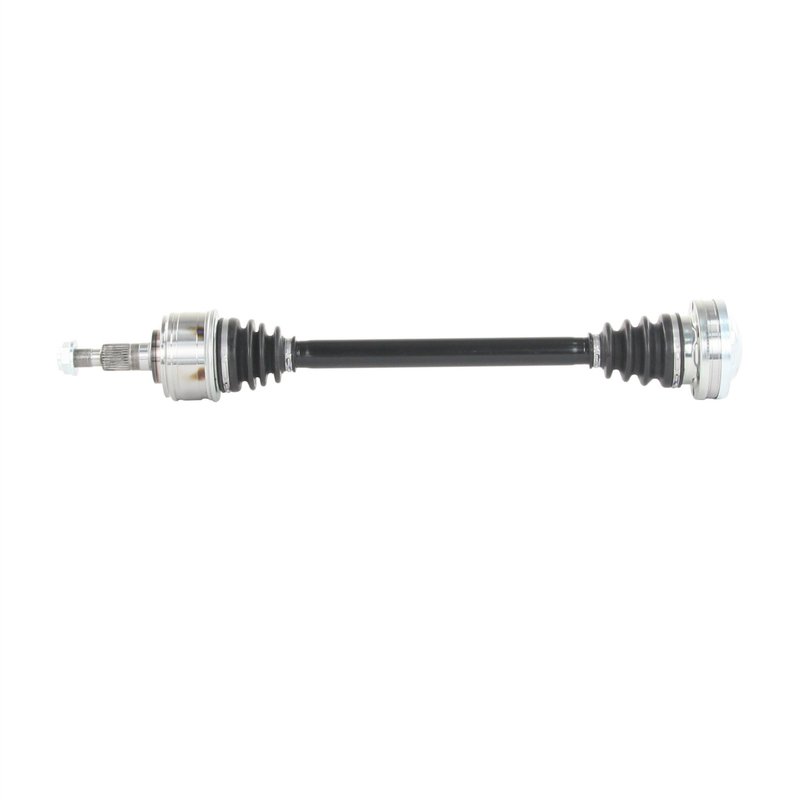

TrakMotive VW-86057 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche 911

TrakMotive VW-86057 is a rear CV axle shaft for the 2007-2009 Porsche 911. It is built as an OEM-style axle to help maintain original ride quality while restoring driveline function on the rear axle.

Key Features

• Rear CV axle shaft for 2007-2009 Porsche 911
• OEM-style design for original ride quality
• Premium grade construction
• Conventional outboard joint type
• Bolt-on inboard joint design
• 28 outboard splines
• 32 mm axle nut hex size with M22x1.5 thread
• No ABS tone ring included
• Overall compressed length: 27.38 in. (696 mm)
• Overall extended length: 30.38 in. (771 mm)

Detailed Description

TrakMotive VW-86057 is a CV axle shaft engineered for rear applications on the Porsche 911 from 2007 through 2009. The axle uses a conventional outboard joint and a bolt-on inboard joint layout, with 28 outboard splines and a 32 mm axle nut interface. As an OEM-style replacement, it supports driveline restoration without changing the vehicle’s original ride characteristics.

TrakMotive’s CV axle shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. This part number, VW-86057, is built to match the specified rear Porsche 911 application and is backed by the brand’s manufacturing standards, including ISO 9001:2008 and TS 16949:2009 certification.

This part cross-references TrakMotive VW-86057 for the same application.

What It Helps Address

• Clicking or popping from a worn rear CV joint
• Vibration during acceleration from axle wear
• Grease leakage from a damaged axle assembly
• Driveline noise caused by excessive joint play
• Loss of smooth power transfer at the rear wheels

Installation Notes and Tips

Verify rear fitment before installation on the 2007-2009 Porsche 911. Confirm axle nut thread size, hex size, spline count, and overall length against the original axle to ensure proper fit. This axle does not include an axle nut, and no ABS tone ring is included.

Quality Assurance

TrakMotive VW-86057 is covered by a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and the company is ISO 9001:2008 and TS 16949:2009 certified.
