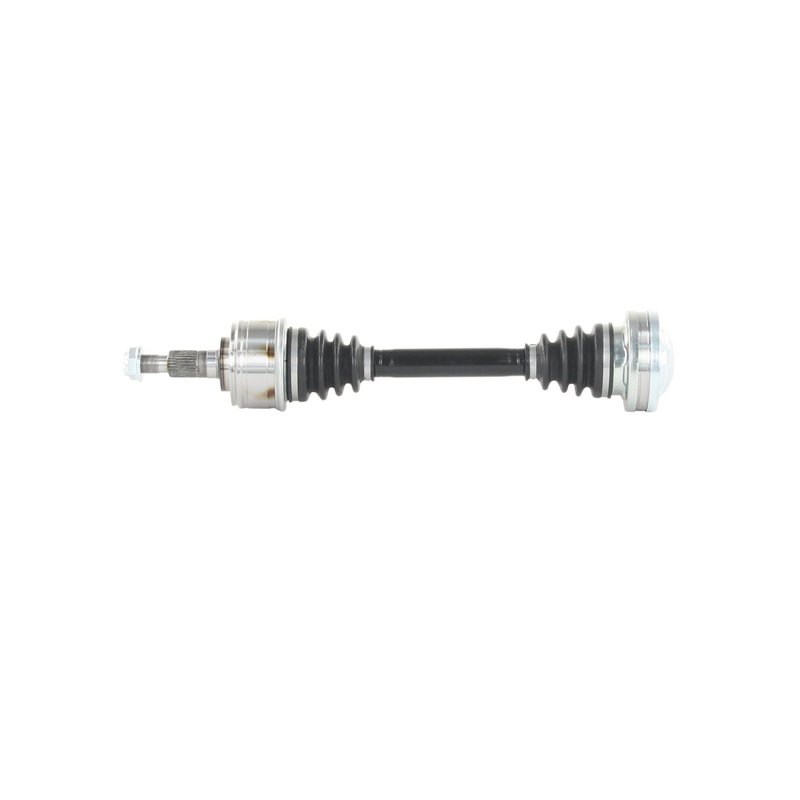

TrakMotive VW-86058 CV Axle Shaft - Rear
| Brand | TrakMotive VW-86058 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 6 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 20.94 |
| Overall Compressed Length (mm) | 533 |
| Overall Extended Length (in) | 23.94 |
| Overall Extended Length (mm) | 608 |
| Product line | CV Axle Shaft |
| Fits | Porsche · 3 vehicles |
Bolt-on design. Simplifies installation with a direct-fit CV axle shaft.
Premium grade. Built to deliver dependable driveline performance.
ABS-ready fit. Configured for non-ABS applications unless otherwise noted.
Cross-references TrakMotive VW-86058 for the same application. See all 1.
Rear CV Axle Shaft for Porsche 911
TrakMotive VW-86058 is a premium rear CV axle shaft for 2007-2009 Porsche 911 applications. It is built for OEM-style fitment to help maintain original ride quality while matching the driveline geometry of the vehicle.
Compatible with rear Porsche 911 models from 2007 through 2009, this CV axle shaft is a direct driveline replacement for non-ABS applications unless otherwise noted by the vehicle configuration.
Key Features
- TrakMotive CV Axle Shaft, part number VW-86058
- Fits 2007-2009 Porsche 911, rear
- Premium grade replacement for driveline service
- OEM-style axle to retain original ride quality
- Conventional outboard joint design
- Bolt-on inboard joint configuration
- 32 mm axle nut socket size with M22x1.5 thread
- Overall compressed length: 20.94 in. (533 mm)
- Overall extended length: 23.94 in. (608 mm)
Detailed Description
TrakMotive VW-86058 is a rear CV axle shaft engineered for the 2007-2009 Porsche 911. The axle uses a conventional outboard joint and a bolt-on inboard joint layout, with dimensions and spline counts matched to the listed application for proper driveline service. This part number, VW-86058, is intended for owners replacing a worn or damaged rear axle on a Porsche 911 while keeping OEM-style ride characteristics.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts. The brand notes ISO 9001:2008 and TS 16949:2009 certification, supporting consistent manufacturing controls across the product line.
What This Part Helps Address
- Clicking or popping noises from a worn rear CV axle
- Vibration during acceleration from axle wear
- Grease leakage from a damaged axle assembly
- Excessive driveline play in the rear axle
- Restoration of proper rear driveline operation on Porsche 911 models
Installation Notes and Tips
Verify rear fitment by year, model, and vehicle configuration before installation. This axle uses a 32 mm axle nut socket size and M22x1.5 thread specification. ABS tone ring is not included, and the axle nut is not included. Confirm the vehicle’s original axle dimensions and spline count against the listed specifications before assembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Porsche | 911 | Automatic | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2008 | Porsche | 911 | Automatic | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | Porsche | 911 | Automatic | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| No rows match your filter. | |||||
