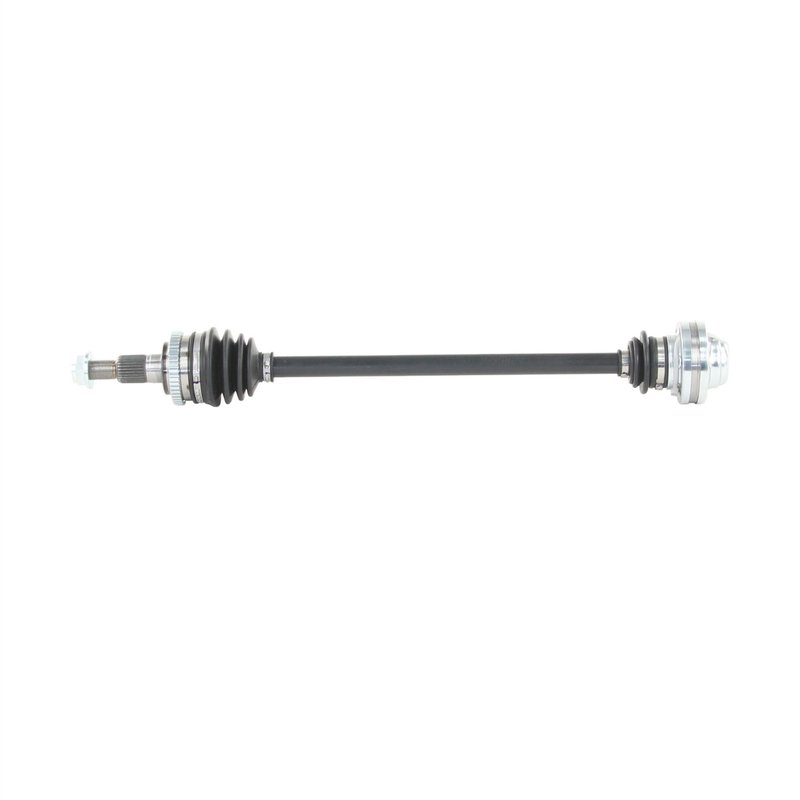

TrakMotive VW-86062 CV Axle Shaft - Front

Front CV Axle Shaft for Porsche 911

TrakMotive VW-86062 is a premium front CV axle shaft for 2001-2005 Porsche 911 applications. It is built for standard-duty replacement service and matches the fitment details needed for a direct driveline repair on the front axle.

Key Features

• Fits 2001-2005 Porsche 911, front
• Premium-grade CV axle shaft for driveline service
• Outboard joint type: conventional
• Inboard joint type: bolt-on with 6 inboard joint bolt holes
• ABS ring tooth count: 48 with toothed ring design
• Overall compressed length: 684 mm (26.94 in)
• Overall extended length: 721 mm (28.38 in)
• Axle nut thread size: M22x1.5 with 32 mm hex size

Product Details

TrakMotive VW-86062 is a CV axle shaft engineered for the front position on Porsche 911 models from 2001 through 2005. The axle uses a conventional outboard joint and a bolt-on inboard joint, with dimensions and spline counts matched to the listed application for proper driveline engagement. This part number, VW-86062, is also referenced for the same application under cross-reference number NCV70043.

The TrakMotive CV Axle Shaft line focuses on replacement driveline components built to application-specific dimensions. For buyers searching for a front Porsche 911 CV axle shaft, Porsche 911 front axle replacement, or TrakMotive VW-86062 for 2001-2005 Porsche 911, this part provides the fitment details needed for a direct repair decision.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Grease leakage from a failed CV boot or joint assembly
• Driveline play caused by worn splines or joint wear
• Front axle replacement needs on 2001-2005 Porsche 911 models

Installation Notes and Tips

Verify axle nut thread size, hex size, and overall length against the removed part before installation. Confirm the vehicle is a 2001-2005 Porsche 911, front application, and check ABS ring tooth count and joint style to match the original configuration. The axle nut is not included, so reuse or replace it according to service requirements. Proper torque procedures and final inspection of the axle seating and fasteners are important for a correct installation.

Quality Assurance

TrakMotive lists this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline replacement parts.
