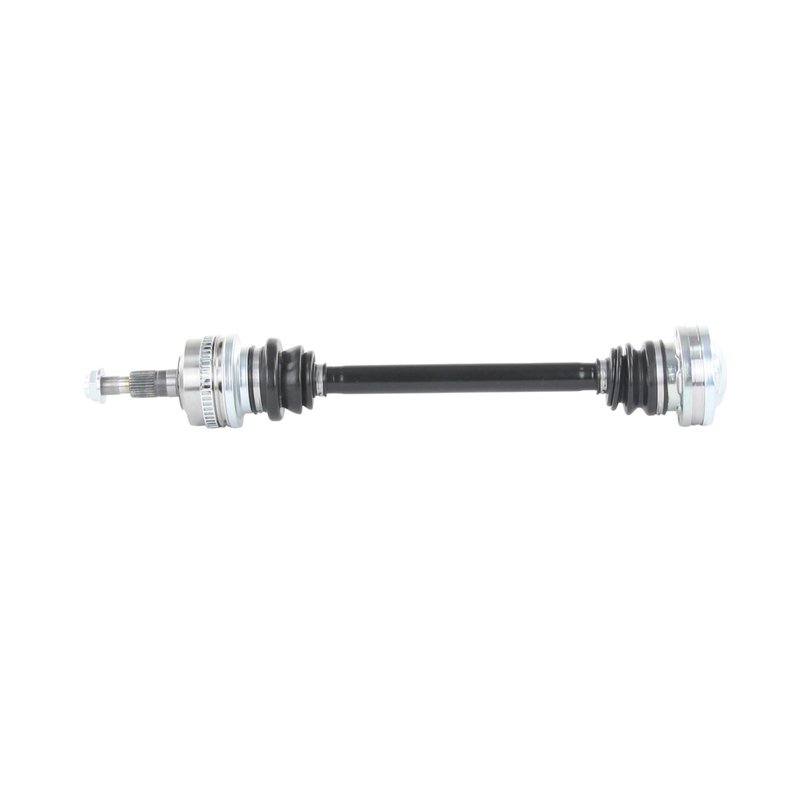

TrakMotive VW-86063 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche 911

TrakMotive VW-86063 is a rear CV axle shaft for 2001-2005 Porsche 911 applications. It is built as an OEM-style axle to help maintain original ride quality while matching the driveline geometry used in these rear-wheel applications.

Key Features

• Fits 2001-2005 Porsche 911, rear
• OEM-style CV axle shaft for original ride quality retention
• Premium-grade driveline component for rear axle service
• Outboard joint type: conventional
• Outboard spline count: 28
• Outboard joint bolt holes: 6
• ABS ring tooth count: 48 with window-style ring
• Axle nut thread size: M22x1.5
• Axle nut hex size: 32 mm
• Overall compressed length: 563 mm; overall extended length: 635 mm

Detailed Description

TrakMotive VW-86063 is a rear CV axle shaft engineered for the Porsche 911 from 2001 through 2005. This axle shaft follows OEM-style construction to preserve the factory driving feel and driveline response expected in rear Porsche 911 service. The assembly uses a conventional outboard joint, a bolt-on inboard joint design, and a 48-tooth window-style ABS ring configuration. TrakMotive VW-86063 is a direct-fit driveline replacement for rear axle repair on the Porsche 911, 2001-2005.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for consistent fitment and application-specific geometry. For buyers searching for a Porsche 911 rear CV axle shaft, VW-86063 provides the key dimensions and spline counts needed to match the original setup. This part cross-references TrakMotive VW-86063 for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn CV joint during turns
• Vibration from a damaged or out-of-balance axle shaft
• Grease leakage from a failed axle boot or joint seal
• Excessive driveline play in the rear axle assembly
• ABS warning concerns related to a damaged tone ring setup

Installation Notes and Tips

Verify rear fitment by matching the axle nut thread size, spline count, ABS ring configuration, and compressed/extended length before installation. Confirm the vehicle is a 2001-2005 Porsche 911 rear application and compare the original axle dimensions to VW-86063. Because ABS axles fit non-ABS applications unless otherwise noted, confirm the vehicle’s ABS configuration before ordering.

Quality Assurance

TrakMotive manufactures this CV axle shaft as an ISO 9001:2008 and TS 16949:2009 certified company product. VW-86063 is backed by a limited lifetime warranty.
