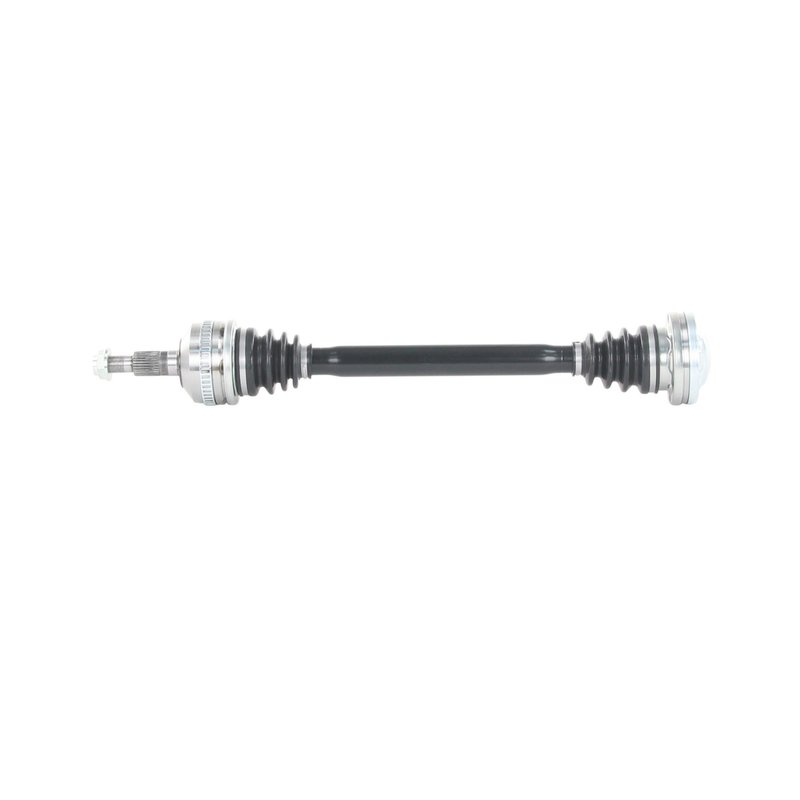

TrakMotive VW-86065 CV Axle Shaft - Rear

Rear CV Axle Shaft for Porsche 911

TrakMotive VW-86065 is a premium rear CV axle shaft for select Porsche 911 applications. It is built for 2002-2003 and 2005 Porsche 911 rear fitments and follows an OEM-style axle design to help maintain original ride quality.

This CV axle shaft is engineered with a 28-spline outboard joint, 48-tooth ABS window ring, and a 32 mm axle nut socket size. TrakMotive VW-86065 is a direct driveline service part for rear Porsche 911 axle replacement needs.

Key Features

• Fits 2002-2003 Porsche 911, rear
• Fits 2005 Porsche 911, rear
• OEM-style axle construction for original ride quality
• Premium-grade CV axle shaft from TrakMotive
• Outboard joint type: conventional
• Inboard joint type: bolt-on
• ABS ring tooth count: 48 with window-style ring
• Outboard splines: 28
• Overall compressed length: 26.69 in. (678 mm)
• Overall extended length: 29.5 in. (750 mm)

Detailed Description

TrakMotive VW-86065 is a rear CV axle shaft for Porsche 911 models that require an OEM-style driveline replacement. It is listed for 2002-2003 Porsche 911 rear applications and 2005 Porsche 911 rear applications, making it a focused solution for Porsche 911 axle service. The axle uses a conventional outboard joint, a bolt-on inboard joint, and a 28-spline outboard connection for proper driveline engagement.

Additional specifications include a 48-tooth ABS window ring, no ABS tone ring included, and an M22x1.5 axle nut thread size with a 32 mm hex size. TrakMotive VW-86065 is part of the TrakMotive CV Axle Shaft line, a driveline product line centered on replacement axle assemblies for passenger vehicles.

This part cross-references TrakMotive (e.g., VW-86065) for the same application.

Common Replacement Uses

• Rear axle shaft replacement for Porsche 911 driveline wear
• Correction of clicking or popping from a worn CV joint
• Replacement for axle vibration during acceleration
• Service for torn or failed axle shaft components
• Restoration of rear driveline operation on Porsche 911 models

Installation Notes and Tips

Verify rear fitment by year before ordering: 2002-2003 Porsche 911 and 2005 Porsche 911. Confirm axle nut thread size, hex size, spline count, and ABS ring configuration against the original part before installation. The axle nut is not included, so reuse or source the correct hardware separately as needed.

Because this axle is listed as an OEM-style replacement, proper torque procedures and inspection of surrounding suspension and hub components are important during installation. Check the vehicle’s ABS configuration and compare the original axle length to the listed compressed and extended dimensions.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
