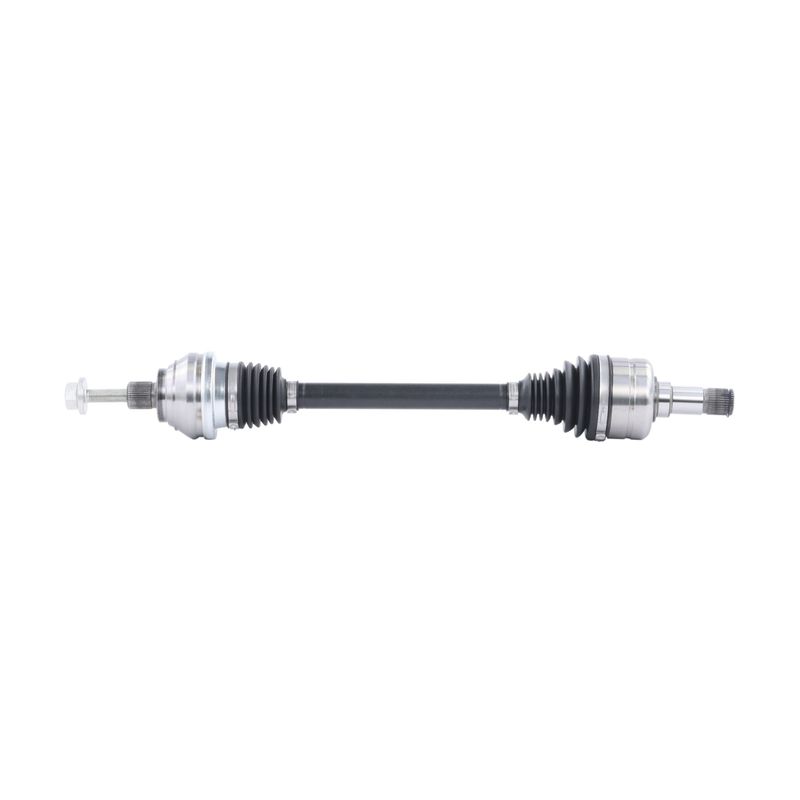

TrakMotive VW-86076 CV Axle Shaft - Rear Left
| Brand | TrakMotive VW-86076 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.94 |
| Overall Compressed Length (mm) | 634 |
| Overall Extended Length (In) | 26.38 |
| Overall Extended Length (mm) | 670 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 3 vehicles |
OE-style replacement. Direct-fit CV axle shaft for the listed driveline application.
Thermoplastic boots. Built with durable boot material at both joint ends.
Quality certified. Manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive VW-86076 for the same application. See all 1.
CV axle shaft for Volkswagen ID.4
This TrakMotive CV axle shaft is built for a direct replacement application on the rear left side of compatible vehicles. It is identified by part number VW-86076 and is specified for the Volkswagen ID.4 with standard duty replacement fitment.
Key features
- Thermoplastic inboard and outboard boot materials for consistent joint protection.
- Male inboard joint with spline connection style for application-specific fitment.
- Audi-style spline bolt outboard joint design for the listed vehicle application.
- ABS axle configuration for non-ABS applications unless otherwise noted.
- Overall compressed length of 24.94 in. and extended length of 26.38 in.
Product details
The VW-86076 CV axle shaft is engineered for the rear left position on the 2021-2023 Volkswagen ID.4. It uses a 37-spline inboard connection and a 38-spline outboard connection, along with a single-bolt outboard shaft attachment and M16x1.5 axle bolt thread specification. These details matter when matching the axle to the original driveline layout and ensuring proper engagement at the hub and transmission side.
TrakMotive identifies this axle shaft as part of its CV axle shaft line, with fitment focused on standard duty replacement needs. The part number VW-86076 should be verified against the vehicle’s original axle configuration before installation.
What this part helps address
- Clicking or popping noises from a worn CV joint.
- Vibration during acceleration from a damaged axle assembly.
- Grease leakage caused by torn or deteriorated boots.
- Driveline play from worn spline engagement surfaces.
- Loss of smooth power transfer through the axle assembly.
Installation notes and tips
Confirm rear left fitment, spline counts, and axle bolt specifications before installation. This axle is listed for non-ABS applications unless otherwise noted, so ABS equipment should be checked carefully against the vehicle build. Use the part number VW-86076 and the vehicle’s original axle dimensions to verify match-up before service.
Quality assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The company also states ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Volkswagen | ID.4 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Volkswagen | ID.4 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Volkswagen | ID.4 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
