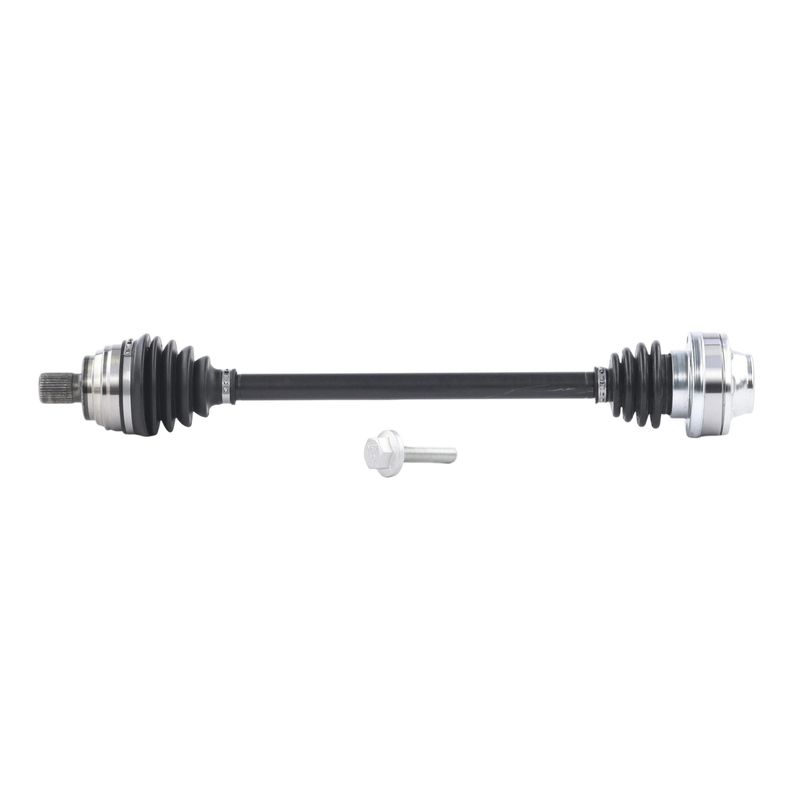

TrakMotive VW-86081 CV Axle Shaft - Rear Left
| Brand | TrakMotive VW-86081 |
|---|---|
| Position | Rear Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Type | Allen |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Audi style spline bolt |
| Overall Compressed Length (in) | 24 |
| Overall Compressed Length (mm) | 610 |
| Overall Extended Length (in) | 25.38 |
| Overall Extended Length (mm) | 645 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 2 vehicles |
Premium-grade replacement. Built as a CV axle shaft for driveline service and fitment-specific repair.
Bolt-on connection design. Uses bolt-on inboard and Audi-style spline bolt outboard interfaces.
Neoprene boot material. Boots at both joints help protect the axle assembly from contamination.
Cross-references TrakMotive VW-86081 for the same application. See all 1.
Overview
TrakMotive VW-86081 is a rear left CV axle shaft for the Volkswagen Taos. It is built as a premium driveline replacement with bolt-on connections and non-ABS axle configuration details that match the listed application.
Fits 2022-2023 Volkswagen Taos, rear left. The VW-86081 part number is also useful for shoppers comparing a direct replacement for the same application.
Key Features
- Premium-grade CV axle shaft for driveline service
- Bolt-on inboard joint and bolt-on shaft connection style
- 36 outboard splines for the listed fitment
- Neoprene boot material at both joints for durable sealing
- Non-ABS axle configuration with no tone ring included
- Overall compressed length: 24 in. / 610 mm
- Overall extended length: 25.38 in. / 645 mm
Detailed Description
This TrakMotive CV axle shaft, part number VW-86081, is engineered for the rear left position on the Volkswagen Taos. The axle uses a bolt-on inboard joint, an Audi-style spline bolt outboard connection, and a 36-spline outboard design to match the specified driveline layout. Neoprene boot material is used at both joints, and the axle is listed without an ABS tone ring for non-ABS applications.
For buyers searching for a Volkswagen Taos rear left CV axle shaft, VW-86081 provides the fitment-specific details needed for replacement planning. The axle bolt uses a 27 mm hex size with M16x1.5 thread specification, and the overall length measurements are provided for application matching. TrakMotive VW-86081 is a direct reference for the listed Taos application.
This part cross-references TrakMotive VW-86081 for the same application.
What It Is Used For
- Replacing a worn or damaged CV axle shaft
- Restoring driveline transfer at the rear left corner
- Addressing clicking, vibration, or binding from axle wear
- Correcting fitment issues on non-ABS axle applications
- Matching the specified spline, bolt, and length requirements
Installation Notes and Tips
Verify the rear left position, non-ABS configuration, spline count, and axle length before installation. Confirm axle bolt thread size, hex size, and joint connection style against the removed part to ensure the correct match for the Volkswagen Taos. Professional installation is recommended for driveline components.
Quality Assurance
TrakMotive lists this axle shaft as a premium replacement and identifies the company as ISO 9001:2008 and TS 16949:2009 certified. The product is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Volkswagen | Taos | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Volkswagen | Taos | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
