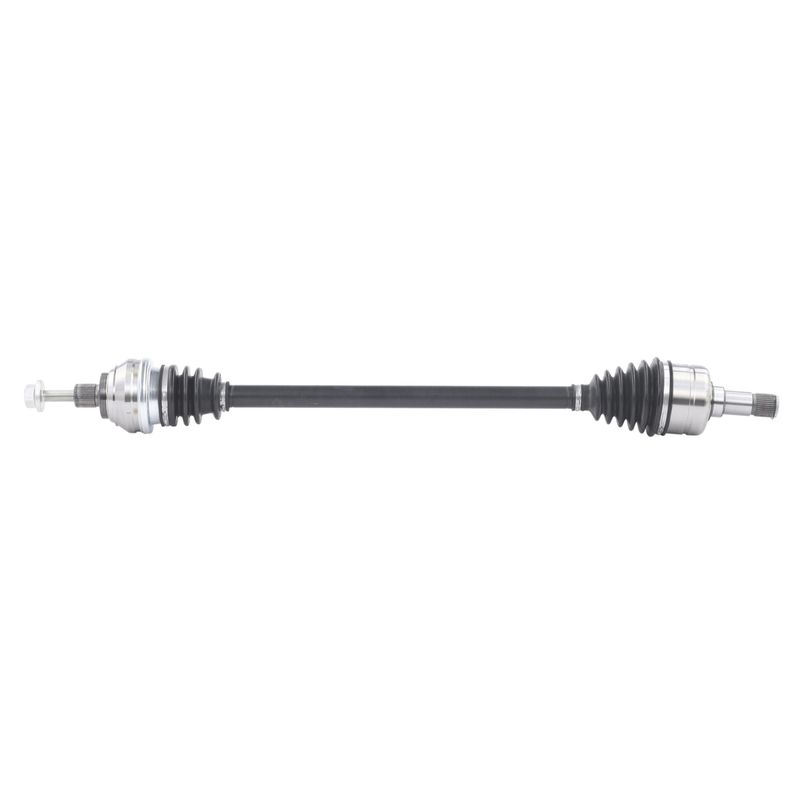

TrakMotive VW-86082 CV Axle Shaft - Rear Right
| Brand | TrakMotive VW-86082 |
|---|---|
| Position | Rear Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 38 |
| Outboard Bolt Head Type | Allen |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Audi style spline bolt |
| Overall Compressed Length (in) | 33.81 |
| Overall Compressed Length (mm) | 860 |
| Overall Extended Length (in) | 35.25 |
| Overall Extended Length (mm) | 895 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 3 vehicles |
Premium grade. Built as a service replacement CV axle shaft with application-specific fitment.
Neoprene boots. Inboard and outboard boot material helps protect the joints from contamination.
Warranty backed. TrakMotive lists a limited lifetime warranty and certified manufacturing standards.
Cross-references TrakMotive VW-86082 for the same application. See all 1.
CV Axle Shaft Overview
The TrakMotive VW-86082 CV axle shaft is a premium driveline replacement for select Volkswagen ID.4 applications. It is built for rear right fitment and uses Audi-style spline bolt connections with neoprene boots for a precise, service-focused design.
Key Features
- Fits 2021-2023 Volkswagen ID.4, rear right.
- Premium-grade CV axle shaft for driveline service.
- Inboard and outboard neoprene boots help protect the joints.
- 37 inboard splines and 38 outboard splines for application-specific fitment.
- Includes an Audi-style spline bolt outboard joint design.
- ABS tone ring is not included for non-ABS applications.
Detailed Description
TrakMotive VW-86082 is a CV axle shaft engineered for the rear right position on the Volkswagen ID.4. The axle uses a male inboard joint with spline connection, an Audi-style spline bolt outboard connection, and premium construction details that match the needs of a direct driveline replacement. The part number VW-86082 is the reference to verify when matching the correct axle for your vehicle.
This part cross-references TrakMotive VW-86082 for the same application.
Common Replacement Issues
- Clicking or popping noises during acceleration or turning.
- Vibration from a worn or damaged axle assembly.
- Torn CV boots that expose the joints to contamination.
- Excessive play from worn splines or joint wear.
Installation Notes
Confirm rear right fitment before installation and verify spline count, bolt style, and axle length against the original part. This axle uses a 27 mm axle bolt hex size, M16x1.5 thread, and an 86 mm axle bolt length. The axle nut is not included.
Quality Assurance
TrakMotive identifies this axle as a premium replacement and states that it is backed by a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Volkswagen | ID.4 | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Volkswagen | ID.4 | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Volkswagen | ID.4 | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
