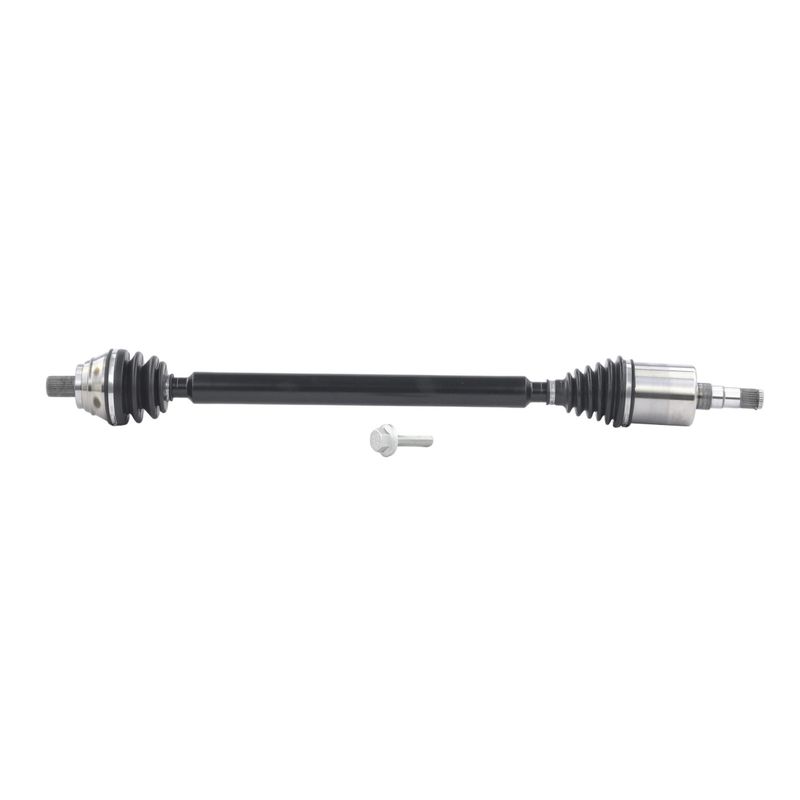

TrakMotive VW-86089 CV Axle Shaft - Front Left
| Brand | TrakMotive VW-86089 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Type | Allen |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Audi style spline bolt |
| Overall Compressed Length (in) | 35.69 |
| Overall Compressed Length (mm) | 906 |
| Overall Extended Length (in) | 38.13 |
| Overall Extended Length (mm) | 968 |
| Product line | AAR CV Axle Shaft |
| Fits | Volkswagen · 2 vehicles |
OE-style design. AAR CV axle shaft with application-specific spline bolt connection.
Neoprene boot material. Built with flexible joint protection at both ends of the axle.
Quality certified. Manufactured by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive VW-86089 for the same application. See all 1.
Overview
The TrakMotive VW-86089 is an AAR CV axle shaft built for the front left position on compatible Volkswagen Taos applications. It uses a premium-grade construction with neoprene boots and an Audi-style spline bolt connection for a direct-fit driveline replacement.
Fits 2022-2023 Volkswagen Taos, front left. This part number is VW-86089.
Key Features
- Premium-grade CV axle shaft for driveline service and replacement
- Neoprene inboard and outboard joint boots for flexible joint protection
- 26 inboard splines and 36 outboard splines for the specified application
- ABS tone ring not included for non-ABS applications unless otherwise noted
- Axle bolt specification: M16x1.5 thread, 27 mm hex, 86 mm length
Detailed Description
TrakMotive VW-86089 is an AAR CV axle shaft engineered for the front left side of the Volkswagen Taos. The axle uses a male inboard joint with spline connection and an Audi-style spline bolt outboard joint, matching the listed OE-style configuration for the application. Overall compressed length is 35.69 inches, and overall extended length is 38.13 inches. The part number VW-86089 is the reference to verify before ordering.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific driveline replacement parts with the connection style and joint design needed for proper axle service. For buyers searching for a Volkswagen Taos front left CV axle shaft, VW-86089 provides the listed fitment and hardware interface details in one replacement assembly.
This part cross-references TrakMotive VW-86089 for the same application.
Common Uses
- Replacing a worn or noisy CV axle shaft
- Addressing vibration during acceleration
- Correcting clicking or binding from a damaged joint
- Restoring driveline connection after boot or spline wear
Installation Notes
Verify the vehicle’s ABS and non-ABS configuration before installation. Confirm axle bolt thread size, hex size, and overall length against the removed part. This axle is listed for the front left position only and should be matched to the exact application details shown in the fitment data.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The company is certified to ISO 9001:2008 and TS 16949:2009 quality standards.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Volkswagen | Taos | FWD | 1.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Volkswagen | Taos | FWD | 1.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
