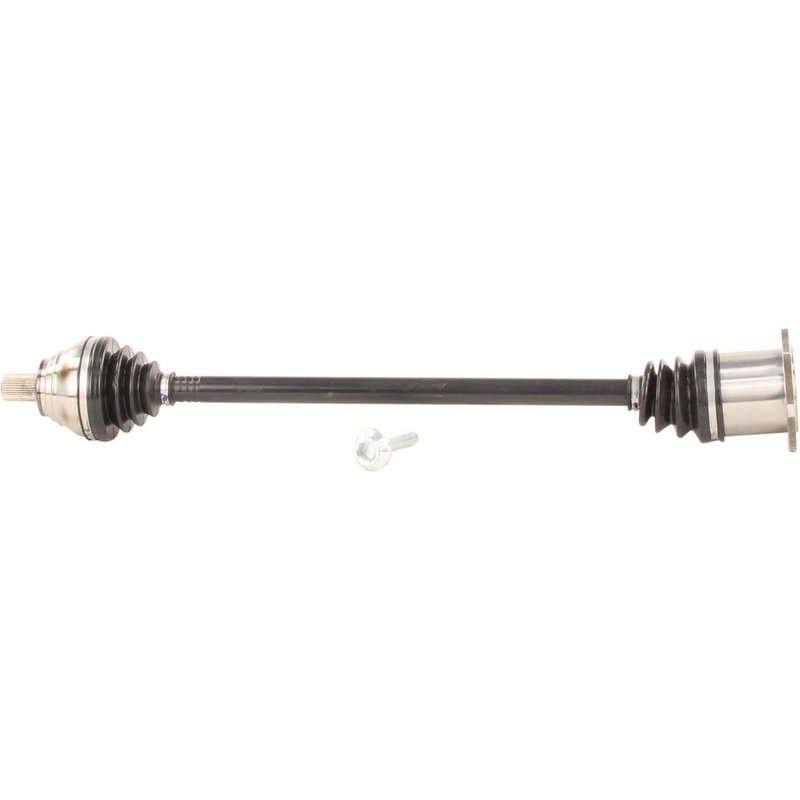

TrakMotive VW-8723 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft VW-8723

The TrakMotive CV Axle Shaft VW-8723 is designed for reliable driveline performance in select Audi and Volkswagen vehicles. Engineered as a new replacement part, it ensures proper fit and function for models like the Audi A3 and Volkswagen Golf SportWagen.

• Compatible with Audi A3, Volkswagen Golf, and Golf SportWagen
• New CV Axle Shaft with neoprene boot material for durability
• Inboard joint features a flange connection style
• Outboard joint uses Audi style spline bolt with 36 splines
• Axle bolt specifications: 17mm hex size, 90mm length, M16*1.5 thread size
• Overall compressed length of 755 mm (29.72 inches)
• Does not include ABS tone ring or axle nut

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for European vehicles. This line emphasizes compatibility and quality materials, such as neoprene boots and flange-style inboard joints, to maintain drivetrain integrity and reduce wear. The VW-8723 part exemplifies these standards, providing a direct replacement for specific Audi and Volkswagen models.

Technical Description and Features

This CV axle shaft is constructed with a neoprene boot that offers resistance to environmental factors and helps maintain joint lubrication. The inboard joint uses a flange connection style with a single bolt hole, ensuring secure attachment to the transmission flange. The outboard joint features an Audi style spline bolt with 36 splines, designed to fit precisely with the wheel hub assembly. The axle bolts have a 17mm hex size, 90mm length, and M16*1.5 thread size, matching factory specifications for proper torque and fitment. The overall compressed length of 755 mm (29.72 inches) aligns with OEM dimensions for the compatible vehicles.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Audi A3 and Volkswagen Golf models
• Addresses issues such as clicking noises during turns caused by joint wear
• Resolves vibration or shuddering from axle imbalance or joint failure
• Fixes grease leaks due to torn or degraded CV boots
• Restores driveline stability and smooth power transfer to the wheels

Installation Notes and Tips

• Verify vehicle compatibility with Audi A3, Volkswagen Golf, or Golf SportWagen before installation
• Ensure proper torque settings for axle bolts: 17mm hex, M16*1.5 thread
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Use appropriate tools to avoid damage to the flange and spline connections
• Check for proper boot seating to prevent contamination and premature wear

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft VW-8723 is a new, not remanufactured, component built to meet or exceed OEM specifications. Manufactured with durable neoprene boots and precision-machined joints, it supports reliable driveline performance. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
