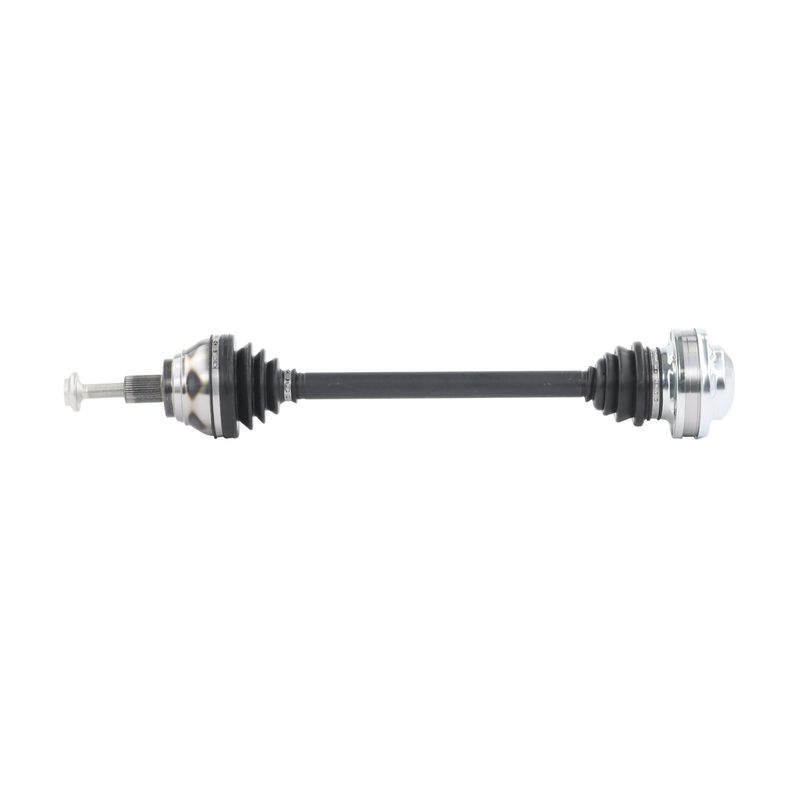

TrakMotive VW-8778 CV Axle Shaft - Front Right
| Brand | TrakMotive VW-8778 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 85 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Type | Allen |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Audi style spline bolt |
| Overall Compressed Length (in) | 24 |
| Overall Compressed Length (mm) | 609 |
| Overall Extended Length (in) | 25.44 |
| Overall Extended Length (mm) | 646 |
| Product line | CV Axle Shaft |
| Fits | Volkswagen · 2 vehicles |
OE-style replacement. Bolt-on CV axle shaft with premium-grade construction for driveline service.
Neoprene boot material. Inboard and outboard joints use durable boot material for sealed operation.
Certified manufacturing. Produced under ISO 9001:2008 and TS 16949:2009 quality systems.
Cross-references TrakMotive VW-8778 for the same application. See all 1.
CV Axle Shaft for Volkswagen Taos
This TrakMotive CV axle shaft, part number VW-8778, is built for a direct driveline replacement on compatible applications. It is listed for the front right position on the Volkswagen Taos and uses bolt-on connection styles with premium-grade construction.
- Fits 2022-2023 Volkswagen Taos, front right.
- Premium-grade CV axle shaft for driveline service and replacement.
- Neoprene boot material on the inboard and outboard joints.
- Outboard joint uses an Audi-style spline bolt design with 36 splines.
- ABS tone ring is not included for non-ABS applications.
Product Details
The VW-8778 is a TrakMotive CV axle shaft engineered around bolt-on joint connections and OE-style driveline geometry. Key dimensions include a 24-inch compressed length and 25.44-inch extended length, along with a 17 mm axle bolt hex size and M16x1.5 thread size. The axle uses a 6-bolt inboard joint pattern and an outboard joint with an Audi-style spline bolt interface. This part cross-references TrakMotive VW-8778 for the same application.
Common Replacement Issues
- Clicking or popping during turns from worn CV joints.
- Vibration under acceleration caused by axle wear.
- Torn boots that allow grease loss and contamination.
- Driveline noise from damaged splines or joint interfaces.
Installation Notes
Verify front right fitment before ordering and confirm the axle bolt thread size, spline count, and overall length against the original shaft. This axle is specified without an ABS tone ring and is intended for non-ABS applications unless otherwise noted in the vehicle listing. Check the axle nut requirement separately, as an axle nut is not included.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty and identifies the manufacturing program as ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Volkswagen | Taos | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Volkswagen | Taos | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
