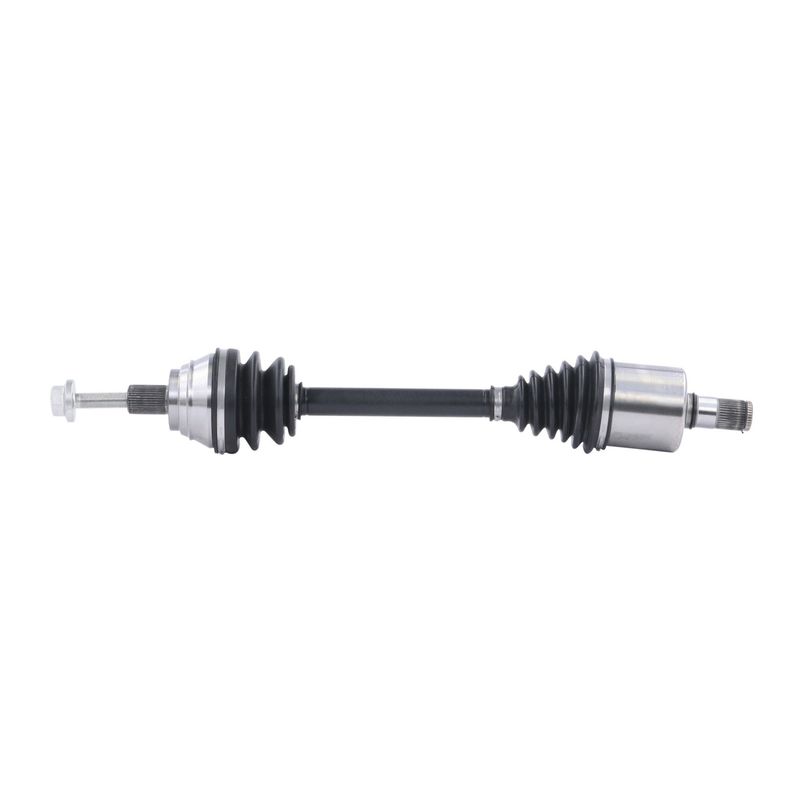

TrakMotive VW-8910 CV Axle Shaft - Front Left

Overview

The TrakMotive VW-8910 is an AAR CV axle shaft built for the front left position on compatible Volkswagen driveline applications. It is specified for 2022-2023 Volkswagen Taos, front left, and uses an OE AAR design for direct replacement service.

This CV axle shaft is built with premium-grade components, neoprene boots, and Audi-style spline bolt connections. The TrakMotive VW-8910 also carries a limited lifetime warranty and comes from a company certified to ISO 9001:2008 and TS 16949:2009 standards.

• Fits 2022-2023 Volkswagen Taos, front left.
• OE AAR design for direct replacement service.
• Premium-grade construction with neoprene boot material.
• Inboard and outboard spline-bolt connection design.
• Limited lifetime warranty from TrakMotive.

Key Features

• Part number VW-8910 for streamlined identification and ordering.
• 37 inboard splines and 36 outboard splines for the specified application.
• 27 mm axle bolt hex size with M16x1.5 thread specification.
• ABS tone ring not included for non-ABS applications unless otherwise noted.
• Overall compressed length of 22.38 in and extended length of 24.44 in.

Detailed Description

The TrakMotive VW-8910 CV axle shaft is engineered for driveline service where a front left replacement is required on the Volkswagen Taos. Its AAR CV axle shaft configuration follows the OE-style layout noted in the product line, with male inboard joint construction, Audi-style spline bolt outboard connection, and neoprene boot materials at both joints. The VW-8910 part number is useful when matching the axle to the correct application and verifying the replacement against existing service information.

TrakMotive identifies this AAR CV Axle Shaft line as a premium-grade replacement option, and the company states certification to ISO 9001:2008 and TS 16949:2009 quality standards. This part cross-references TrakMotive VW-8910 for the same application.

Common Replacement Needs

• Clicking or popping noises during turns from a worn CV axle.
• Vibration or shudder under acceleration from driveline wear.
• Torn axle boots that expose the joint to contamination.
• Excessive play or binding in the axle assembly.
• Loss of smooth power transfer through the driveline.

Installation Notes

Verify fitment by year, make, model, and front left position before installation. Confirm the axle bolt hex size, thread size, and spline counts against the original part to ensure proper application. This axle is specified without an ABS tone ring, so it should be matched to non-ABS applications unless otherwise noted in the vehicle service data.

Quality Assurance

TrakMotive lists a limited lifetime warranty for this CV axle shaft. The brand also states ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
