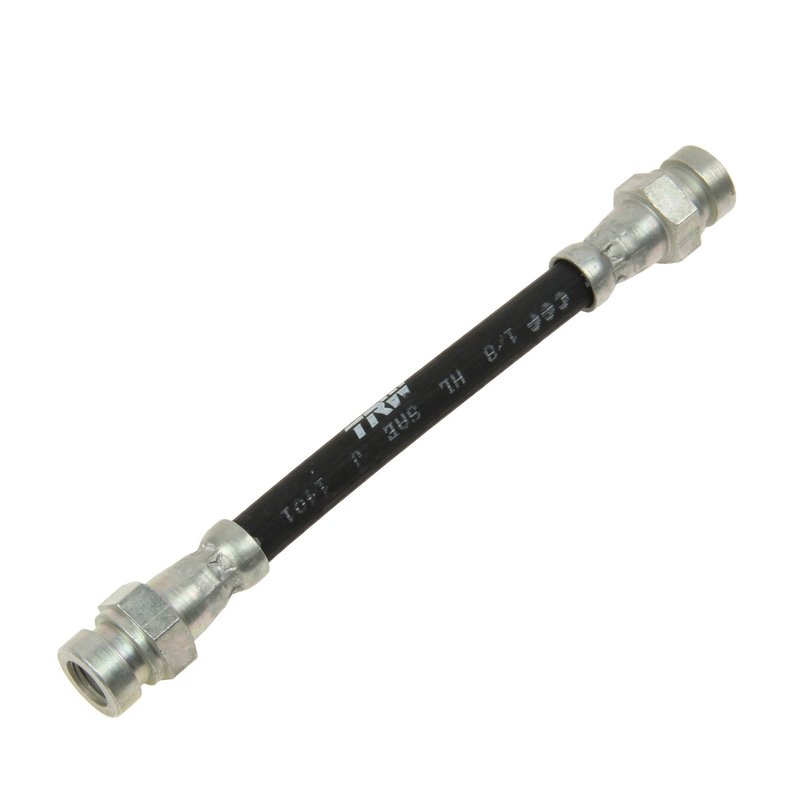

TRW PHA292 Brake Hydraulic Hose
| Brand | TRW PHA292 |
|---|---|
| Position | Rear Left, Rear Right, Rear Left Inner, Rear Right Inner, and Rear |
| DOT Approved | Yes |
| Color | Black |
| Outer Sleeve Material | Epdm rubber |
| Grommets Included | No |
| Bracket Included | No |
| Grade Type | Standard replacement |
| Shield Included | No |
| Axis 1 Length | 160 |
| End 1 Fitting Material | Metal |
| End 2 Fitting Material | Metal |
| Teflon Lined | No |
| Hose Material | Epdm rubber |
| Overall Length | 160 |
| End 1 Thread Size | M10 - 1.0 |
| Fits | Volkswagen · 17 vehicles |
Standard replacement. Built to meet or exceed OE standards for a direct-fit brake hose.
Low expansion design. Helps deliver shorter stopping times and a firmer pedal feel.
Zinc-coated fittings. Resist rust while keeping brake fluid flowing freely.
Cross-references 1H0611775 for the same application. See all 1.
TRW Brake Hydraulic Hose PHA292
TRW PHA292 is a standard replacement brake hydraulic hose built for consistent fluid transfer and stable pedal response. It is a DOT approved hose with EPDM rubber construction and metal end fittings, made for rear brake applications on select Volkswagen models.
Key Features
- Part number: PHA292
- Brake hydraulic hose for rear brake circuits
- DOT approved
- Black EPDM rubber outer sleeve and hose material
- Metal end fittings with M10 - 1.0 thread size
- 160 overall length
- Standard replacement grade
- 100% zinc coated end fittings for corrosion resistance
- Four-layer fabric construction for flexibility and chemical resistance
Detailed Description
TRW PHA292 is engineered to meet demanding OE-style brake hose requirements while supporting reliable brake fluid flow. The hose construction uses EPDM rubber and multi-layer reinforcement to help maintain flexibility and resist exposure to atmosphere, fuels, and grease. TRW also specifies zinc-coated end fittings to help protect against rust and maintain free flow through the brake line. This part number, PHA292, is a direct-fit hydraulic hose for rear left, rear right, rear, rear left inner, and rear right inner positions on listed Volkswagen applications, including Volkswagen Cabrio, Volkswagen Golf, and Volkswagen Jetta.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Vehicle Fitment
- Fits 2001-2002 Volkswagen Cabrio, rear left, with 10 x 155mm disc
- Fits 1995-1996 Volkswagen Cabrio, rear left, with 10 x 155mm disc
- Fits 2000 Volkswagen Cabrio, rear right, with 10 x 155mm disc
- Fits 1997-1998 Volkswagen Cabrio, rear right, with 10 x 155mm disc
- Fits 1999 Volkswagen Cabrio, rear
- Fits 1998-1999 Volkswagen Jetta, rear left inner, with 10 x 155mm disc
- Fits 1995 Volkswagen Jetta, rear left inner, with 10 x 155mm disc
- Fits 1998 Volkswagen Golf, rear right inner, with 10 x 155mm disc
- Fits 1997 Volkswagen Golf, rear right, with 10 x 155mm disc
- Fits 1997 Volkswagen Jetta, rear right inner, with 10 x 155mm disc
- Fits 1996 Volkswagen Golf, rear left, with 10 x 155mm disc
- Fits 1996 Volkswagen Jetta, rear left, with 10 x 155mm disc
- Fits 1995 Volkswagen Golf, rear right
Installation Notes and Tips
Confirm the rear brake position and disc configuration before installation. Inspect the mating hard lines, banjo or threaded connections, and sealing surfaces for wear or corrosion before connecting the new hose. After installation, bleed the brake system thoroughly and verify there are no leaks, twists, or contact points that could affect hose movement.
Quality Assurance
TRW brake hoses are produced to meet or exceed OE standards and are built to SAE J1401 and FMVSS 106 specifications. The hose is also tested to deliver low volumetric expansion, which supports firmer pedal feel and more consistent stopping response.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Volkswagen | Cabrio | GL | — | — | Rear Left | With 10 x 155mm disc |
| 2001 | Volkswagen | Cabrio | GLS | — | — | Rear Left | With 10 x 155mm disc |
| 2000 | Volkswagen | Cabrio | GLS | — | — | Rear Right | With 10 x 155mm disc |
| 1999 | Volkswagen | Cabrio | Base | — | — | Rear | — |
| 1999 | Volkswagen | Jetta | TDI | 1.9L | L4 | Rear Left Inner | With 10 x 155mm disc |
| 1998 | Volkswagen | Cabrio | Base | — | — | Rear Right | With 10 x 155mm disc |
| 1998 | Volkswagen | Golf | GTI VR6 | — | — | Rear Right Inner | With 10 x 155mm disc |
| 1998 | Volkswagen | Jetta | TDI | — | — | Rear Left Inner | With 10 x 155mm disc |
| 1997 | Volkswagen | Cabrio | High Line | — | — | Rear Right | With 10 x 155mm disc |
| 1997 | Volkswagen | Golf | GL | 2.0L | L4 | Rear Right | With 10 x 155mm disc |
| 1997 | Volkswagen | Jetta | GLS | 2.0L | L4 | Rear Right Inner | With 10 x 155mm disc |
| 1996 | Volkswagen | Cabrio | Base | 2.0L | L4 | Rear Left | With 10 x 155mm disc |
| 1996 | Volkswagen | Golf | GL | 2.0L | L4 | Rear Left | With 10 x 155mm disc |
| 1996 | Volkswagen | Jetta | GLS | 2.0L | L4 | Rear Left | With 10 x 155mm disc |
| 1995 | Volkswagen | Cabrio | Base | 2.0L | L4 | Rear Left | With 10 x 155mm disc |
| 1995 | Volkswagen | Golf | Celebration Edition | 2.0L | L4 | Rear Right | — |
| 1995 | Volkswagen | Jetta | Celebration Edition | 2.0L | L4 | Rear Left Inner | With 10 x 155mm disc |
| No rows match your filter. | |||||||
