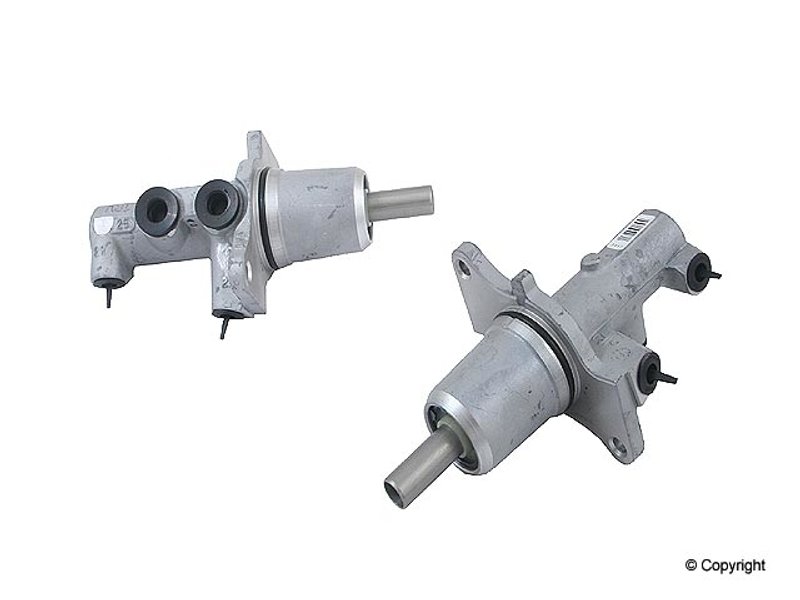

TRW PML440 Brake Master Cylinder

Reliable Brake Master Cylinder for Dodge Sprinter 2500 and 3500

The TRW PML440 brake master cylinder is engineered to provide consistent hydraulic pressure for your Dodge Sprinter 2500 and Sprinter 3500 models. Designed with precision, this component ensures dependable braking performance without the need for an integrated reservoir or booster.

• Constructed from durable aluminum for long-lasting strength
• Includes dust boot and gasket or seal for protection and leak prevention
• Features a straight bore type with a 25.4 mm master cylinder bore diameter
• Equipped with two pistons and two ports for efficient brake fluid flow
• Mounts securely with two mounting holes and M12 - 1.0 primary outlet thread size

Technical Details and Specifications

The TRW PML440 brake master cylinder is designed without a reservoir or brake booster, making it suitable for vehicles that utilize separate components for these functions. Its aluminum construction offers corrosion resistance and durability under demanding conditions. The master cylinder features a straight bore type with a 25.4 mm diameter, accommodating two pistons to manage brake fluid pressure effectively. Included dust boot and gasket or seal help maintain system integrity by preventing contamination and fluid leaks. This part has two mounting holes and two ports, with a primary outlet thread size of M12 - 1.0, ensuring compatibility with the brake lines on Dodge Sprinter 2500 and 3500 models.

Common Applications and Problem Resolution

• Restores proper hydraulic pressure in brake systems for Dodge Sprinter 2500 and 3500
• Replaces worn or leaking master cylinders causing brake fluid loss
• Addresses spongy or unresponsive brake pedal issues
• Eliminates brake fluid contamination by providing a sealed piston assembly
• Supports brake system maintenance and safety compliance

Installation Notes and Tips

When installing the TRW PML440 brake master cylinder, ensure the brake system is properly bled to remove air and maintain hydraulic integrity. Since the reservoir and brake booster are not included, verify compatibility with your existing components. Use appropriate tools to secure the master cylinder with the two mounting holes and connect brake lines to the M12 - 1.0 threaded ports. Inspect dust boots and seals during installation to prevent leaks and contamination.

Quality Assurance and Warranty

Manufactured by TRW, a recognized name in automotive brake components, the PML440 brake master cylinder meets industry standards for performance and durability. The aluminum construction and included seals contribute to reliable operation. Warranty coverage details should be confirmed with the original equipment provider or distributor.
