Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

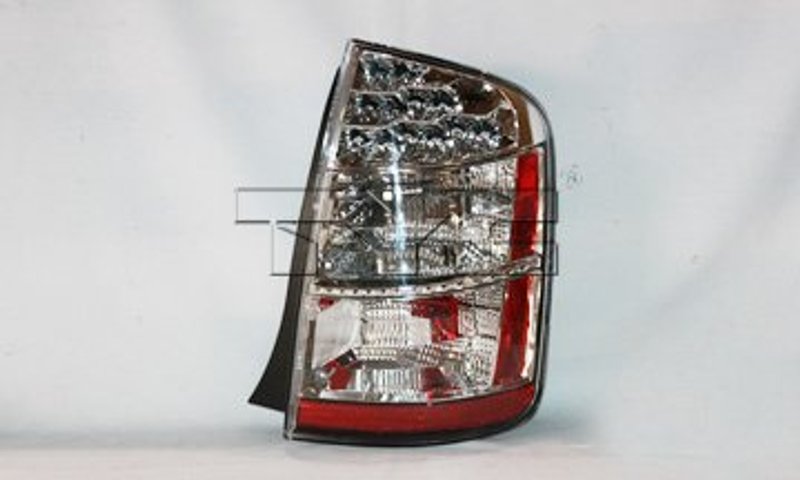

TYC 11-6243-01 Tail Light Assembly - Right
| Brand | TYC 11-6243-01 |
|---|---|
| Position | Right |
| Back-up Lamp Bulb Included | No |
| Back-up Lamp Bulb Type | Halogen W21W |
| Brake Lamp Bulb Included | No |
| Brake Lamp Bulb Type | Halogen W21W |
| Bulb Type | LED |
| Bulbs Included | No |
| Components Included | Lens And Housing |
| Hardware Included | No |
| Housing Material | ABS Plastic |
| Lens Color | Red, Clear |
| Lens Material | PMA Plastic |
| Other Side | 11-6244-01 |
| Rear Side Marker Lamp Bulb Included | No |
| Rear Side Marker Lamp Bulb Type | Halogen W5W |
| Rear Turn Signal Bulb Included | No |
| Rear Turn Signal Bulb Type | Halogen WY21W |
| Tail Lamp Bulb Included | YES |
| Tail Lamp Bulb Type | LED |
| Product line | TYC Regular |
| Fits | Toyota · 7 vehicles |
LED tail light assembly. Includes lens and housing for a complete replacement.
Red and clear lens. Provides a clean, factory-style lighting appearance.
ABS housing. Durable construction with a PMA plastic lens.
Cross-references Partslink TO2819136 and Toyota 81551-47100 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Right Tail Light Assembly for Prius
This TYC tail light assembly is a direct replacement for the right rear lamp on 2006-2009 Toyota Prius models. It combines the lens and housing in a single exterior lighting unit and uses LED tail lamp lighting with halogen bulb positions for the remaining rear functions.
TYC Regular parts are built for straightforward OE-style replacement, and this application matches the right side of the Toyota Prius with the correct lens color, mounting layout, and connector-style component arrangement for the listed vehicles.
Key Features
- Fits 2006-2009 Toyota Prius, right rear position
- TYC Regular part number 11-6243-01
- Lens and housing included
- Red and clear lens color
- LED tail lamp bulb type
- Housing material: ABS plastic
- Lens material: PMA plastic
- Rear turn signal bulb type: Halogen WY21W
- Brake lamp bulb type: Halogen W21W
- Back-up lamp bulb type: Halogen W21W
- Rear side marker lamp bulb type: Halogen W5W
- Tail lamp bulb included: Yes
Detailed Description
TYC 11-6243-01 is a right tail light assembly for the Toyota Prius, covering 2006, 2007, 2008, and 2009 model years. It is built with an ABS plastic housing and PMA plastic lens in red and clear, and it includes the lens and housing for a complete exterior lamp replacement on the passenger side. This part cross-references Toyota 81551-47100 and Partslink TO2819136 for the same application.
Use this assembly when replacing a damaged, faded, or non-functioning right rear lamp on a Prius. The unit supports LED tail lamp operation and the specified halogen bulb types for brake, reverse, side marker, and rear turn signal functions.
Common Reasons for Replacement
- Cracked or broken right rear lens
- Water intrusion or moisture inside the lamp
- Dim, failed, or inconsistent rear lighting
- Damage from rear-end impact or parking lot contact
- Faded lens appearance on a Toyota Prius
Installation Notes and Tips
Verify right-side placement before installation and compare the connector layout, lens shape, and bulb locations to the original lamp. Transfer or install the required bulbs as needed, since bulbs are not broadly included for every function. Confirm the Toyota Prius fitment by model year and position before final assembly.
Quality Assurance
TYC Regular replacement lighting is produced to match the listed OE-style application for the Toyota Prius. Part number 11-6243-01 is cataloged for the right rear position on 2006-2009 Prius models, with fitment and cross-reference data aligned to the original equipment application.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Toyota | Prius | Touring | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| 2009 | Toyota | Prius | Base | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| 2008 | Toyota | Prius | Base | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| 2008 | Toyota | Prius | Touring | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| 2007 | Toyota | Prius | Touring | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| 2007 | Toyota | Prius | Base | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| 2006 | Toyota | Prius | Base | Hatchback | Right | Components included: Lens and Housing; Other Side: 11-6244-01; TYC Regular |
| No rows match your filter. | ||||||
