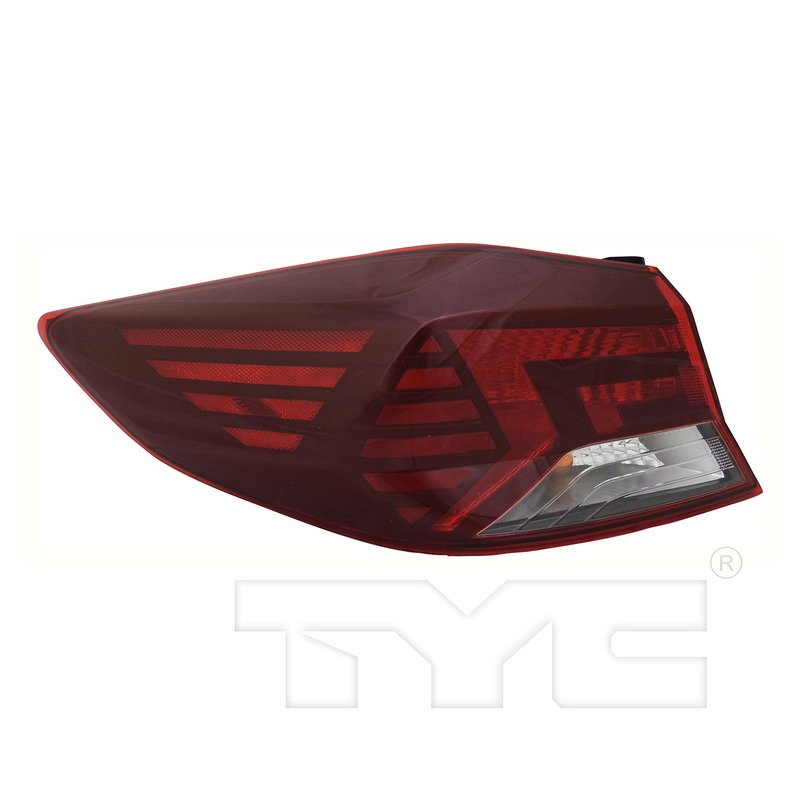

TYC 11-9084-00-9 Tail Light Assembly - Left Outer
| Brand | TYC 11-9084-00-9 |
|---|---|
| Position | Left Outer |
| Brake Lamp Bulb Included | YES |
| Brake Lamp Bulb Type | Halogen P28/8W(2357) |
| Bulb Type | Halogen |
| Bulbs Included | YES |
| Components Included | Complete Assembly |
| Hardware Included | No |
| Housing Material | PC+ABS Plastic |
| Lens Color | Red, Clear |
| Lens Material | PMMA Plastic |
| Notes 1 | USA BUILT |
| Other Side | 11-9083-00-9 |
| Rear Side Marker Lamp Bulb Included | YES |
| Rear Side Marker Lamp Bulb Type | Halogen W5W |
| Rear Turn Signal Bulb Included | YES |
| Rear Turn Signal Bulb Type | Halogen PY27W(1156A) |
| Remarks | On Body |
| Tail Lamp Bulb Included | YES |
| Tail Lamp Bulb Type | Halogen P28/8W(2357) |
| Product line | CAPA Certified |
| Fits | Hyundai · 8 vehicles |
CAPA Certified. Meets recognized certification standards for exterior lighting quality.
Complete assembly. Includes bulbs and housing for a ready-to-install replacement.
USA built. Manufactured in the United States for dependable fit and finish.
Cross-references Hyundai 92401-F3500 and Partslink HY2804159 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Left Outer Tail Light for Hyundai Elantra
This TYC CAPA Certified tail light assembly is built for the left outer position on the body of 2019-2020 Hyundai Elantra models. It includes the bulbs and arrives as a complete assembly for a direct replacement approach.
Key Features
- Fits 2019-2020 Hyundai Elantra, left outer
- CAPA Certified replacement tail light assembly
- Complete assembly with bulbs included
- Red and clear lens design
- Halogen bulb type
- Lens material: PMMA plastic
- Housing material: PC+ABS plastic
- USA built
- Part number: 11-9084-00-9
Product Details
TYC 11-9084-00-9 is a left outer tail light assembly for the Hyundai Elantra. It is configured for on-body mounting and uses halogen lighting components, including the brake lamp bulb, rear side marker lamp bulb, rear turn signal bulb, and tail lamp bulb. The red and clear lens design and molded plastic housing are specified for exterior lighting replacement on 2019-2020 Hyundai Elantra applications. This part cross-references Hyundai 92401-F3500 and Partslink HY2804159 for the same application.
Common Issues This Part Addresses
- Cracked or broken tail light lens
- Dim or non-functioning rear lighting
- Water intrusion from a damaged lamp assembly
- Failed brake, tail, turn signal, or side marker bulb circuit in the lamp
- Restoring rear lighting after collision damage
Installation Notes and Tips
Verify the vehicle is a 2019-2020 Hyundai Elantra with the left outer, on-body tail lamp configuration before ordering. Compare the connector, mounting points, and lamp shape to the original unit, and transfer any vehicle-specific wiring or trim components as needed. Confirm bulb type and position match the original assembly during installation.
Quality Assurance
TYC CAPA Certified lighting parts are built to meet documented replacement standards for fit and function. This USA-built assembly is intended for direct exterior lighting replacement on the specified Hyundai Elantra applications.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Hyundai | Elantra | Value Edition | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2020 | Hyundai | Elantra | SE | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2020 | Hyundai | Elantra | SEL | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2020 | Hyundai | Elantra | Eco | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2019 | Hyundai | Elantra | Eco | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2019 | Hyundai | Elantra | SE | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2019 | Hyundai | Elantra | SEL | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
| 2019 | Hyundai | Elantra | Value Edition | Sedan | Left Outer | On Body; Halogen Type; Bulb Type: Halogen; USA BUILT; CAPA Certified |
