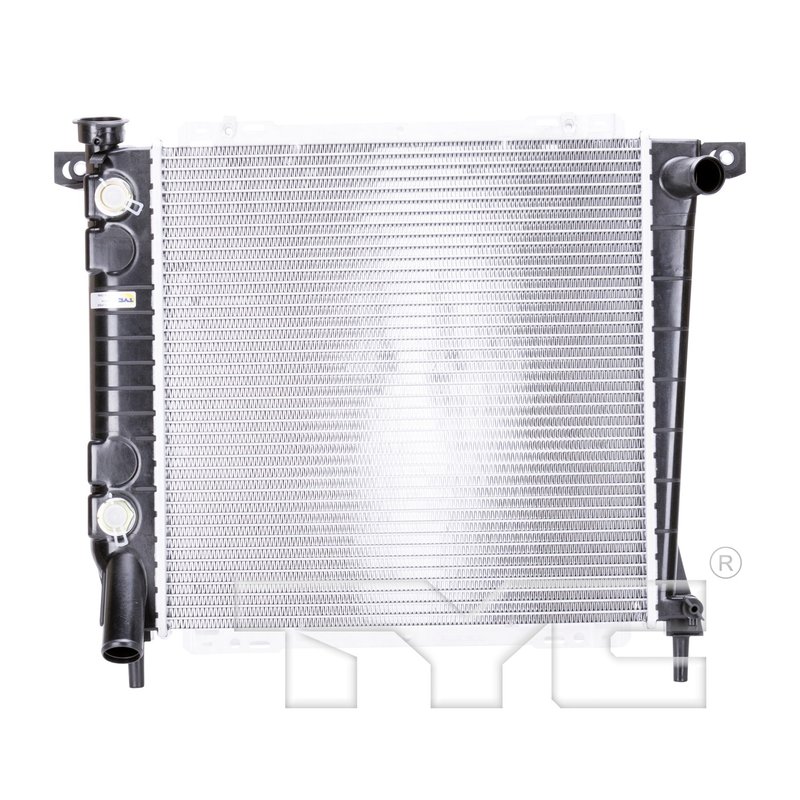

TYC 1164 Radiator

Overview of the TYC Radiator 1164 for Ford and Mazda Vehicles

The TYC Radiator 1164 is engineered to provide reliable cooling performance for select Ford and Mazda models, including the B4000, Explorer, Navajo, and Ranger. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under various driving conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1-row core configuration
• Core dimensions: 18.11 inches height, 17.99 inches length, and 2.2 inches thickness
• Fin count of 48 every 4 inches with 0.35 inch fin wave height
• Inlet and outlet hose clamp connections with diameters of 1.42 and 1.50 inches respectively
• Includes OC adapters (5/8"-18 UNF and 1/2-20 UNF) and clip for secure installation

Detailed Features of the TYC Radiator 1164

This radiator features a robust aluminum core that ensures efficient heat transfer and durability. The crossflow flow configuration optimizes coolant circulation, while the single-row core with 41 tubes and 42 total fin rows provides balanced cooling capacity. The integrated concentric transmission oil cooler supports transmission fluid temperature regulation, which is critical for vehicle longevity. The inlet and outlet connections utilize hose clamps with precise diameters to ensure a secure fit. Additionally, the included OC adapters and clip facilitate proper attachment and compatibility with the vehicle’s cooling system.

TYC Radiator Product Line Information

The TYC Radiator product line focuses on delivering reliable cooling solutions tailored to specific vehicle applications. Radiators in this line are designed with quality materials and precise engineering to meet or exceed OEM specifications. The TYC Radiator 1164 exemplifies this approach by combining durable aluminum construction with integrated transmission cooling features, making it suitable for Ford and Mazda trucks and SUVs.

Compatible Vehicles and Common Applications

• Replacement radiator for Ford B4000 models requiring efficient engine cooling
• Cooling system upgrade for Ford Explorer vehicles with transmission oil cooler needs
• Suitable for Mazda Navajo models to maintain optimal engine temperature
• Fits Ford Ranger trucks requiring a durable radiator with transmission oil cooling

Installation Notes and Tips

When installing the TYC Radiator 1164, ensure all hose clamps are securely fastened to prevent leaks. Verify compatibility with your vehicle’s transmission oil cooler connections, utilizing the included OC adapters as needed. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow. It is recommended to inspect all related hoses and clamps for wear during replacement.

Quality Assurance and Warranty

TYC Radiator 1164 is manufactured to meet stringent quality standards, using corrosion-resistant aluminum core material and tested for durability. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
