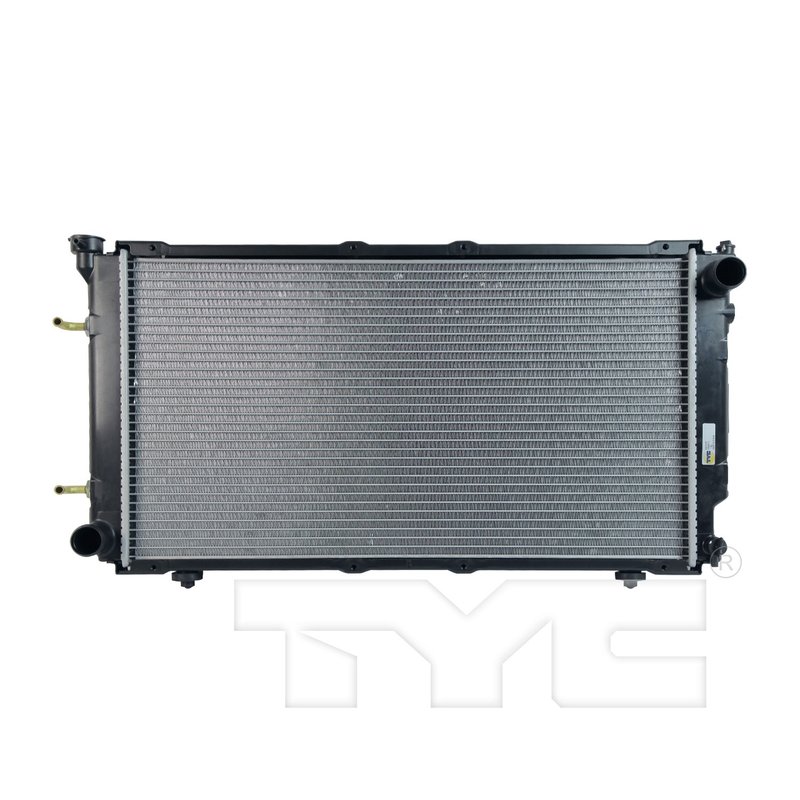

TYC 1183 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 1183 Radiator

Brand TYC 1183
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric oil cooler
Engine Oil Cooler Included No
Bottom Header 1.84x15.08
Core Height (in) 14.21
Core Length (in) 26.38
Core Thickness (in) 0.63
Fin Count (every 4") 64
Fin Wave Height (in) 0.35
Find Wave Pitch 3.2
Flow Configuration Crossflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.50
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.50
Toc Distance (in) 7.87
Top Header 1.84x15.08
Total Fin Row Count 33
Total Tube Count 32
Tube Count (every 4") 10
Tube Width X Height 16x2
Product line TYC Radiator
Fits Subaru · 10 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Concentric oil cooler. Built with an integrated transmission oil cooler for added cooling support.

Crossflow design. Engineered for steady coolant flow through the radiator.

Cross-references APDI 8011183, CSF 3391 and DENSO 221-9218 for the same application. See all 10.

$117.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $117.20
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Subaru Legacy

The TYC Radiator 1183 is a direct-fit cooling replacement for 1990-1994 Subaru Legacy models. Built with an aluminum core and a crossflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling needs.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Crossflow radiator layout
  • Transmission oil cooler included
  • Concentric oil cooler type
  • Hose clamp inlet and outlet connections
  • 1.50 in. inlet and outlet diameters
  • Fits 1990-1994 Subaru Legacy, N/A

Product Details

TYC Radiator 1183 is engineered for 1990-1994 Subaru Legacy applications and matches the listed core dimensions for proper fitment. The radiator uses a single-row aluminum core with a 26.38 in. core length, 14.21 in. core height, and 0.63 in. core thickness. It also features a concentric transmission oil cooler, making it a practical replacement for Legacy cooling systems that route transmission fluid through the radiator. This part cross-references Spectra Premium CU1183 for the same application.

Common Cooling System Issues

  • Leaking radiator tanks or core seams
  • Restricted coolant flow from internal buildup
  • Transmission fluid temperature concerns in radiator-cooled systems
  • Overheating caused by reduced heat dissipation
  • Damaged inlet or outlet hose connections

Installation Notes and Tips

Verify the inlet and outlet hose diameter, transmission cooler connection style, and overall core dimensions before installation. Inspect radiator hoses, clamps, and coolant condition during replacement, and confirm the vehicle uses the same transmission oil cooler configuration. For best results, flush the cooling system before installing the new radiator and refill with the correct coolant mixture after installation.

Quality Assurance

TYC manufactures replacement cooling components with application-specific fitment and dimensional accuracy in mind. This radiator is listed for 1990-1994 Subaru Legacy models and follows the specified OE-style configuration for the application.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
1994SubaruLegacyManual2.2LH4N/ATYC Radiator
1994SubaruLegacyAutomatic2.2LH4N/ATYC Radiator
1993SubaruLegacyAutomatic2.2LH4N/ATYC Radiator
1993SubaruLegacyManual2.2LH4N/ATYC Radiator
1992SubaruLegacyAutomatic2.2LH4N/ATYC Radiator
1992SubaruLegacyManual2.2LH4N/ATYC Radiator
1991SubaruLegacyAutomatic2.2LH4N/ATYC Radiator
1991SubaruLegacyManual2.2LH4N/ATYC Radiator
1990SubaruLegacyAutomatic2.2LH4N/ATYC Radiator
1990SubaruLegacyManual2.2LH4N/ATYC Radiator
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8011183CSF — 3391DENSO — 221-9218Partslink — SU3010131Silla Cooling — 7409Spectra Premium — CU1183Subaru — 45199AA101TYC — SB37006AVista Pro — 431289Visteon — 9753
