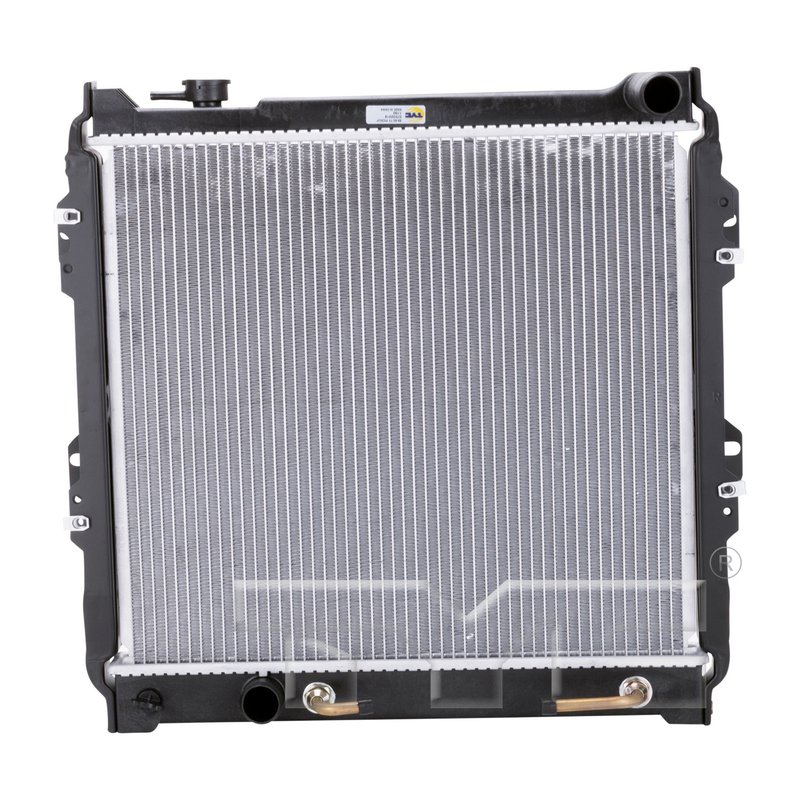

TYC 1190 Radiator

Overview of the TYC Radiator 1190 for Toyota Pickup

The TYC Radiator 1190 is designed specifically for Toyota Pickup models, providing reliable cooling performance with integrated transmission oil cooling. Engineered with an aluminum core and a concentric transmission oil cooler, this radiator supports efficient heat dissipation to maintain optimal engine temperatures.

• Core material constructed from durable aluminum
• Includes concentric transmission oil cooler for enhanced cooling
• Downflow design with 1-row core configuration
• Core dimensions: 18.82 inches height, 17.72 inches length, 1.26 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.38 and 1.40 inches respectively
• 64 fins per 4 inches with a fin wave height of 0.31 inches
• 47 total tubes with a tube size of 32x2 inches
• Compatible with Toyota Pickup vehicles

Detailed Features of the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering dependable cooling solutions tailored to specific vehicle applications. This radiator model 1190 incorporates a concentric transmission oil cooler, which is integrated within the aluminum core to provide efficient heat exchange for both engine coolant and transmission fluid. The downflow flow configuration supports effective coolant circulation, while the single-row core design balances cooling capacity with compact size. TYC Radiators are engineered to meet OEM specifications, ensuring proper fit and function for Toyota Pickup models.

Technical Specifications and Design Details

This radiator features a 2.63x20.53 inch top and bottom header, supporting structural integrity and fluid flow. The fin count of 64 per 4 inches and a total of 48 fin rows optimize heat dissipation. The fin wave pitch of 3.2 inches and wave height of 0.31 inches contribute to airflow efficiency. The inlet and outlet connections use hose clamps with diameters of 1.38 and 1.40 inches, respectively, facilitating secure hose attachment. The transmission oil cooler inlet and outlet use tube fittings sized at 0.39 inches, designed for concentric oil cooling integration. The radiator’s core thickness of 1.26 inches and total tube count of 47 provide a balance of cooling surface area and flow capacity.

Common Applications and Problem Solving

• Replaces failing or leaking radiators in Toyota Pickup vehicles
• Addresses overheating issues caused by inefficient cooling
• Restores proper transmission fluid temperature control with integrated oil cooler
• Solves coolant leaks due to corrosion or physical damage
• Improves engine performance by maintaining optimal operating temperatures

Installation Notes and Tips

When installing the TYC Radiator 1190, ensure all hose clamps are securely fastened to prevent leaks. Verify compatibility with your Toyota Pickup model year before installation. The downflow design requires proper orientation for coolant flow direction. Inspect transmission oil cooler lines for wear and replace if necessary to maintain system integrity. Bleed the cooling system after installation to remove air pockets and ensure efficient operation.

Quality Assurance and Warranty

TYC Radiators are manufactured to meet or exceed OEM standards, using high-quality aluminum cores and precision construction. This radiator model 1190 undergoes rigorous testing to ensure durability and performance. While specific warranty details are not provided here, TYC products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
