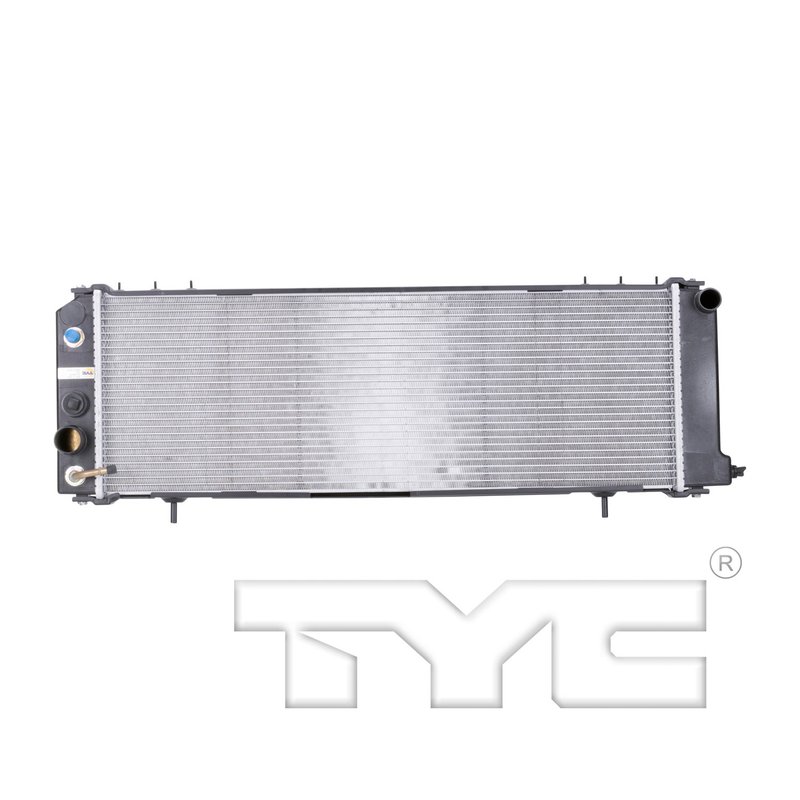

TYC 121 Radiator - Primary

Overview of the TYC Radiator 121 for Jeep Vehicles

The TYC Radiator part number 121 is engineered specifically for Jeep Cherokee, Comanche, and Wagoneer models. Designed with durable aluminum core material and a concentric transmission oil cooler, this radiator supports efficient engine cooling and transmission performance.

• Core material constructed from aluminum for effective heat dissipation
• Includes a concentric transmission oil cooler for integrated cooling
• Crossflow flow configuration enhances coolant circulation
• Core dimensions: 10.55 inches height, 31.02 inches length, and 1.26 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.50 and 1.26 inches respectively
• Single-row tube design with 26 total tubes and 64 fins per 4 inches for optimized airflow

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering reliable cooling components tailored to specific vehicle applications. This radiator model 121 integrates a concentric transmission oil cooler, which is designed to maintain transmission fluid temperatures within optimal ranges, reducing wear and improving longevity. The aluminum core and crossflow design contribute to consistent engine temperature regulation, making it suitable for Jeep Cherokee, Comanche, and Wagoneer vehicles.

Technical Specifications and Features

This radiator features a 2.98x11.33 inch top and bottom header, supporting structural integrity and coolant flow. The core includes 27 total fin rows with a fin wave height of 0.31 inches and a fin pitch of 3.2, which facilitates efficient heat exchange. The single-row tube configuration with 26 tubes sized 32x2 inches ensures proper coolant distribution. Hose clamp inlet and outlet connections simplify integration with existing cooling systems.

Applications and Common Issues Addressed

• Replacement for worn or leaking radiators in Jeep Cherokee, Comanche, and Wagoneer models
• Resolves overheating caused by inefficient heat dissipation
• Addresses transmission fluid overheating with integrated concentric oil cooler
• Improves coolant flow and reduces risk of engine damage due to thermal stress
• Suitable for vehicles requiring a crossflow radiator design

Installation Notes and Tips

Ensure compatibility with Jeep Cherokee, Comanche, and Wagoneer models before installation. The hose clamp inlet and outlet connections require proper hose sizing (1.50 inches inlet, 1.26 inches outlet) for secure attachment. Verify that the radiator core dimensions fit within the vehicle’s radiator support. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal performance.

Quality Assurance and Warranty

TYC Radiator part number 121 is manufactured to meet OEM standards for fit, form, and function. The aluminum core and integrated transmission oil cooler are designed for durability and consistent performance. Warranty information should be confirmed with the distributor or manufacturer, as it may vary by region.
