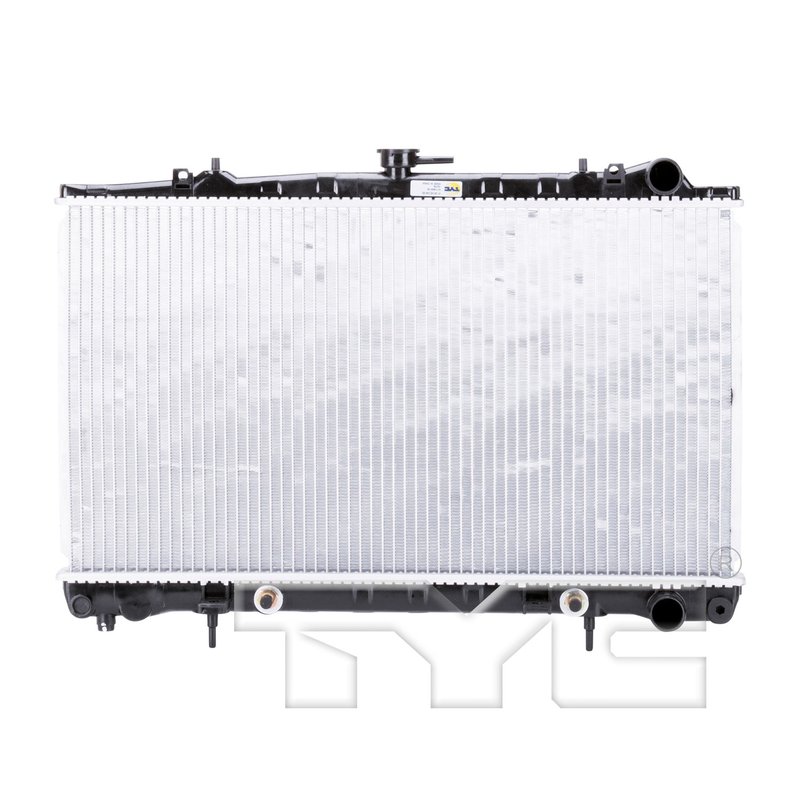

TYC 1276 Radiator
| Brand | TYC 1276 |
|---|---|
| Bottom Header | 1.99x26.54 |
| Core Height (in) | 25.47 |
| Core Length (in) | 14.09 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 11.81 |
| Top Header | 1.56x26.54 |
| Total Fin Row Count | 59 |
| Total Tube Count | 58 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Nissan · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8010046, CSF 3348 and DENSO 221-9219 for the same application. See all 9.
TYC Radiator for Nissan 240SX
The TYC Radiator 1276 is a direct-fit cooling replacement for select 1991-1994 Nissan 240SX applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling integration.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 25.47 in. height, 14.09 in. length, 0.63 in. thickness
- 1-row core layout with 58 total tubes and 59 total fin rows
- Fits Nissan 240SX radiator replacement applications
Product Details
TYC Radiator 1276 is engineered for 1991-1994 Nissan 240SX models and follows the OE-style layout for the cooling system. The aluminum core, downflow flow configuration, and integrated concentric transmission oil cooler support proper coolant and transmission fluid heat management in the original vehicle application. This radiator is a practical replacement choice when servicing a Nissan 240SX cooling system and is also referenced by cross numbers such as Spectra Premium CU1276 and Nissan 21460-53F01.
The TYC Radiator line focuses on replacement radiators built around application-specific dimensions and connection points. For this part, the inlet and outlet both use 1.38 in. hose clamp connections, and the core package is sized to match the listed fitment for the Nissan 240SX.
Common Problems This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted or inefficient heat exchange
- Transmission fluid temperature issues in vehicles with an integrated cooler
- Cracked or weakened plastic-and-metal cooling components
- Poor cooling performance from an aging Nissan 240SX radiator
Installation Notes and Tips
Fits 1991-1994 Nissan 240SX, N/A. Verify the radiator core dimensions, inlet and outlet hose size, and transmission cooler connection style before installation. Confirm that the vehicle uses the listed downflow configuration and concentric transmission oil cooler arrangement. Flush the cooling system, inspect hoses and clamps, and check for contamination in the transmission cooler circuit during replacement.
Quality Assurance
TYC manufactures replacement cooling components to match application-specific fitment and OE-style specifications for the listed vehicle coverage. Part number 1276 is built for the stated Nissan 240SX applications and follows the dimensional and connection details provided for accurate replacement selection.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Nissan | 240SX | 2.4L | L4 | N/A | TYC Radiator |
| 1993 | Nissan | 240SX | 2.4L | L4 | N/A | TYC Radiator |
| 1992 | Nissan | 240SX | 2.4L | L4 | N/A | TYC Radiator |
| 1991 | Nissan | 240SX | 2.4L | L4 | N/A | TYC Radiator |
