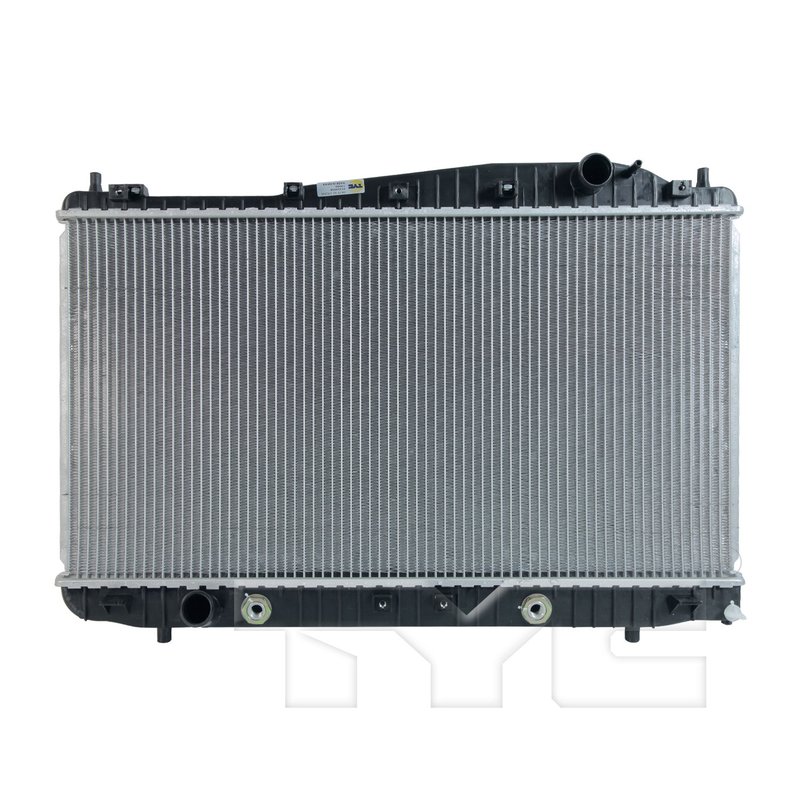

TYC 13000 Radiator
| Brand | TYC 13000 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.17x28.37 |
| Core Height (in) | 27.48 |
| Core Length (in) | 14.57 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.34 |
| Toc Distance (in) | 11.50 |
| Top Header | 1.98x28.37 |
| Total Fin Row Count | 70 |
| Total Tube Count | 69 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Suzuki · 3 vehicles |
Aluminum core. Lightweight construction helps transfer heat efficiently.
Transmission oil cooler included. Integrated plate cooler adds extra cooling capacity.
Hose clamp connections. Simple inlet and outlet hookups for a secure fit.
Cross-references APDI 8013000, DENSO 221-9220 and Partslink SZ3010136 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Suzuki Verona
The TYC Radiator 13000 is a direct-fit cooling replacement for 2004-2006 Suzuki Verona applications. Built with an aluminum core and a downflow design, it includes a transmission oil cooler with a plate-style cooler layout for vehicles equipped with automatic transmission cooling needs.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included
- Plate oil cooler type
- Hose clamp inlet and outlet connections
- 1.34 in. inlet and outlet diameters
- Core dimensions: 27.48 in. height, 14.57 in. length, 0.63 in. thickness
- Single-row core design with 69 total tubes
Detailed Description
TYC Radiator 13000 is engineered for 2004, 2005, and 2006 Suzuki Verona models and matches the OE-style cooling layout for this application. The aluminum core, 70 total fin rows, and 68 fins per 4 inches support heat dissipation, while the integrated transmission oil cooler helps manage automatic transmission fluid temperature through a plate cooler design. This radiator is a practical replacement for a leaking, clogged, or damaged unit on the Suzuki Verona.
This part cross-references DENSO 221-9220 for the same application.
What It Helps Address
- Coolant leaks from a cracked or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission fluid temperature issues tied to a failing cooler circuit
- Reduced cooling performance from damaged fins or tubes
- Fitment-related replacement needs on Suzuki Verona cooling systems
Installation Notes and Tips
Verify hose clamp connection sizing, inlet and outlet diameter, and overall core dimensions before installation. Confirm that the vehicle uses the correct downflow radiator layout and transmission cooler configuration. Flush the cooling system, inspect hoses and clamps, and check for contamination before installing the new radiator. Fits 2004-2006 Suzuki Verona, N/A.
Quality Assurance
TYC is a recognized aftermarket brand for replacement cooling components, and this radiator is built to match the listed application details for the Suzuki Verona. Confirm all fitment and connection points against the vehicle before installation.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Suzuki | Verona | Automatic | 2.5L | L6 | N/A | TYC Radiator |
| 2005 | Suzuki | Verona | Automatic | 2.5L | L6 | N/A | TYC Radiator |
| 2004 | Suzuki | Verona | Automatic | 2.5L | L6 | N/A | TYC Radiator |
