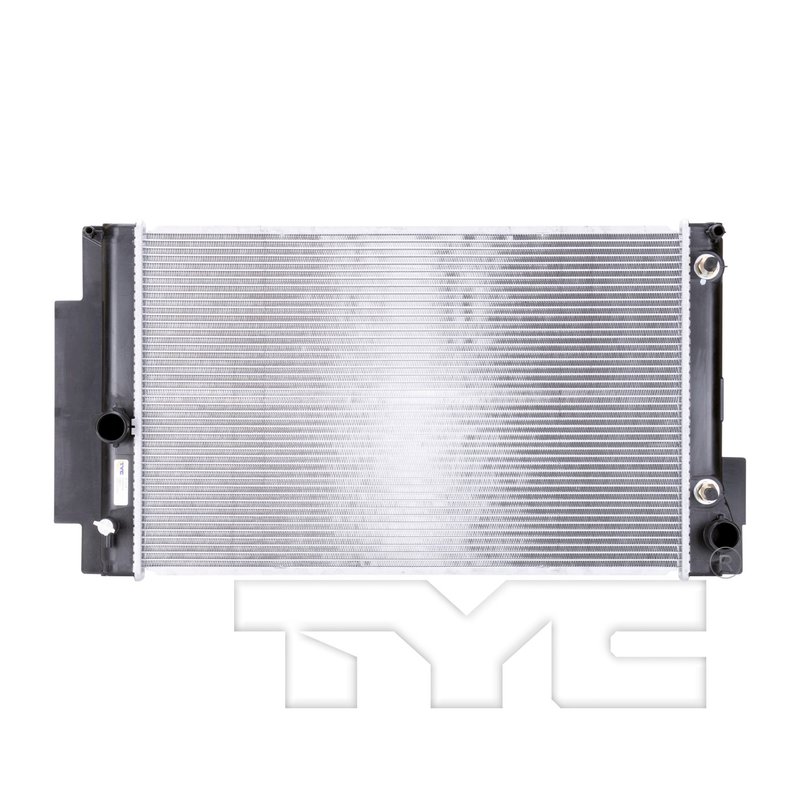

TYC 13001 Radiator - Primary

Overview of TYC Radiator 13001 for Scion xB

The TYC Radiator 13001 is engineered to provide reliable cooling performance for the Scion xB. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for integrated fluid cooling
• Crossflow flow configuration enhances coolant circulation
• Core dimensions: 14.63 inches height, 23.62 inches length, 1.02 inches thickness
• Inlet and outlet hose clamp connections with 1.36-inch diameter
• Single-row tube design with 44 tubes and 78 fins per 4 inches
• Compatible specifically with Scion xB models

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable materials and precise fitment, ensuring that each radiator, including part number 13001, integrates seamlessly with the vehicle’s cooling system. The inclusion of a concentric transmission oil cooler in this model highlights TYC’s commitment to combining multiple cooling functions in one unit.

Technical Specifications and Features

This radiator features an aluminum core that measures 14.63 inches in height, 23.62 inches in length, and 1.02 inches in thickness, providing a robust surface area for heat exchange. The crossflow design promotes efficient coolant flow across the core. It includes a concentric transmission oil cooler with tube fittings sized at 0.39 inches for both inlet and outlet, supporting transmission fluid temperature regulation. The radiator has a single row of 44 tubes and a total of 45 fin rows, with 78 fins every 4 inches, optimizing airflow and heat dissipation. Both inlet and outlet connections use hose clamps with a diameter of 1.36 inches, matching factory specifications for the Scion xB.

Common Applications and Problem Solving

• Replaces damaged or leaking radiators in Scion xB vehicles
• Addresses overheating issues caused by inefficient cooling
• Restores proper transmission fluid cooling with integrated oil cooler
• Solves coolant leaks from corroded or cracked radiator cores
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

Ensure compatibility with your Scion xB by verifying part number 13001 before installation. The radiator uses hose clamp connections for both inlet and outlet hoses, which should be securely tightened to prevent leaks. When installing, inspect the transmission oil cooler fittings and confirm proper tube fitting connections. It is recommended to flush the cooling system prior to installation to remove any debris and ensure optimal performance.

Quality Assurance and Warranty

TYC Radiator 13001 is manufactured to meet OEM standards, using high-quality aluminum core material and precise construction methods. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. For warranty information, consult the product documentation or manufacturer directly.
