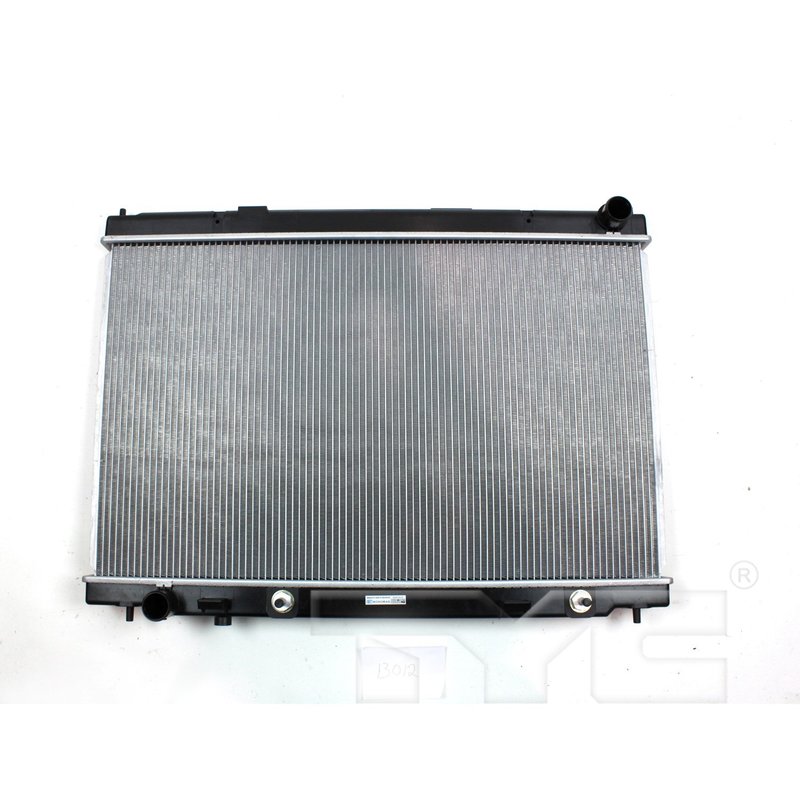

TYC 13012 Radiator

Overview of the TYC Radiator 13012 for Infiniti M35 and M45

The TYC Radiator 13012 is designed specifically for Infiniti M35 and M45 models, providing reliable cooling performance. This radiator features an aluminum core and includes a transmission oil cooler to support efficient engine and transmission operation.

• Core material constructed from durable aluminum
• Includes a plate-type transmission oil cooler
• Downflow design for optimized coolant flow
• Core dimensions: 28.68 inches height, 17.72 inches length, 0.63 inches thickness
• Hose clamp inlet and outlet connections with 1.42-inch diameter
• Single-row tube configuration with 87 total tubes
• Compatible with Infiniti M35 and M45 models

Detailed Features of the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering quality cooling components engineered for specific vehicle applications. The 13012 radiator integrates a plate oil cooler for transmission fluid, enhancing heat dissipation and maintaining optimal transmission temperatures. Its aluminum core construction ensures effective heat transfer and corrosion resistance, while the downflow flow configuration supports consistent coolant circulation. This radiator is designed to meet the exact fitment requirements of Infiniti M35 and M45 vehicles, ensuring proper installation and performance.

Technical Specifications and Design Details

This radiator features a 1.99 by 29.94 inch top and bottom header, supporting structural integrity and fluid distribution. The core includes 92 fins every 4 inches with a fin wave height of 0.25 inches and a pitch of 2.2, contributing to efficient heat exchange. The single-row tube design contains 87 tubes, each measuring 16 by 2 inches, facilitating effective coolant flow. The transmission oil cooler inlet and outlet use 0.31-inch tube fittings, integrated within the radiator to provide additional cooling for the transmission system. Both inlet and outlet connections for the coolant use hose clamps with a 1.42-inch diameter, compatible with factory hoses.

Common Applications and Problem Resolution

• Replaces damaged or leaking radiator in Infiniti M35 and M45
• Addresses overheating issues caused by inefficient cooling
• Restores proper transmission fluid temperature control with integrated oil cooler
• Solves coolant leaks from corroded or cracked radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

Ensure compatibility with Infiniti M35 and M45 models before installation. The radiator uses hose clamp connections for both inlet and outlet, so verify hose condition and replace if necessary. Properly secure the transmission oil cooler fittings to avoid leaks. Follow vehicle manufacturer torque specifications for mounting hardware. Bleed the cooling system after installation to remove air pockets and ensure optimal coolant flow.

Quality Assurance and Warranty

TYC Radiator 13012 is manufactured to meet OEM standards for fit, form, and function. The aluminum core construction provides corrosion resistance and durability. This radiator includes a transmission oil cooler designed to maintain transmission performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliability and longevity in automotive cooling applications.
