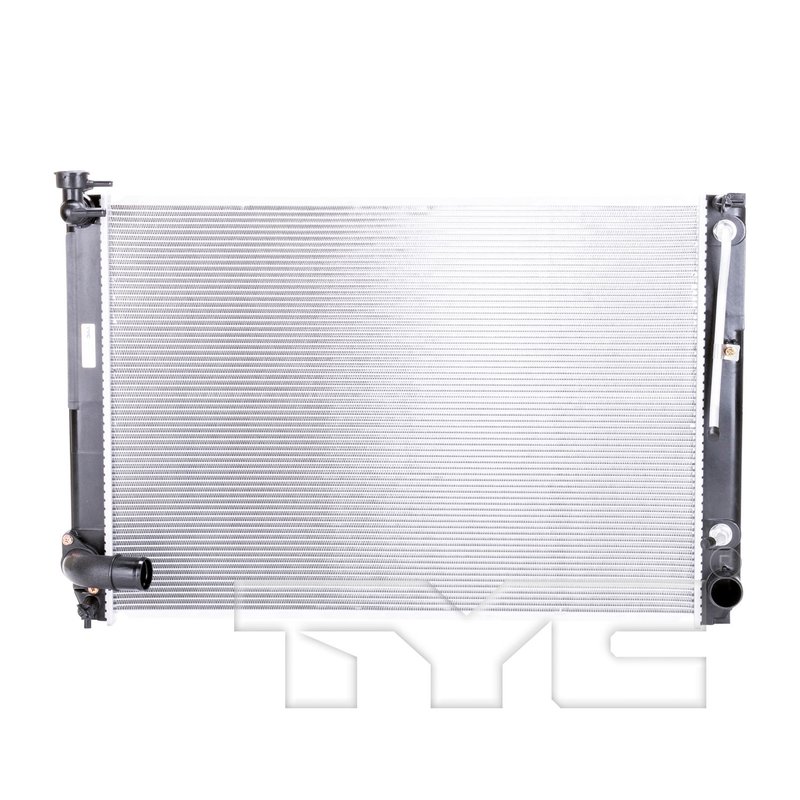

TYC 13019 Radiator
| Brand | TYC 13019 |
|---|---|
| Bottom Header | 1.72x20.02 |
| Core Height (in) | 18.66 |
| Core Length (in) | 26.57 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.87 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.52 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.52 |
| Toc Distance (in) | 13.78 |
| Toc Inlet Diameter (in) | 0.75 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.75 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.72x20.02 |
| Total Fin Row Count | 68 |
| Total Tube Count | 67 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 15 |
| Tube Width X Height | 22x2 |
| Product line | TYC Radiator |
| Fits | Lexus · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with a plate oil cooler for added cooling capacity.
Crossflow design. Helps coolant move through the radiator efficiently.
Cross-references APDI 8013019, CSF 3298 and DENSO 221-3165 for the same application. See all 9.
TYC Radiator for Lexus RX350
The TYC Radiator 13019 is a direct-fit cooling system replacement for 2007-2009 Lexus RX350 applications. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler with plate-style construction for integrated fluid cooling.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included
- Plate oil cooler type
- Single-row core design
- Hose clamp inlet and outlet connections
- Core dimensions: 26.57 in. length, 18.66 in. height, 0.87 in. thickness
- Inlet and outlet diameter: 1.52 in.
Product Details
TYC Radiator 13019 is engineered for the 2007-2009 Lexus RX350 and follows the OE-style cooling layout for this application. The aluminum core, crossflow flow configuration, and integrated transmission oil cooler support proper engine and transmission temperature management. With hose clamp connections and a single-row core, this radiator is built to match the factory-style fitment requirements of the Lexus RX350 cooling system.
This part cross-references DENSO 221-3165 and Spectra Premium CU13019 for the same application.
What This Radiator Helps Address
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked or corroded radiator components
- Transmission fluid temperature issues tied to a failing cooler circuit
- Poor heat dissipation from damaged core tubes or fins
- Cooling system service needs on a 2007-2009 Lexus RX350
Installation Notes and Tips
Fits 2007-2009 Lexus RX350. Verify inlet and outlet hose diameter, transmission cooler line connection type, and overall core dimensions before installation. Flush the cooling system, inspect hoses and clamps, and confirm proper coolant fill and bleed procedures after replacement. The TYC Radiator 13019 should be installed using the vehicle’s factory-style mounting and hose routing.
Quality Assurance
TYC is a recognized aftermarket brand for replacement cooling components, and this radiator is built to match the listed application and dimensional specifications for the Lexus RX350.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Lexus | RX350 | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2008 | Lexus | RX350 | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2007 | Lexus | RX350 | Automatic | 3.5L | V6 | N/A | TYC Radiator |
