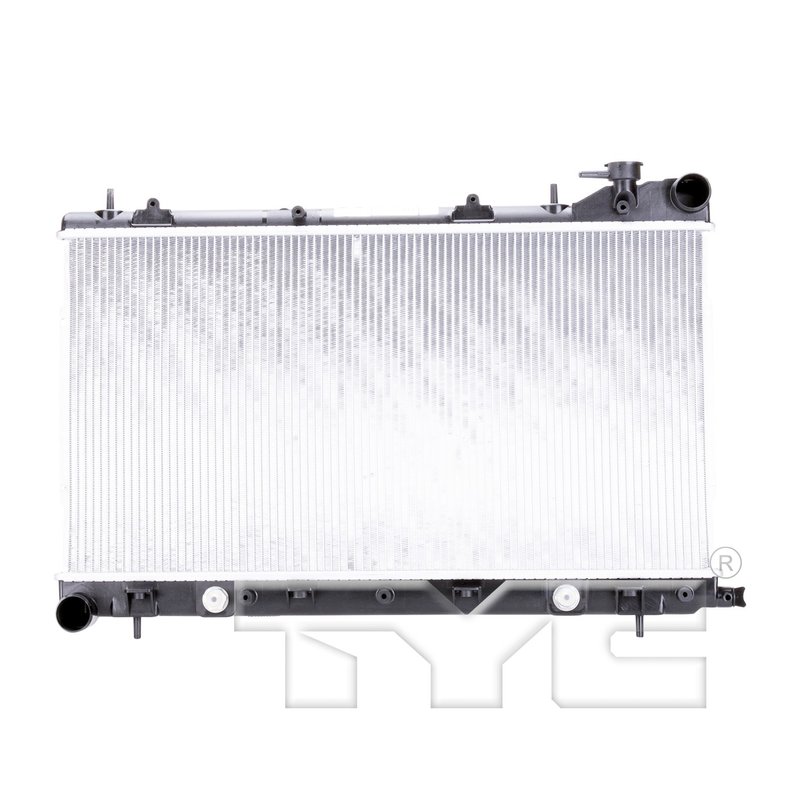

TYC 13021 Radiator

Overview of TYC Radiator 13021 for Subaru Forester

The TYC Radiator 13021 is engineered specifically for Subaru Forester models, providing reliable cooling performance. Designed with durable aluminum core and plastic tanks, this radiator supports efficient engine temperature regulation under various driving conditions.

• Core material constructed from lightweight aluminum for effective heat dissipation
• Plastic tank material designed for corrosion resistance and durability
• Concentric transmission oil cooler integrated with 14.76-inch fitting distance
• Downflow core flow configuration for optimized coolant circulation
• Core dimensions: 14.21 inches height, 27.95 inches length, and 0.63 inches thickness
• Inlet and outlet diameters both 1.56 inches with hose clamp fitting design
• Single-row core with 0.25-inch fin height for balanced cooling efficiency
• Transmission oil cooler outlet diameter of 0.39 inches with hose clamp fittings

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. The TYC Radiator 13021 is part of this line, offering a balance of performance and durability through its aluminum core and plastic tank construction. This line is designed to provide reliable heat exchange and maintain optimal engine temperatures for vehicles like the Subaru Forester.

Technical Description and Specifications

This radiator features a downflow core design that promotes efficient coolant flow from top to bottom, enhancing heat transfer. The aluminum core measures 14.21 inches in height, 27.95 inches in length, and 0.63 inches in thickness, providing a robust surface area for cooling. The single-row core with 0.25-inch fin height supports effective airflow and heat dissipation. Both inlet and outlet ports have a diameter of 1.56 inches and utilize hose clamp fittings for secure hose connections. The integrated concentric transmission oil cooler has fittings spaced 14.76 inches apart, with a 0.39-inch outlet diameter, also secured by hose clamps. The plastic tanks offer resistance to corrosion and contribute to the radiator’s overall lightweight design.

Compatible Applications and Common Issues Addressed

• Replacement radiator for Subaru Forester models requiring an aluminum core cooling solution
• Resolves overheating issues caused by damaged or inefficient radiators
• Addresses coolant leaks from cracked or worn plastic tanks
• Improves transmission fluid cooling with integrated concentric oil cooler
• Restores proper coolant flow and engine temperature regulation

Installation Notes and Tips

Ensure all hoses and clamps are properly secured to the 1.56-inch inlet and outlet fittings to prevent leaks. Verify the transmission oil cooler connections match the concentric design with 14.76-inch fitting spacing. It is recommended to flush the cooling system before installation to remove debris and contaminants. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

The TYC Radiator 13021 is manufactured to meet industry standards for durability and performance. The aluminum core and plastic tank construction provide corrosion resistance and long service life. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliability in automotive cooling applications.
