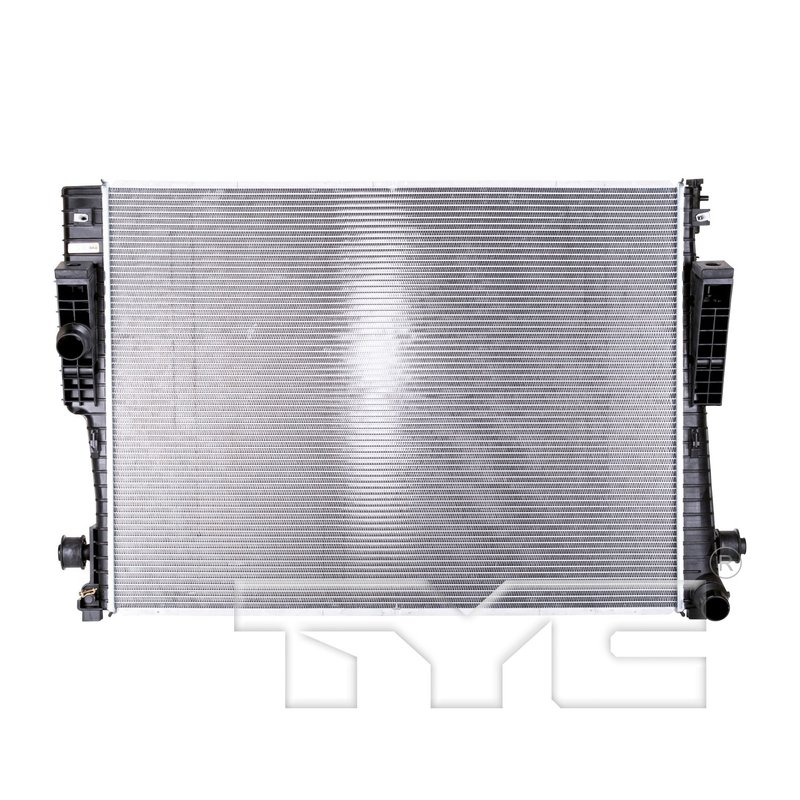

TYC 13022 Radiator

Overview of TYC Radiator 13022 for Ford Super Duty Trucks

The TYC Radiator 13022 is engineered specifically for Ford F-250 Super Duty and F-350 Super Duty models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine cooling and transmission performance.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Quick connect (spring lock) inlet and outlet connections with 1.83-inch diameter
• Core dimensions: 27.48 inches height, 37.01 inches length, and 2.68 inches thickness
• High fin density with 53 fins every 4 inches and total 70 fin rows
• Single-row tube design with 69 total tubes and 10 tubes every 4 inches
• Compatible with Ford F-250 Super Duty and F-350 Super Duty trucks

Detailed Features of the TYC Radiator 13022

This radiator features an aluminum core that provides reliable heat transfer to maintain optimal engine temperature. The crossflow design improves coolant flow efficiency, reducing the risk of overheating during heavy-duty operation. The integrated plate-type transmission oil cooler supports transmission fluid temperature regulation, which is critical for the longevity of the transmission system. Both inlet and outlet connections utilize quick connect spring lock fittings with a 1.83-inch diameter, facilitating straightforward installation and secure hose attachment. The core’s dimensions and fin count are optimized to maximize cooling surface area while maintaining structural integrity.

About the TYC Radiator Product Line

The TYC Radiator line focuses on delivering replacement radiators that meet or exceed OEM specifications. This product line emphasizes durable materials and precise fitment for specific vehicle applications. The TYC Radiator 13022 is part of this line, designed to provide reliable cooling performance for Ford Super Duty trucks, ensuring compatibility and durability under demanding conditions.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Ford F-250 Super Duty and F-350 Super Duty
• Solves overheating issues caused by inefficient or clogged radiator cores
• Addresses transmission overheating by integrating a plate-type transmission oil cooler
• Restores proper coolant flow with crossflow design and high fin density
• Eliminates coolant leaks from worn or faulty quick connect fittings

Installation Notes and Tips

Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation. The quick connect spring lock fittings simplify hose connections but verify secure engagement to prevent leaks. Handle the aluminum core carefully to avoid damage to fins or tubes. It is recommended to inspect and replace coolant and transmission fluid during radiator installation for optimal system performance.

Quality Assurance and Warranty

TYC Radiator 13022 is manufactured to meet industry standards for durability and performance. The aluminum core and integrated transmission oil cooler are tested for reliability under typical operating conditions. Warranty information should be confirmed with the product documentation or supplier to ensure coverage details.
