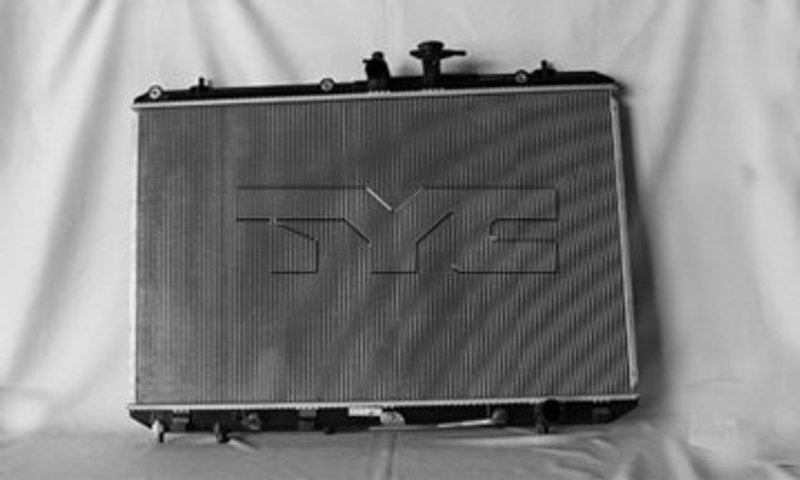

TYC 13024 Radiator
| Brand | TYC 13024 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x31.37 |
| Core Height (in) | 30.14 |
| Core Length (in) | 18.7 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.02x31.37 |
| Total Fin Row Count | 118 |
| Total Tube Count | 117 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 26x1.5 |
| Product line | TYC Radiator |
| Fits | Toyota · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Built with an integrated transmission oil cooler for added cooling capacity.
Hose clamp connections. Simplifies installation with common inlet and outlet fittings.
Cross-references APDI 8013024, CSF 2049 and DENSO 221-3146 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator 13024 for Toyota Highlander
TYC Radiator 13024 is a direct-fit radiator for select 2008-2010 Toyota Highlander models with tow package equipment. It combines an aluminum core with an integrated concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one assembly.
Built for the Toyota Highlander cooling system, this radiator is specified for the 2008, 2009, and 2010 model years and matches the OE-style layout used on tow package applications. The TYC Radiator line focuses on replacement cooling components with application-specific dimensions and connection points.
Key Features
- Fits 2008-2010 Toyota Highlander, N/A, w/ Tow Pkg; TYC Radiator
- TYC part number 13024
- Aluminum core construction
- Downflow flow configuration
- Integrated transmission oil cooler included
- Concentric oil cooler design
- Single-row core design
- Hose clamp inlet and outlet connections, 1.38 in. diameter
- Core dimensions: 30.14 in. height, 18.7 in. length, 1.02 in. thickness
Detailed Description
TYC 13024 is engineered as a radiator replacement for the Toyota Highlander cooling system on tow package vehicles. The aluminum core and downflow layout support heat transfer through the radiator assembly, while the built-in concentric transmission oil cooler adds fluid cooling capacity for automatic transmission applications. This configuration is important on vehicles that see added thermal load from towing.
This part cross-references Toyota 16041-31550 and Spectra Premium CU13024 for the same application. If you are searching for a Toyota Highlander radiator, radiator with transmission cooler, or TYC Radiator 13024 for 2008-2010 Toyota Highlander tow package models, this part matches the listed fitment and OE-style connection layout.
What It Helps Address
- Overheating caused by a worn or restricted radiator core
- Transmission fluid temperature buildup in tow package use
- Coolant leaks from aging radiator tanks or core joints
- Reduced cooling efficiency from damaged or corroded radiator passages
- Fitment issues when replacing the original Toyota Highlander radiator
Installation Notes and Tips
- Verify vehicle fitment by year, model, and tow package before installation.
- Confirm inlet and outlet hose sizes match the existing cooling system connections.
- Inspect transmission cooler line routing and fittings before reconnecting.
- Flush the cooling system and check for contamination before installing the new radiator.
- After installation, refill with the correct coolant and bleed air from the system according to service procedures.
Quality Assurance
TYC Radiator 13024 is built with application-specific dimensions and integrated cooler provisions for the listed Toyota Highlander fitment. The part number 13024 is matched to the specified tow package application for 2008-2010 Toyota Highlander models.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Toyota | Highlander | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; TYC Radiator |
| 2009 | Toyota | Highlander | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; TYC Radiator |
| 2008 | Toyota | Highlander | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; TYC Radiator |
